Installation Instructions - Altronix AL1002ULADA Installation Manual

Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/NFPA 72/ANSI, and with
all local codes and authorities having jurisdiction.
PRODUCT IS INTENDED FOR INDOOR DRY USE ONLY.
Carefully review:
Application Guide for AL602ULADA, AL802ULADA, AL1002ULADA
Power Supply Specifications
Stand-by Specifications
Output Programming Selection Table
Sync Mode Selection Table
Terminal Identification Table
LED Status Indication Table
1. AL1002ULADA: connect line (L) and neutral (N) terminals to a separate
unswitched AC circuit (120VAC, 60Hz) dedicated to the Fire Alarm System (Fig. 5 pg. 5).
R1002ULADA: Plug the grounded AC line cord (included) into the IEC 320 connector of the R1002ULADA
(Fig. 6, pg. 10). Plug unit into a reliable earth grounded socket located inside the rack enclosure. If different
line cord is used it has to be UL listed SVT type 18AWG, minimum 6' in length and min 60ºC temperature
rated. Do not connect to a receptacle controlled by a switch.
2. Measure output voltage before connecting devices.This helps avoiding potential damage.
3. Connect battery to the terminals marked [– BAT +] on the Power Supply Board (battery leads included).
Use two (2) 12VDC batteries connected in series.
Note: If batteries being used in your installation do not fit into the AL1002ULADA/R1002ULADA unit, it
is required to install a separate enclosure, UL Listed for appropriate application. Separate battery enclosure
is required to have 50 cubic inches of additional open space. All wiring methods shall be in accordance with
the National Electrical Code NFPA 70/NFPA 72/ANSI and with all local codes and authorities having
jurisdiction. Battery circuits are not power-limited; provide 0.25" spacing from power-limited circuits and
use separate knockout. If additional battery enclosure is required, it must be UL Listed for the application
and mounted within 5' of the AL1002ULADA enclosure in the same room; minimum 12 AWG wire in
appropriate conduit is required for connection. When using conduit, make sure it is installed in a matter
where it can not turn.
4. Set output selection switches marked [OUT1 through OUT4] to follow corresponding input [IN1 & IN2]
and desired output signal type (Output Programming Selection Table, pg. 5).
5. Connect FACP output to the desired AL800LGK9E logic board inputs, and notification appliances to the
desired AL800LGK9E logic board outputs (see Application Guide).
Note: The 2-wire horn/strobe sync mode will only synchronize horns, horn/strobes, strobes with
synchronization capability.
6. WARNING: Emergency control or non fire equipment cannot be connected on same circuitry as
fire alarm equipment.
Class A, Class B SW1 & SW2 Settings:
• For all Class B hookups SW1 and SW2 on the AL800LGK logic board must be turned OFF.
For all Class A hookups SW1 and SW2 on the AL800LGK logic board must be turned ON.
Function
Input to Output
Follower Mode
Temporal Code 3 Mode
Steady Mode
For the above modes DIP Switch 4 determines which Input controls the
corresponding output:
Switch 4 in the ON position causes output(s) to be controlled by Input 1.
Switch 4 in the OFF position causes output(s) to be controlled by Input 2.
NOTE: It is required to control visual notification appliances (strobes) via
Input 1 (IN1) and audible notification appliances (horns) via Input 2 (IN2).
This allows audible notification appliances (horns) and visual notification
appliances (strobes) to be silenced/ deactivated at same time.
AL1002ULADA / R1002ULADA

Installation Instructions:

Output Programming Selection Table:
Outputs must be programmed independently (OUT1 - OUT4)
Switch Positions
ON OFF
1 2, 3
3 1, 2
1, 2, 3
(pg. 3)
(pg. 3)
(pg. 5)
(pg. 5)
(pgs. 6 & 7)
(pg. 7)
Descriptions
Output follows signal it receives from the corresponding
input (i.e. FACP Sync module - maintains synchronization
of notification appliance circuit).
Enables Temporal Code 3 signal generation output.
This mode will accept a steady or a pulsing input.
A steady output signal will be generated.
This mode will accept steady or pulsing input.

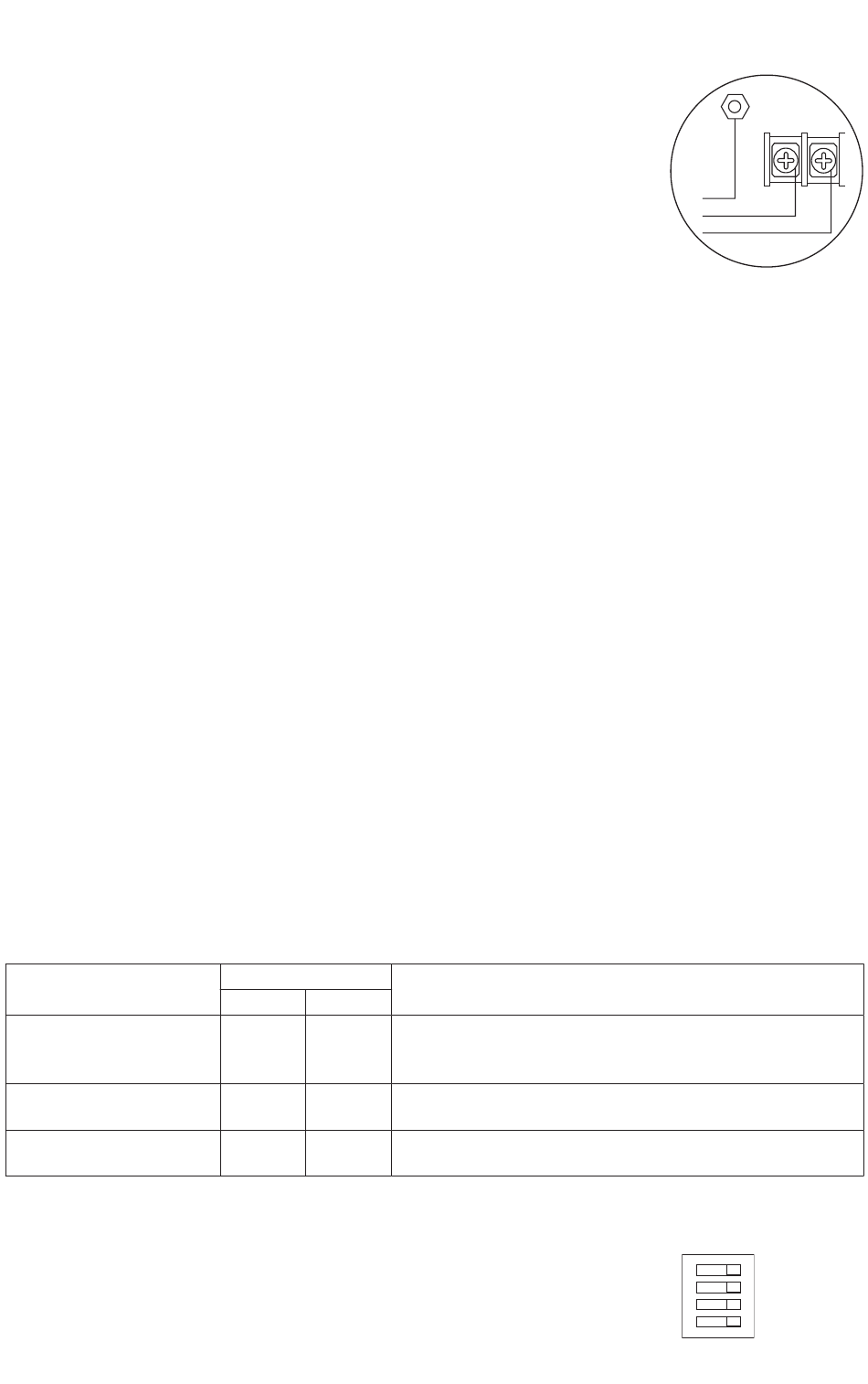

Fig. 5
ground
L N
line
neutral
AL800LGK9E Board
Output DIP Switches
INPUT SELECT
TEMPORAL
STROBE SYNC
IN>OUT SYNC
- 5 -
