NEC Power-Limited Wiring Requirements for R1002ULADA Models:
Power-limited and non power-limited circuit wiring must remain separated in the cabinet. All power-limited
circuit wiring must remain at least 0.25" away from any non power-limited circuit wiring. Furthermore, all
power-limited circuit wiring and non power-limited circuit wiring must enter and exit the cabinet through differ-
ent conduits. One such example of this is shown below. Your specific application may require different conduit
knockouts to be used. Any conduit knockouts may be used. For power- limited applications use of conduit is
optional. All field wiring connections must be made employing suitable gauge CM or FPL jacketed wire (or
equivalent substitute).
Optional battery enclosure must be mounted adjacent to the power supply via Class 1 wiring methods.
Note: Refer to wire handling drawing below for the proper way to install the CM or FPL jacketed wire
(Fig. 6a, pg. 9).

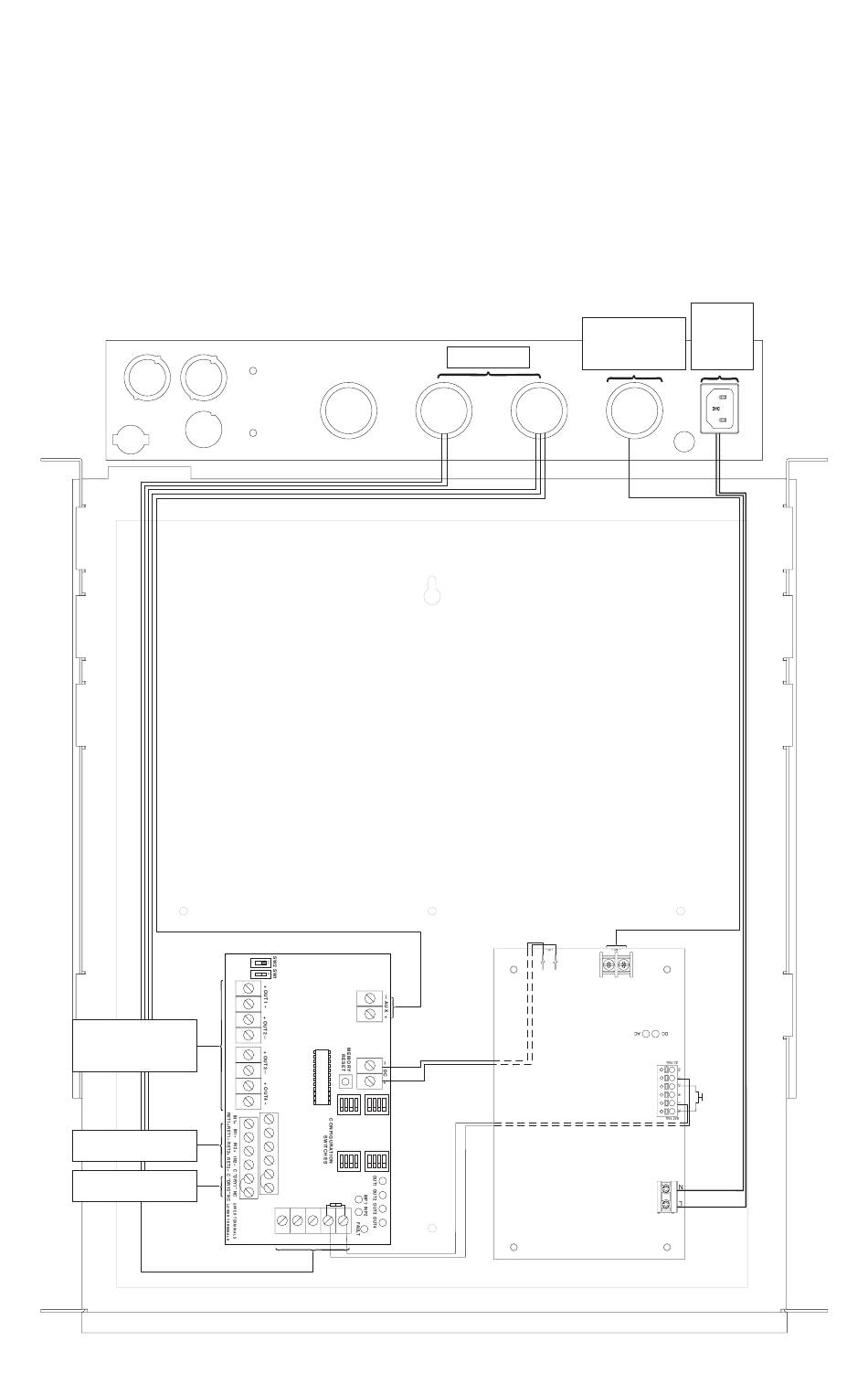

Fig. 7
Supervised
Power-Limited Outputs
2.5A per output in alarm
Supervised
Power-Limited
Non-Supervised
Power-Limited Class E
Non-Supervised Class E Power-Limited
- 10 -
Non-Supervised Class E Power-Limited
NC C NO C "FAULT" NC
Power-Limited
Power-Limited
115VAC
Input
Battery Connections
Non Power- Non Power-
Limited Limited
