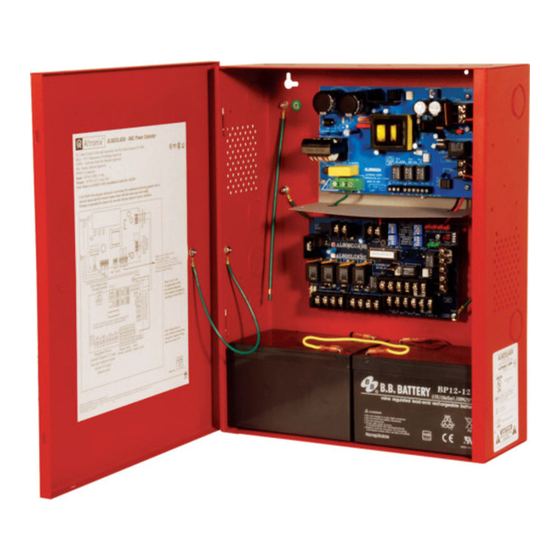

NAC Power Extenders
Models Include:
AL602ADA220
AL802ADA220
AL1002ADA220
NAC Power Extenders
Application Guide
(see Installation Guide for additional information)
More than just power.
Rev. 042209
TM
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
Advertisement
Related Manuals for Altronix AL602ADA220
Summary of Contents for Altronix AL602ADA220
- Page 1 NAC Power Extenders Models Include: AL602ADA220 AL802ADA220 AL1002ADA220 NAC Power Extenders Application Guide (see Installation Guide for additional information) More than just power. Rev. 042209 Installing Company: _______________ Service Rep. Name: __________________________________ Address: _____________________________________________ Phone #: __________________...
- Page 2 1. General Information (Use this in conjunction with respective Installation Guide): Altronix AL602ADA220, AL802ADA220 and AL1002ADA220 are very versatile devices. They can be used with or without specific synchronization modules provided by some manufacturers. Multiple units can be synchronized by using either the built-in sync mode or a external synchronization module. Please note, that only notification appliances with synchronization capabilities can be synchronized.
- Page 3 3. Non-synchronizable NAC Appliances: When using NAC appliances not designed to support synchronization feature, it is recommended to use separate output circuits for audible notification appliances (horns) and visual notification appliances (strobes). Set DIP switches for the visual notification appliances to follow Input 1 [IN1] and for audible notification appliances to follow Input 2 [IN2].
- Page 4 5. Synchronizing NAC Power Extender Using Built-in Sync Protocol: ® ® ® AL602/AL802/1002ADA220 have built-in protocols to support Amseco, Gentex , System Sensor , Wheelock two-wire synchronizable devices, therefore an external sync module is not required (Output Programming Selection Table, pg. 5). In these modes Input 1 is always used to activate visual notification appliances (strobes) and Input 2 is used to activate and silence audible notification appliances (strobes).
- Page 5 (horns) and visual notification appliances (strobes) to be silienced/ of Cooper Wheelock. deactivated at the same time. *Note: AL602ADA220, AL802ADA220 and AL1002ADA220 will only synchronize horns, horn/strobes and strobes that contain synchronization capability. The same synchronization mode must be selected for all outputs. 02 ADA220 Application Guide...
- Page 6 Notes: - 6 - 02 ADA220 Application Guide...
- Page 7 Notes: 02 ADA220 Application Guide - 7 -...
- Page 8 1.5” 4.615” (117.2mm) 4.615” (117.2mm) (38.1mm) (38.1mm) Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty MEMBER 02ADA220 Application Guide...
