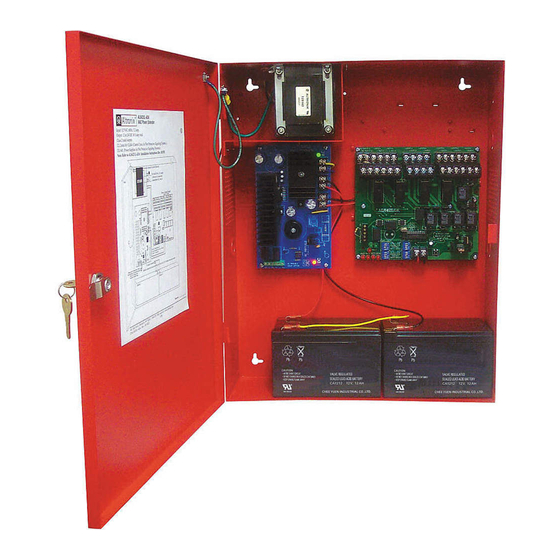

Altronix AL642ULADA Application Manual
  1. Manuals
  2. Brands
  3. Altronix Manuals
  4. Extender
  5. AL642ULADA
  6. Application manual

Altronix AL642ULADA Application Manual

Nac power extenders
Hide thumbs Also See for AL642ULADA:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
NAC Power Extenders
Models Include:
AL642ULADA
AL842ULADA
AL1042ULADA
Wall Mountable NAC Power Extenders
R1042ULADA
Rack Mountable NAC Power Extender
Application Guide
(see Installation Guide for additional information)
Altronix Corp.
140 58th St. Brooklyn, NY
More than just power.
Rev. 062420
TM
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________

Advertisement

loading
Need help?

Need help?

Do you have a question about the AL642ULADA and is the answer not in the manual?

Questions and answers

Related Manuals for Altronix AL642ULADA

Summary of Contents for Altronix AL642ULADA

  • Page 1 NAC Power Extenders Models Include: AL642ULADA AL842ULADA AL1042ULADA Wall Mountable NAC Power Extenders R1042ULADA Rack Mountable NAC Power Extender Application Guide (see Installation Guide for additional information) Altronix Corp. 140 58th St. Brooklyn, NY More than just power. Rev. 062420 Installing Company: _______________ Service Rep.
  • Page 2 For Class A hookups loop starts on [– OUT +] (1 through 4), terminates on corresponding [– RET +]. For Class B, hookups loop starts on [– OUT +], terminates on 2.2K EOL (Altronix Model# AL-EOL22). Dry Contact Input Wiring Fig.
  • Page 3 3. Non-synchronizable NAC Appliances: When using NAC appliances not designed to support synchronization feature, it is recommended to use separate output circuits for audible notification appliances (horns) and visual notification appliances (strobes). Set DIP switches for the visual notification appliances to follow Input 1 [IN1] and for audible notification appliances to follow Input 2 [IN2].
  • Page 4 (strobes), and Input 2 is used to activate and silence audible notification appliances (strobes). Note: Input 1 has to be activated in all the configurations. Fig. 5a For continuous loop circuit use 2.2K EOL (Altronix Model# AL-EOL22). NAC Power Extender: DIP Switches set for desired Sync Protocol (ex. Gentex ®...
  • Page 5 6. Using Single FACP Output. When only one FACP output is available, you may connect both Input 1 and Input 2 to it. Wire [RET1 +] and [RET1 –] to [INP2 +] and [INP2 –]. Both Visual and Audible appliances will be activated simultaneously (Fig 6a). Fig.
  • Page 6 Output Programming Selection Table: Outputs must be programmed independently (OUT1 - OUT4) Switch Positions Function Descriptions Input to Output Output follows signal it receives from the corresponding input (i.e. FACP 2, 3 Follower Mode Sync module - maintains synchronization of notification appliance circuit). Temporal Enables Temporal Code 3 signal generation output.
  • Page 7 AL642/842/1042ULADA Enclosure Dimensions: 18” x 14.5” x 4.5” (457.2mm x 368.3mm x 114.3mm) 14.5” (368.3mm) 2.5” 2.5” 1.5” (38.1mm) 1.5” (38.1mm) (63.5mm) (63.5mm) 1.0” (25.4mm) 1.0” (25.4mm) 1.5” (38.1mm) 1.25” (31.75mm) 1.25” (31.75mm) 1.0” (25.4mm) 1.0” (25.4mm) 1.5” (38.1mm) 14.5” (368.3mm) 1.0”...
  • Page 8 26.5” 673.1mm 19” (482.6mm) 3.25” 82.3mm Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty 42ULADA Application Guide...
