Power Supply Specifications; Installation Instructions - Altronix AL802ULADA Installation Manual

AC Input:
Output:
Battery:
Stand-by/Alarm Current
Consumption:
EOL Resistor
(end of line):
Ground fault maximum
test impedance:
Stand-by Batteries
24VDC/7AH
24VDC/12AH
(use two (2) 12VDC batteries in series)
24VDC/36AH
Note: Unit is equipped with 1 amp max. auxiliary output: "AUX" will remain battery backed up during power
outage. For loads connected to "AUX" please refer to battery "Stand-by Specifications" above for ratings. When
loads are connected to "AUX" output during alarm condition, the remaining outputs may, not exceed 8 amp total
alarm current (example: AUX = 1 amp, outputs up to 7 amp).

Installation Instructions:

Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/NFPA 72/ANSI, and with all local
codes and authorities having jurisdiction.
Product is intended for indoor use only.
Carefully review:
Application Guide for AL602ULADA, AL802ULADA, AL1002ULADA

Power Supply Specifications

Stand-by Specifications
Output Programming Selection Table
Sync Mode Selection Table
Terminal Identification Table
LED Status Indication Table
1. Mount unit in the desired location. Mark and predrill holes in the wall to line up with the top two keyholes in the
enclosure. Install two upper fasteners and screws in the wall with the screw heads protruding. Place the enclosure's
upper keyholes over the two upper screws; level and secure. Mark the position of the lower two holes. Remove the
enclosure. Drill the lower holes and install two fasteners. Place the enclosure's upper keyholes over the two upper
screws. Install the two lower screws and make sure to tighten all screws (Enclosure Dimensions, pg. 12).
Secure enclosure to earth ground (Fig. 1, pg. 3).
2. Connect the line (L) and neutral (N) terminals to a separate unswitched AC circuit (120VAC, 60Hz)
dedicated to the Fire Alarm System.
3. Measure output voltage before connecting devices.This helps avoiding potential damage.
4. Connect battery to the terminals marked [+ BAT - -] on the Power Supply Board (battery leads included).
Use two (2) 12VDC batteries connected in series.
5. Set output selection switches marked [OUT1 through OUT4] to follow corresponding input [IN1 & IN2] and
desired output signal type (Output Programming Selection Table, pg. 4).
6. Connect FACP output to the desired AL800LGK9E logic board inputs, and notification appliances to the desired
AL800LGK9E logic board outputs (see Application Guide).
Note: The 2-wire horn/strobe sync mode will only synchronize horns, horn/strobes, strobes with
synchronization capability.
7. For connection of smoke detectors, digital dialer see Optional Hookup Diagram, pg. 7.
AL802ULADA
Power Supply Specifications:
120VAC 60Hz, 5 amp, supplied by a maximum 15 amp dedicated branch circuit.
Four (4) regulated supervised NAC output circuits, 24VDC, 2.5 amp maximum current.
One (1) aux. special application 24VDC power output circuit 1 amp, non-supervised
total output current must not exceed current 8 amp in Alarm Condition.
Use two (2) 12VDC / 12AH or two (2) 12VDC / 7AH batteries connected in series.
90mA/175mA
2.2K (2200 ohm), Altronix Model # AL-EOL22 (included).
1000 ohm.
Stand-by Specifications:
Stand-by Time Total Amp/Minutes Alarm Output Current Aux. Output
24 Hours
24 Hours
24 Hours
(pg. 3)
(pg. 3)
(pg. 4)
(pg. 4)
(pgs. 5-6)
(pg. 6)
8 amp/5 minutes
8 amp/5 minutes
8 amp/5 minutes
---
50mA
1 amp
ground
L N
line
neutral

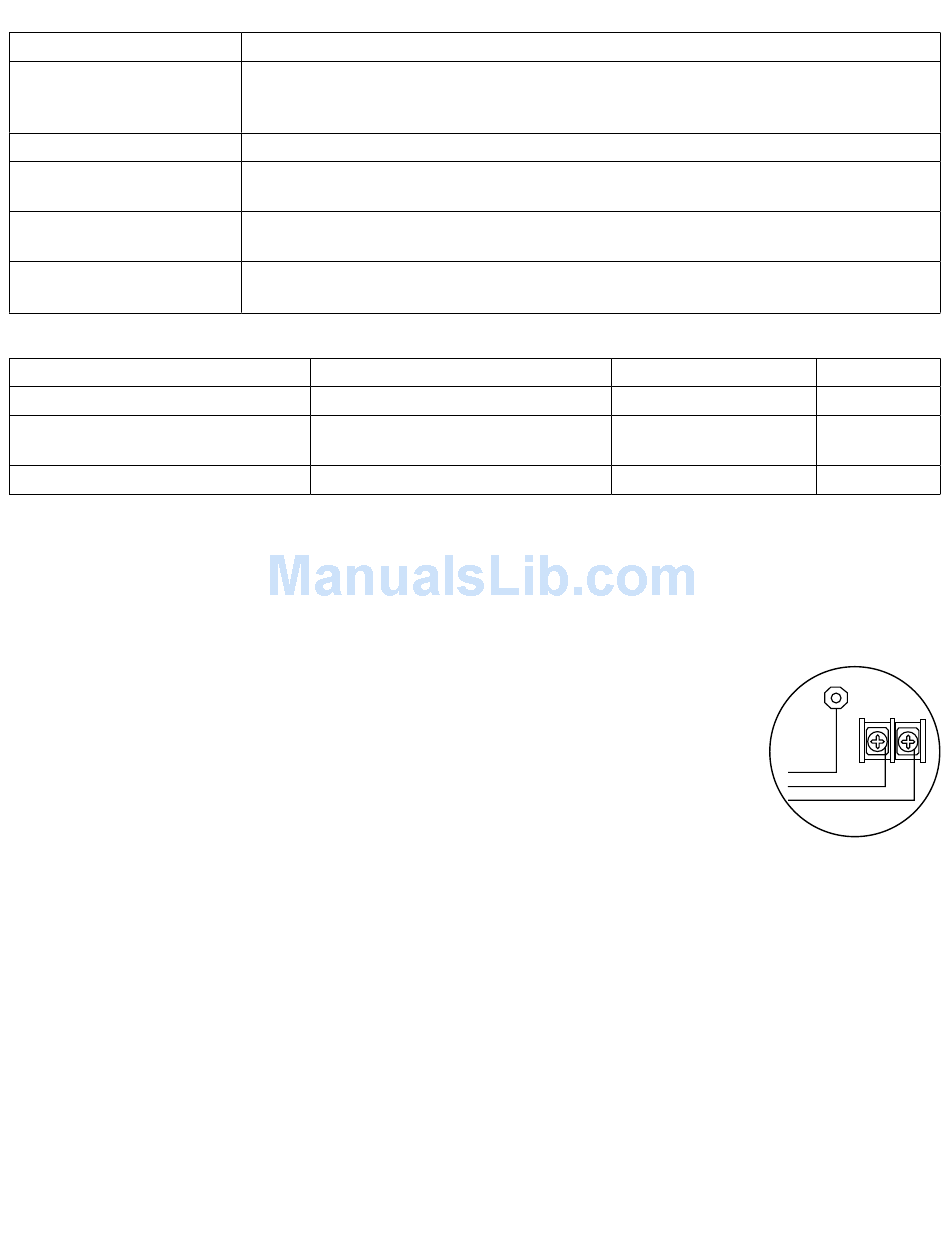

Fig. 1
- 3 -
