Page 1: Installation Guide
AL1002ULADAJ NAC Power Extender Installation Guide (see Application Guide for additional information) Altronix Corp. 140 58th St. Brooklyn, NY More than just power. Rev. 101413... -
Page 2: Specifications

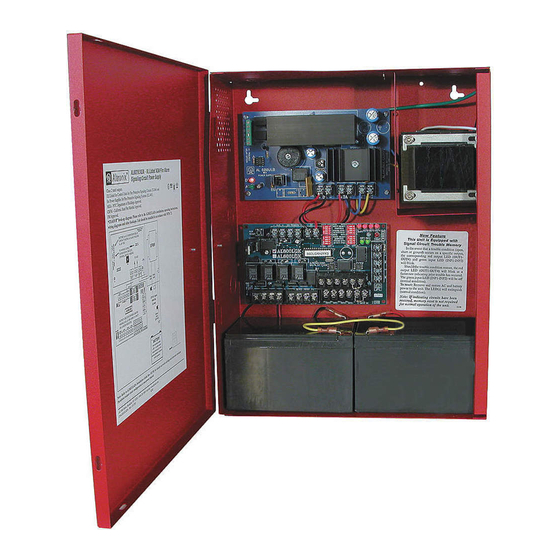

Overview: Altronix AL1002ULADAJ is an extremely cost-effective 10A remote power supply/battery charger. It may be connected to any 12 or 24 volt Fire Alarm Control Panel (FACP). Primary applications include Notification Appliance Circuit (NAC such as strobes and horns) expansion support to meet ADA requirements. It also pro- vides auxiliary power to support system accessories. -
Page 3: Power Supply Specifications
Use two (2) 12VDC batteries connected in series. Note: If batteries being used in your installation do not fit into the AL1002ULADAJ unit, it is required to install a separate enclosure, UL Listed for appropriate application. Separate battery enclosure is required to have 50 cubic inches of additional open space. - Page 4 Cooper Wheelock. tion over a two-wire circuit while leaving strobes active. *Note: The AL1002ULADAJ will only synchronize horns, horn/strobes and strobes that contain synchronization capability. Contact signal manufacturer for more detailed info. The same synchronization mode must be selected for all outputs Note: It is required to control visual notification appliances (strobes) via Input 1 (IN1) and audible notification appliances (horns) via Input 2 (IN2).
- Page 5 For loads connected to “AUX” please refer to battery “Stand-by Specifications”, pg. 3 for ratings. When loads are connected to “AUX” output during alarm condition, the remaining outputs may not exceed 10A total alarm current (example: AUX = 1A, outputs up to 10A). AL1002ULADAJ - 5 -...
-
Page 6: Led Diagnostics
The green input LEDs will be off (normal condition). To reset the memory depress the reset button (Fig. 3c, pg. 8). The LED(s) will extinguish. Note: If indicating circuits have been restored, memory reset is not required for normal operation of the unit. - 6 - AL1002ULADAJ... - Page 7 NEC Power-Limited Wiring Requirements for AL1002ULADAJ Models: Power-limited and non power-limited circuit wiring must remain separated in the cabinet. All power-limited circuit wiring must remain at least 0.25” away from any non power-limited circuit wiring. Furthermore, all power-limited circuit wiring and non power-limited circuit wiring must enter and exit the cabinet through differ- ent conduits.
- Page 8 BAT FAIL AC FAIL - 8 - AL1002ULADAJ...
-
Page 9: Maintenance
Input fuse rating is 6.3A@ 250V, Output fuse rating is 15A @ 32V. Note: Maximum charging current is 1.5A. Note: Expected battery life is 5 years; however, it is recommended changing batteries in 4 years or less if needed. AL1002ULADAJ - 9 -... -
Page 10: Battery Calculation Worksheet
Current Current For each device use this formula: This column x This column = Equals Current per number of devices. Stand-by: 130mA 130mA AL1002ULADAJ (Current draw from battery) Alarm: 300mA 300mA AL1002 Current 130mA 300mA Auxiliary Devices Refer to device manual for current ratings. -
Page 11: Appendix A: Compatible Ul/Cul Listed Devices For Synchronization
Appendix A: Compatible UL/cUL Listed Devices for Synchronization A-1 Strobes, Horns, and Horn/Strobes Table A-1 below lists Strobes, Horns, and Horn/Strobes compatible with AL1002ULADAJ NAC outputs. Gentex: GCS24CR - UL GCCB24PCR / W - UL GEC24-15/75WR - UL GCS24CW - UL... - Page 12 Appendix A (cont’d): Compatible UL/cUL Listed Devices for Synchronization A-1 Strobes, Horns, and Horn/Strobes (cont’d) Table A-1 below lists Strobes, Horns, and Horn/Strobes compatible with AL1002ULADAJ NAC outputs. System Sensor: CHSR - UL P4R-SP - UL PC4RH-P - UL SPSCW - UL...
- Page 13 Appendix A (cont’d): Compatible UL/cUL Listed Devices for Synchronization A-1 Strobes, Horns, and Horn/Strobes (cont’d) Table A-1 below lists Strobes, Horns, and Horn/Strobes compatible with AL1002ULADAJ NAC outputs. Cooper/Wheelock: 50-241575W-FR - UL/cUL E70-24MCW-FN - UL/cUL ET90-24MCCH-FN - UL/cUL LSTW-A* - UL/cUL...
-
Page 14: Appendix B - Ul Listed Compatible Devices
Appendix B - UL Listed Compatible Devices B-1 Four (4) Wire Smoke Detectors Table B-1 below lists four (4) wire smoke detectors compatible with AL1002ULADAJ AUX output and Outputs 1-8 when programmed as AUX. System Sensor Max Stand-by Alarm Detector Type... - Page 15 Notes: AL1002ULADAJ - 15 -...
- Page 16 14.5” (368.3mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. MEMBER IIAL1002ULADAJ J12R - 16 -...
