Installation Manual
AL1042ULADA
NAC Power Extender
Installation Guide
(See Application Guide for additional information)
Rev. 071508X
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Altronix AL1042ULADA
Summary of Contents for Altronix AL1042ULADA
-
Page 1: Installation Guide

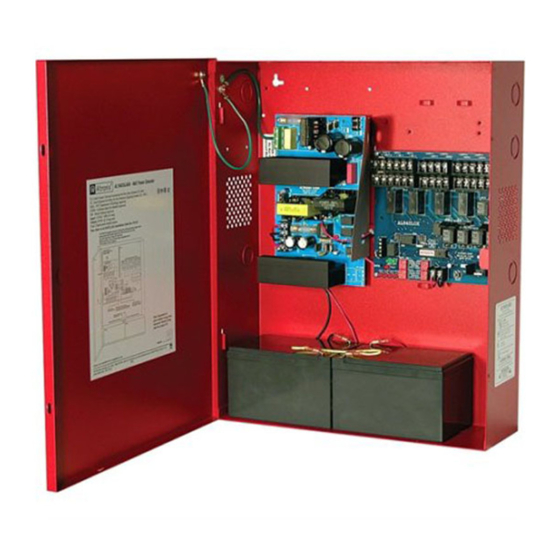

AL1042ULADA NAC Power Extender Installation Guide (See Application Guide for additional information) Rev. 071508X... - Page 2 AL1042ULADA - NAC Power Extender Overview: The Altronix AL1042ULADA is an extremely cost effective 10 amp remote power supply/battery charger. It may be con- nected to any 12 or 24 volt Fire Alarm Control Panel (FACP). Primary applications include Notification Appliance Circuit (NAC such as strobes and horns) expansion support to meet ADA requirements.
- Page 3 Use two (2) 12VDC / 12AH or two (2) 12VDC / 7AH Battery: batteries connected in series. Stand-by/Alarm Current 90mA/175mA Consumption: EOL Resistor (end of line): 2.2K (2200 ohm), Altronix Model # AL-EOL22 (included). Ground fault maximum 1000 ohm. test impedance: Stand-by Specifications: Stand-by Batteries Stand-by Time Total Amp/Minutes Alarm Output Current Aux.
