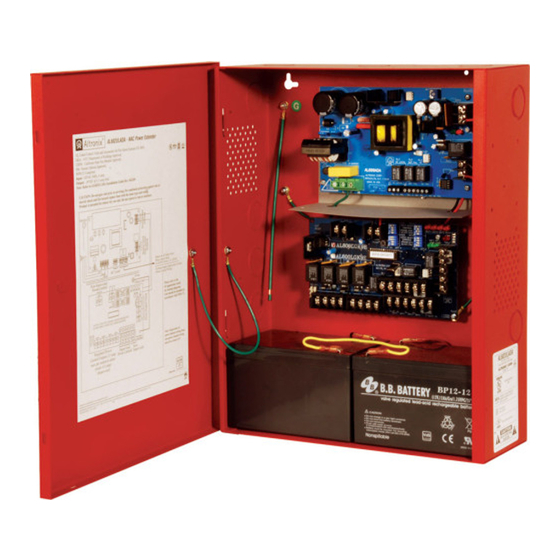

  • Page 1 AL602ULADA(J) AL802ULADA(J) AL1002ULADA(J) NAC Power Extenders Application Guide (See Installation Guide for additional information) Rev. 042010...
  • Page 2 1. General Information (Use this in conjunction with respective Installation Guide): Altronix AL602ULADA, AL602ULADAJ, AL802ULADA, AL802ULADAJ, AL1002ULADA and AL1002ULADAJ are very versatile devices. They can be used with or without specific synchronization modules provided by some manufacturers. Multiple units can be synchronized by using either the built-in sync mode or a external synchronization module.
  • Page 3 3. Non-synchronizable NAC Appliances: When using NAC appliances not designed to support synchronization feature, it is recommended to use separate out- put circuits for audible notification appliances (horns) and visual notification appliances (strobes). Set dip switches for the visual notification appliances to follow Input 1 [IN1] and for audible notification appliances to follow Input 2 [IN2]. This will allow, when using two (2) outputs from the FACP, to support silencing of audible notification appliances.
  • Page 4 C "DRY2" NC LOWER TERMINALS RET2-- C "DRY2" NC LOWER TERMINALS To EOL or next For continuous loop NAC Power Extender Control Circuit circuit use 2.2K EOL, (Altronix Model # No Notification Appliances AL-EOL22). Allowed FACP 2.2K 2.2K 2.2K 2.2K 2.2K 2.2K...
  • Page 5 6. Using a Single FACP Output: When only one FACP output is available, you may connect both Input1 and Input2 to it. Wire [RET1+ and RET1-] to [INP2+ and INP2-]. Both visual and audible notification appliances will be activated simultaneously (Fig. 6a). Fig.
  • Page 6 Output Programming Selection Table: Outputs must be programmed independently [OUT1 - OUT4] Switch Position Function Description Input to Output Output follows signal it receives from the corresponding input (i.e. FACP 2, 3 Follower Mode Sync module - maintains synchronization of notification appliance circuit. Temporal Code 3 Enables Temporal Code 3 signal generation output.
  • Page 7 Notes: 02ULADA Application Notes - 7 -...
