Altronix AL1002ULADA Installation Manual page 4

1. Mount the unit in the desired location. Mark and predrill holes in the wall to line up with the top two
keyholes in the enclosure. Install two upper fasteners and screws in the wall with the screw heads
protruding. Place the enclosure's upper keyholes over the two upper screws; level and secure. Mark the
position of the lower two holes. Remove the enclosure. Drill the lower holes and install two fasteners.
Place the enclosure's upper keyholes over the two upper screws. Install the two lower screws and make
sure to tighten all screws (Enclosure Dimensions, pg. 19).
Secure enclosure to earth ground (Fig. 5, pg. 5). Small terminal block wire gauges range from
16 AWG to 24 AWG, all others range from 14 AWG to 24 AWG.

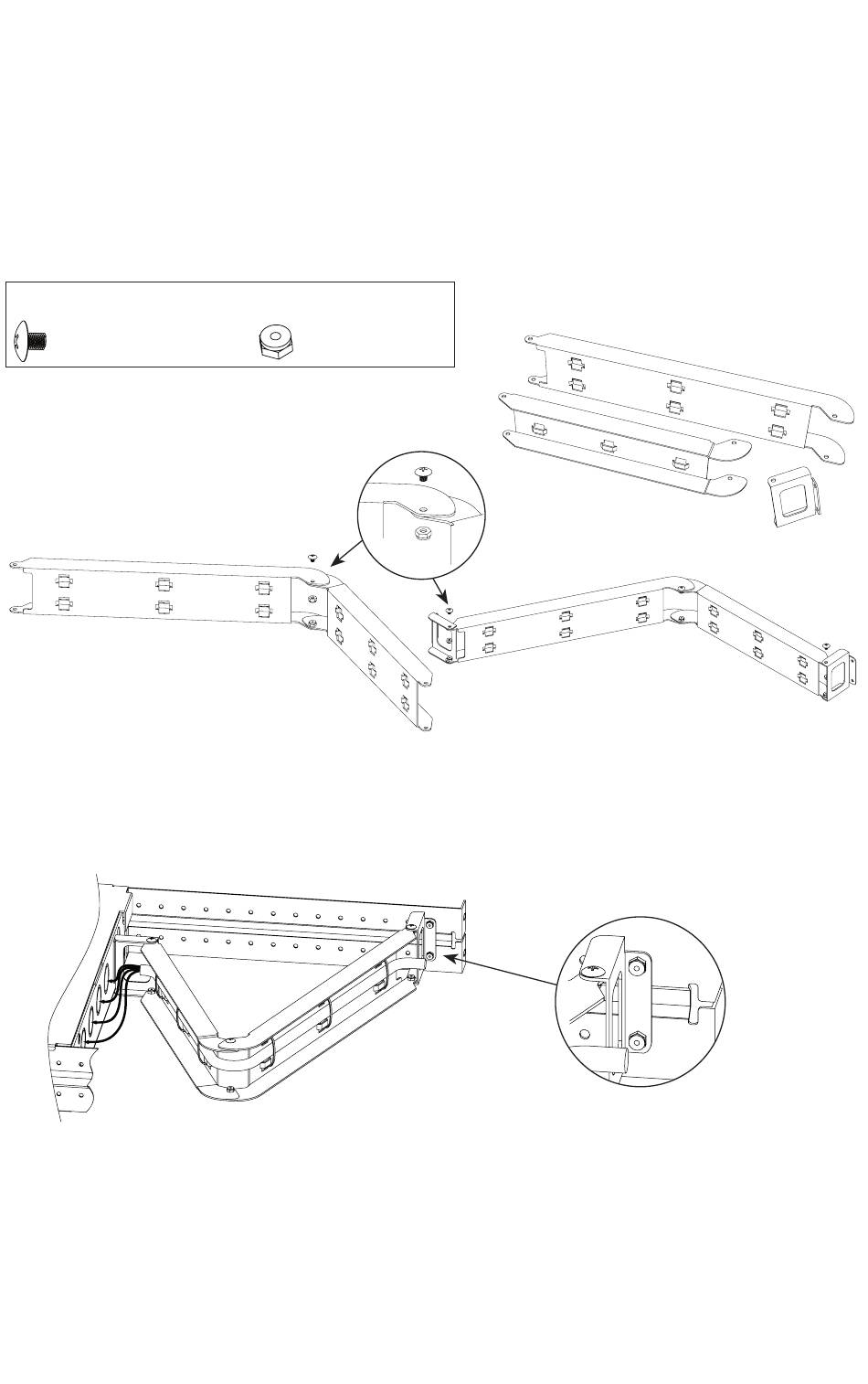

Altronix R1002ULADA enclosure includes Z Bracket, a convenient and reliable wire management accessory.
Hardware (included):
Ten (10) bolts and
1. Carefully unpack Z Bracket. Do not discard hardware
(included) (Fig. 3, pg. 4).
2. Attach arms to each other using bolts and
lock nuts (Fig. 3a, pg. 4).
3. Attach the hinge brackets to the ends of
arms using bolts and nuts positioning
them as shown on (Fig. 3b, pg. 4).
4. Make sure that all nuts are tightened.
Fig. 3a
5. Attach the hinge bracket on the longer side of Z Bracket to the adjustable slide using bolts and lock nuts
(included) (Fig. 4, 4a, pg. 4).
6. Attach the hinge bracket on the shorter side of Z Bracket to the rear of the rack enclosure using bolts
(included).
Fig. 4
- 4 -
Mounting AL1002ULADA:
Z Bracket Installation for R1002ULADA:
eight (8) lock nuts.
Two (2)
Fig. 3b
Fig. 4a
AL1002ULADA / R1002ULADA
Fig. 3
