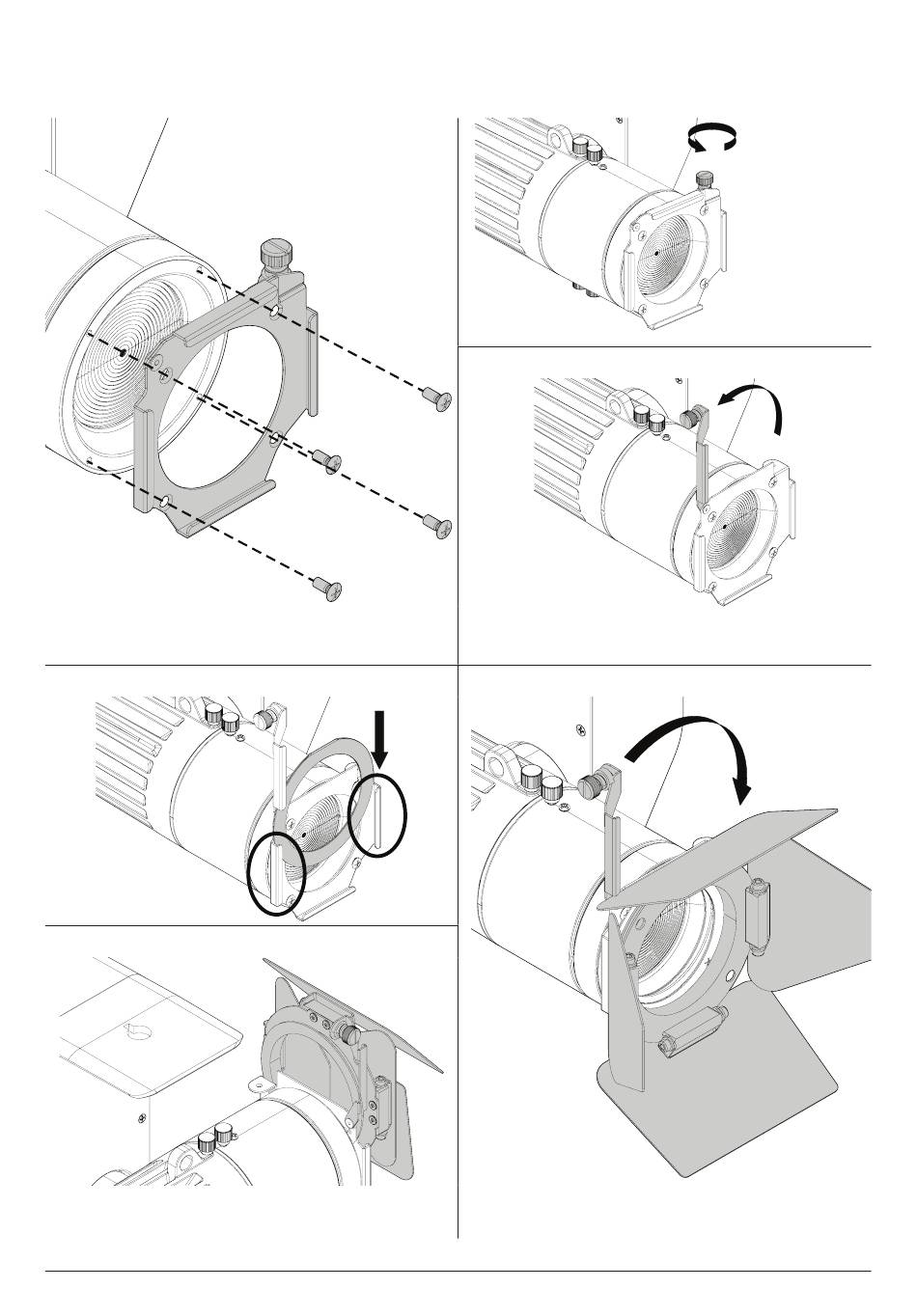

BARNDOOR AND FILTER FRAME (CODE ECLDISPBDNFFB - OPTIONAL)
1
Insert the filter frame mounting the four marked
screws into the holes provided on the optic.
4
5
Insert the holder from above throught the track
(4). Then insert the barn door (5).
PROLIGHTS - EclDisplay CC / EclDisplay CCFC
2
3
Rotate the marked knob of the filter frame (2) and
and move the marked rod upwards (3).
6
Move the marked rod down (6).
Fig. 09
15
