Summary of Contents for ProLights Jet Spot 120

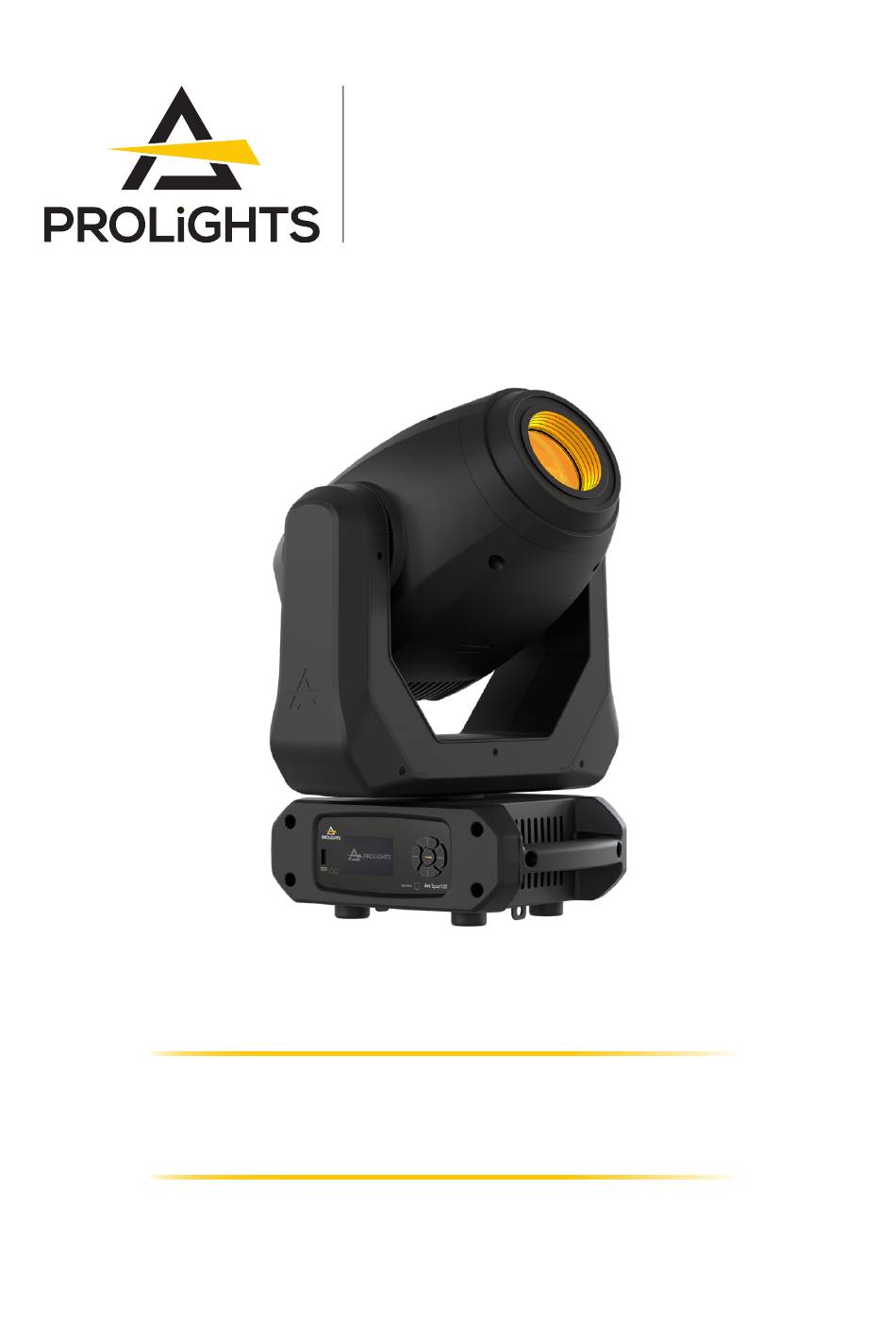

- Page 1 Jet Spot120 120W Spot Moving head, with 9° - 46° zoom USER MANUAL English version Rev.01 - 02/25 - Preliminary...
- Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.
- Page 3 UPDATE LINKED FIXTURES - ALL FIXTURES ..............40 23 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............41 REPLACING THE FUSE ....................41 VISUAL CHECK OF PRODUCT HOUSING ..............41 RESETTING THE MAINTENANCE TIME MESSAGE ............42 PROLIGHTS - Jet Spot120...
-
Page 4: Safety Information
• Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center. - Page 5 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
- Page 6 The products to which this manual refers comply with: • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD). • 2014/30/EU - Electromagnetic Compatibility (EMC). • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS). Other approvals PROLIGHTS - Jet Spot120...
-
Page 7: Package Content
Check the updated accessories list, description and informations of the product at the following link: https://www.prolights.it/product/JETSPOT120#accessories 2 - TECHNICAL DRAWING 179mm Ø337mm [7.0in] [13.3in] 340mm 205mm 307mm [13.4in] [8.1in] [12.1in] Fig. 01 Weight: 13,5 kg - 29,76 lbs PROLIGHTS - Jet Spot120... -
Page 8: Installation
Warning! When clamping the fixture to a truss or other structure at any angle, use clamps of half-cou- pler type. Do not use any type of clamp that does not completely encircle the structure when fastened. RSR1235B Steel security cable C6002 clamp OS24 PLUS Jet Spot120 Fig.02 PROLIGHTS - Jet Spot120... -
Page 9: Connection To The Mains Supply
• Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz). • The product is then ready for its operations and can be controlled through the available input sig- nals on board. • To disconnect power from the product, disconnect the Mains from the socket. PROLIGHTS - Jet Spot120... -
Page 10: Product Overview
6. MAIN FUSE HOLDER: replace a burnt-out fuse by one of the same type only (T3.15A 250V). 7. POWER IN: for connection to the Mains 100-240V~/50-60Hz. 8. POWER OUT: power output for connection of multiple units in series. Jet Spot120 Fig 03 PROLIGHTS - Jet Spot120... -
Page 11: Connection Of The Dmx Line
... . DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX512 Controller Fig. 05 - Example 20 DMX channels configuration PROLIGHTS - Jet Spot120... -
Page 12: Construction Of The Dmx Termination
2. Reach the addressing menu, then select the DMX ADDRESS settings. 3. Select the address from 1 to 512 using the navigation arrows/buttons and confirm by pressing ENTER. 4. Press Menu to exit and return to the Home screen. PROLIGHTS - Jet Spot120... -
Page 13: Control Panel
• Switch on the display using backup battery. Hold for 5s. • Switch off display by pressing button 4 for 5s while on being on Home screen. • USB port for Firmware Upgrade. PROLIGHTS - Jet Spot120... -
Page 14: Menu Structure
ASTRAWASH f miliy fixtures. SLOW HOME POSITION STANDARD Standard: Pan is at 90° to the display when Pan@128dmx value like all Prolights fixtures. CUSTOM Custom: Pan is at 0° to the display when Pan@128dmx value. 0° CUSTOM P DEGREE To choose pan values in case of Custom position. - Page 15 To set Gobo Wheel Movement scrolling mode. COUNTINUOUS TRANSFER WITHOUT DMX ADDRESS To transfer the same menu settings of one CONFIGURA- fixtures to all the other in the daisy chain, WITH DMX ADDRESS TION including or not the dmx address. PROLIGHTS - Jet Spot120...
- Page 16 ROT GOBO FIXED GOBO PRISM PRISM ROT FROST FOCUS ZOOM R. GOBO 1 FOCUS … R. GOBO 7 FOCUS R. GOBO 1 INDEX … R. GOBO 7 INDEX FIX. GOBO 1 FOCUS FIX. GOBO 10 FOCUS PROLIGHTS - Jet Spot120...
- Page 17 BASIC RELOAD YES/NO Default of all parameters excepted Cali- DEFAULT bration (both User and Factory) FACTORY RELOAD YES/NO Default of all parameters. User Calibra- tion parameters need to be overwritten by Factory calibration. Factory reload password: 050. PROLIGHTS - Jet Spot120...
- Page 18 ERROR MES- PAN, TILT... To see any error messages. SAGE DEVICE JETSPOT120 View informations about fixture model. LABEL RDM UID (READ) View ID for the RDM control. SOFTWARE 1U01 V1.0.00... View informations about software version. VERSION PROLIGHTS - Jet Spot120...
- Page 19 Directly flip display without enter inside menu power on Reset without pan/tilt Fixture will be powered on without reset on pan/tilt DOWN then power on movements movements ENTER + UP then Bootloader Force firmware upgrade power on PROLIGHTS - Jet Spot120...
-
Page 20: Rdm Functions
CURVE_DESCRIPTION 0x0344 Dimmer Settings OUTPUT_RESPONSE_TIME 0x0345 OUTPUT_RESPONSE_TIME_ DESCRIPTION 0x0346 MODULATION_FREQUENCY 0x0347 MODULATION_FREQUENCY_ DESCRIPTION 0x0348 DEVICE_HOURS 0x0400 LAMP_HOURS 0x0401 LAMP_STRIKES 0x0402 Power/Lamp LAMP_STATE 0x0403 Settings LAMP_MODE 0x0404 DEVICE_POWER_CYCLES 0x0405 BURN_IN 0x0440 DISPLAY_INVERT 0x0500 Display Settings DISPLAY_LEVEL 0x0501 PROLIGHTS - Jet Spot120... - Page 21 0-65535 0: No BASIC RELOAD 0x82C8 1: Yes 0: Hold DMX FAULT 0x82DD 1: Blackout DEFAULT: 300 MAINTENANCE TIME:ALERT PERIOD 0x82DF 10-300 DEFAULT: 0 MAINTENANCE TIME:ELAPSED TIME 0x82E0 ERROR MESSAGES 0x82EA 0-31 POWER CONSUMPTION(AC 220V) 0x82EF PROLIGHTS - Jet Spot120...
-
Page 22: Dmx Charts
Jet Spot120 Jet Spot120 Jet Spot120 Tilt movement range: 270° Pan movement range: 540° Pan = 0 Pan = 128 Pan = 255 Tilt = 42 Tilt = 42 Tilt = 42 Display Display Display Fig. 08 PROLIGHTS - Jet Spot120... - Page 23 DMX Chart Summary Channel STANDARD Pan fine Tilt Tilt fine Dimmer Dimmer Fine Shutter Color Wheel Rot Gobo Gobo Rot Gobo Rot Fine Fixed Gobo Prism Prism Rotation Frost Zoom Zoom Fine Focus Focus Fine Control PROLIGHTS - Jet Spot120...
- Page 24 Forest Green + CTO 3200K Color wheel CTO 3200K CTO 3200K + Deep Blue Deep Blue Deep Blue + Open Open Color Slot Open Dark Red Yellow Magenta Cyan Deep Orange Forest Green CTO 3200K Deep Blue PROLIGHTS - Jet Spot120...
- Page 25 No rotation Backwards rotation - Slow to fast Gobo Indexing Gobo index 0° - 360° Gobo Rotation Gobo Rot No rotation Forward gobo rotation - Fast to slow No rotation Backwards gobo rotation - Slow to fast PROLIGHTS - Jet Spot120...
- Page 26 Prism No Rotation Prism backwards rotation slow to fast Frost Lineary from 0% to 100% Zoom Lineary from Narrow to Wide Zoom Fine Fine Zoom Position Focus Lineary from Far to Near Focus Fine Fine Focus Position PROLIGHTS - Jet Spot120...
- Page 27 FLIP DISPLAY OFF FLIP DISPLAY AUTO KEY LOCK ON KEY LOCK OFF FAN MODE AUTO FAN MODE SILENT FAN MODE HIGH NO SIGNAL HOLD NO SIGNAL BLACKOUT DIMMER CURVE LINEAR DIMMER CURVE S-CURVE DIMMER CURVE SQUARE LAW PROLIGHTS - Jet Spot120...
- Page 28 INVERT ZOOM ON Control RESET ALL RESET PAN/TILT RESET PAN RESET TILT RESET COLOR RESET ROTATING GOBO RESET FIXED GOBO RESET ZOOM RESET FOCUS RESET PRISM RESET FROST RESET OTHER Reserved FACTORY DEFAULT OF CONTROL FUNCTIONS Reserved PROLIGHTS - Jet Spot120...
- Page 29 13 - FIXED GOBOS WHEEL Fig. 09 PROLIGHTS - Jet Spot120...
- Page 30 • Ø of image (ID)= 17 mm • Thinckness= up to 3 mm OD = Ø22.5 mm [0.9 in] Up to 3 mm [0.12 in] ATTENTION! Load with mirror surface toward the light source. Fig. 10 PROLIGHTS - Jet Spot120...
-
Page 31: Color Wheel
15 - COLOR WHEEL Fig. 11 PROLIGHTS - Jet Spot120... -
Page 32: Error Messages
Left air in blower for cooling the LED failed, the LED has ROR] been switched OFF. [RIGHT AIR IN FAN Right air in blower for cooling the LED failed, the LED has ERROR] been switched OFF. PROLIGHTS - Jet Spot120... - Page 33 Failure detected during the reset of the prism wheel rota- ERROR] tion, if the focus lens is not located in its default position. Failure detected during the reset of the frost, if the focus [FROST ERROR] lens is not located in its default position. PROLIGHTS - Jet Spot120...
- Page 34 IDENTIFICATION OF ELECTRONIC BOARDS 4U PCB 5U PCB 2U PCB 3U PCB 1U PCB Fig. 12 PROLIGHTS - Jet Spot120...
-
Page 35: Periodical Cleaning
Loosen and remove the marked screws and open- liquid for cleaning glass to remove the dirt ing the head covers (1) from both sides. from the reflectors, from the lenses and filters. Unclip the safety cable on both sides (2). Fig. 13 PROLIGHTS - Jet Spot120... -
Page 36: Gobos Replacement
Gently remove the gobo holder from the gobo wheel (3, 4). Remove the spring and the gobo (5, 6). NOTE: the mirrored part of the gobo must be placed in the direction of the LED Source Fig. 14 PROLIGHTS - Jet Spot120... - Page 37 Open the head covers (see the "PERIODICAL CLEANING" paragraph, point 1). Gently remove the frost filter pressing the metal plate as indicated in the figure (2). Now you can remove the frost filter and install JS120HF optional frost filter (3). Fig. 15 PROLIGHTS - Jet Spot120...
- Page 38 Gently remove the prism as indicated in the figure (2). Now you can install JS120P4F/JS120P5F optional prism (3). NOTE: pay attention to insert the clips of the prism as indicated by the arrow (A). Fig. 16 PROLIGHTS - Jet Spot120...
- Page 39 • Unscrew the two screws marked in the front view (marked B in drawing 2); • Raise the zoom and focus plates (marked C in drawing 2); • Pull out the plate with animation wheel and rotating gobo (2). g. 01 Fig. 17 PROLIGHTS - Jet Spot120...
- Page 40 • Select the files to be updated. To select the desired files, move with the UP and DOWN buttons and select the file by pressing ENTER (Figure 2); • The selected files will be shown with a yellow square, select "NEXT" pressing RIGHT button, then press ENTER to confirm. (Figure 2) Fig. 18 PROLIGHTS - Jet Spot120...
- Page 41 "START" pressing RIGHT button, then press ENTER to confirm. (Figure 1); • A screen with the progress of the update will appear (Figure 2), once update is completed the fixture will restart automatically and the update will be completed. PROLIGHTS - Jet Spot120...
- Page 42 UPDATE LINKED FIXTURES - ALL FIXTURES It is possible to update several Prolights fixtures from the Astra and Jet series at the same time. SELECT UPDATE DO NOT POWER OFF THIS FIXTURE Path: \FOLDER 2 LINKED FIXTURES ALL FIXTURES Progress:...
-
Page 43: Maintenance
WARNING: the use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel. - Page 44 • Check if the Fuse is intact and eventually replace it if fault necessary. • Contact the PROLIGHTS Service or authorized service partner. Do not remove parts and/or covers, or carry out any repairs or service that are not described in...
- Page 45 Note...
- Page 46 Note...
- Page 48 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
