- Page 1 DOTQPACK PORTABLE BATTERY-POWERED UPLIGHTER USER MANUAL...
- Page 2 In order to improve the quality of products, PROLIGHTS reserves the right to modify the characteristics stated in this instruction manual at any time and without prior notice.
-
Page 3: Table Of Contents
DOTQ TABLE OF CONTENTS Safety General instructions Warnings and installation precautions 1 Introduction 1. 1 Description 1. 2 Technical specifications 1. 3 Operating elements and connections 2 Installation 2. 1 Mounting 3 Functions and settings 3. 1 Operation 3. 2 Basic setup 3. -
Page 4: Safety
DOTQ WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it with cure for future reference. It contains important information about the installation, usage and maintenance of the unit. SAFETY General instruction • The products referred to in this manual conform to the European Community Directives and are there- fore marked with and approved for the North American Market. -
Page 5: Introduction

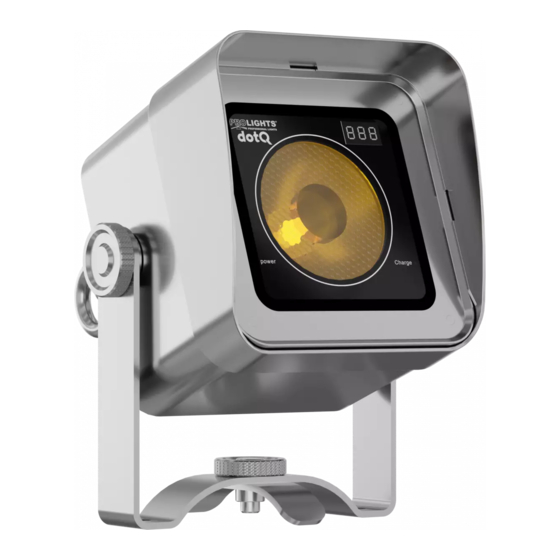

- 1 - INTRODUCTION 1.1 DESCRIPTION DOTQPACK is a bundle composed by 6pcs of DOTQ, IR remote controller, accessories and charger for the whole set - all included in a sturdy ABS case. DOTQ is an ultra-compact, wireless, battery, LED accent luminaire designed to complement uplighting both inside and outside a room. - Page 6 DOTQ • Body Color: Mirror finishing CONTROL • Protocols: DMX512, RDM • Dmx Channels:5/9 ch • Wireless connectivity: Included, LumenRadio CRMX receiver • Display: 3-Chars display • IR: IR remote controller for simple control, addressing and settings ELECTRONICS • Dimmer: Linear 0~100% electronic dimmer •...
-
Page 7: Operating Elements And Connections
DOTQ 1.3 OPERATING ELEMENTS AND CONNECTIONS Fig.2 1. KENSINGTON KEY hole 5. Adjustable foot support for tilt regulation 2. LOCKING KNOB for the mounting bracket. 6. ON/OFF touch button. 3. MOUNTING BRACKET 7. M12 threaded hole 4. POWER IN... -
Page 8: Installation
DOTQ - 2 - INSTALLATION 2.1 MOUNTING DOTQ may be set up on a solid and even surface. The mounting place must be of sufficient stability and be able to support a weight of 10 times of the unit’s weight. When carrying out any installation, always comply scrupulously with all the regulations (particularly re- garding safety) currently in force in the country in which the fixture’s being used. -
Page 9: Functions And Settings
DOTQ - 3 - FUNCTIONS AND SETTINGS 3.1 OPERATION Switch on the DOTQ with the power switch. The unit is ready for operation and can be operated via a DMX controller or it independently performs its show program in succession. After operation, switch off the unit with the power switch. -
Page 10: Recharge
NOTE - DOTQ’s battery life is up to 16 h in color change mode and up to 6h in full-on white. Charging time: up to 3h. 3.4 MENU To enter in the DOTQ’s menu, use the IR controller included in the DOTQPACK. With the IR controller you can: • Power ON/OFF the light •... - Page 11 DOTQ Turn on the light Auto mode Turn off the light. Confirm DMX address. Exit DMX addressing. Confirm RDM_ID. Exit RDM_ID. Press for 3 seconds to set a new Strobe ON/OFF. Dimmer UP. DMX address Press for 3 seconds to modify FLASH faster speed..
-
Page 12: Status Display
DOTQ 3.6 STATUS DISPLAY DOTQ has 3 status LEDs: Power LED for battery status, wireless LED for wireless connectivity status and Charge LED for recharge status. 2. Wireless Led 1. Power Led 3. Charge Led Fig. 6 1. Power LED 2. -
Page 13: Operation With Wifi
DOTQ 3.7 OPERATION WITH WIFI This mode allows you to wirelessly connect more DOTQ units, all managed through a unit Lumenradio transmitter (sold separately). DMX512 Controller Fig. 7 3.8 LUMENRADIO PAIRING AND RESET Pairing with a Lumenradio transmitter: Make sure that the fixtures Push the transmitter’s RED WIRELESS LED begins to flash When the connection is... -
Page 14: Dmx Channels
DOTQ 3.9 CHANNELS DMX FUNCTION Value DIMMER 0~100% 000 - 255 0~100% 000 - 255 GREEN 0~100% 000 - 255 BLUE 0~100% 000 - 255 WHITE 0~100% 000 - 255 MACRO Black ~ Yellow 000 - 255 FADING On Function 000 - 031 Color Function 032 - 095... -
Page 15: Maintenance
DOTQ - 4 - MAINTENANCE 4.1 MAINTENANCE AND CLEANING THE UNIT • Make sure the area below the installation place is free from unwanted persons during setup. • Switch off the unit, unplug the main cable and wait until the unit has cooled down. •...
