ProLights Astra Hybrid330 User Manual

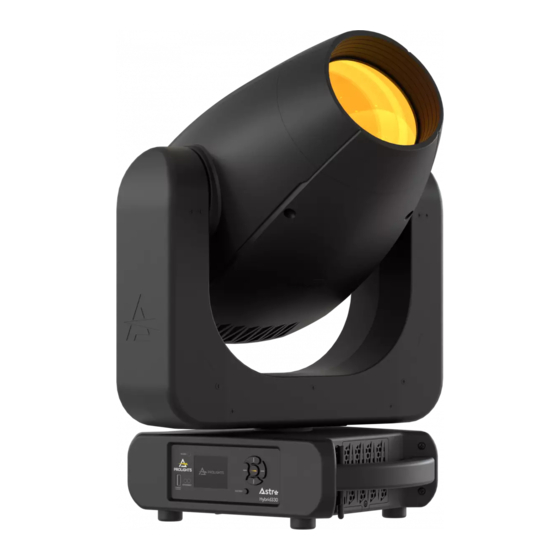

Ultra compact hybrid moving beam-spot, with a 330w led source
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Astra Hybrid330
Ultra compact hybrid moving beam-spot,
with a 330W LED Source
USER MANUAL
English version
REV.01-04/23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Astra Hybrid330 and is the answer not in the manual?

Questions and answers

Related Manuals for ProLights Astra Hybrid330

Summary of Contents for ProLights Astra Hybrid330

  • Page 1 Astra Hybrid330 Ultra compact hybrid moving beam-spot, with a 330W LED Source USER MANUAL English version REV.01-04/23...
  • Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.

  • Page 3: Table Of Contents

    19 - GOBOS REPLACEMENT 20 - MODULE REMOVAL (ANIMATION, COLOR, GOBOS WHEEL) 21 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............43 REPLACING THE FUSE ....................43 VISUAL CHECK OF PRODUCT HOUSING ..............43 TROUBLESHOOTING ..................... 44 PROLIGHTS - Astra Hybrid330...

  • Page 4: Safety Information

    • Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center. Installation •...
  • Page 5 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
  • Page 6 • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD). • 2014/30/EU - Electromagnetic Compatibility (EMC). • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS). • 2014/53/EU - Radio Equipment Directive (RED). Other approvals PROLIGHTS - Astra Hybrid330...

  • Page 7: Packaging

    • UPBOX2P5: firmware uploader kit, USB IN, 5-pin XLR DMX OUT. 2 - TECHNICAL DRAWING Ø243 mm Ø511 mm [9.6 in] [20.1 in] 411 mm 250 mm 436 mm [16.2 in] [9.8 in] [17.2 in] Fig. 01 Weight: 22 kg - 48,50 lbs PROLIGHTS - Astra Hybrid330...

  • Page 8: Pan And Tilt Lock

    3 - PAN AND TILT LOCK PAN Mechanism lock and release LOCK UNLOCK TILT Mechanism lock and release LOCK UNLOCK Fig. 02 PROLIGHTS - Astra Hybrid330...

  • Page 9: Installation

    Warning! When clamping the fixture to a truss or other structure at any angle, use clamps of half-cou- pler type. Do not use any type of clamp that does not completely encircle the structure when fastened. C6002 RSR1235A/B clamp Steel security cable OS24 108 mm [4.2 in] Fig.03 PROLIGHTS - Astra Hybrid330...

  • Page 10: Connection To The Mains Supply

    • Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz). • The product is then ready for its operations and can be controlled through the available input sig- nals on board. • To disconnect power from the product, disconnect the Mains from the socket. PROLIGHTS - Astra Hybrid330...

  • Page 11: Product Overview

    10. POWER OUT: power output for connection of multiple units in series. 11. POWER IN: for connection to the Mains 100-240V~/50-60Hz. 12. MAIN FUSE HOLDER: replace a burnt-out fuse by one of the same type only (T8A 250V). Fig 04 PROLIGHTS - Astra Hybrid330...

  • Page 12: Dmx Connection

    ... . DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX512 Controller Fig. 06 - Example 29 DMX channels configuration PROLIGHTS - Astra Hybrid330...

  • Page 13: Construction Of The Dmx Termination

    (Protocol, Net, Subnet, Universe, Start Channel and IP Address, Ethernet to DMX No/Yes). • IP addresses recommended: 002.xxx.xxx.xxx or 010.xxx.xxx.xxx. • The submask net is fixed at 255.0.0.0. PROLIGHTS - Astra Hybrid330...

  • Page 14: Ethernet To Dmx Operations

    NOTE: Artnet and sACN have higher priority on DMX if they are connected to transmitter. NOTE: Do not use IN TO WDMX and ETH TO DMX simultaneously, this will cause data conflict on DMX output signal. PROLIGHTS - Astra Hybrid330...

  • Page 15: Operation As A Wireless Receiver

    • The wireless icon on the receiver display indicates the received signal strength. WDMX TO DMX (RX) This function enable or disable the retransmission of the wireless DMX signal received throught the DMX port on the receiver side. PROLIGHTS - Astra Hybrid330...

  • Page 16: Control Panel

    • Switch off display by pressing button 4 for 5s while on being on Home screen. • LED indicator for Wireless dmx (color red and green). • LED indicator for Ethernet network.(color orange). • USB port for Firmware Upgrade. PROLIGHTS - Astra Hybrid330...

  • Page 17: Menu Structure

    ETHERNET TO DMX Enable / Disable DMX retras- mission from sACN/ArtNet sig- nal to DMX out port. SET UP SCREEN BACKLIGHT ON/10S/20S/30S Allows you to select the timing after that display will switch au- tomatically off when unactive. PROLIGHTS - Astra Hybrid330...
  • Page 18 SETTINGS COLOR WHEEL ON/OFF To set Gobo Wheel Movement BLACKOUT in blackout mode. STEP COLOR WHEEL MODE To set Color Wheel Movement scrolling mode. COUNTINUOUS GOBO WHEEL ON/OFF To set Gobo Wheel Movement BLACKOUT scrolling mode. PROLIGHTS - Astra Hybrid330...
  • Page 19 CALIBRA- PASSWORD TION ZOOM FOCUS GOBO 1 FOCUS … GOBO 8 FOCUS GOBO 1 INDEX … GOBO 8 INDEX … ENCODER RESET Clean values in encod- er pcb MANUAL For manual control of the unit. CONTROL PROLIGHTS - Astra Hybrid330...
  • Page 20 ERROR PAN, TILT... To see any error messages. MESSAGE FIXTURE XXXXXXXXXX View informations about fixture MODEL model. RDM UID (READ) View ID for the RDM control. SOFTWARE 1U01 V1.0.00... View informations about VERSION software version. PROLIGHTS - Astra Hybrid330...

  • Page 21: Shortcut

    Fixture will be powered on without reset on pan/tilt DOWN then power on movements movements ENTER + UP then Bootloader Force firmware upgrade power on RIGHT + ENTER inside EDIT RDM number EDIT RDM number RDM menu PROLIGHTS - Astra Hybrid330...

  • Page 22: Rdm Functions

    0x0140 DMX_FAIL_MODE 0x0141 DMX_STARTUP_MODE 0x0142 DIMMER_INFO 0x0340 MINIMUM_LEVEL 0x0341 MAXIMUM_LEVEL 0x0342 CURVE 0x0343 Dimmer Settings CURVE_DESCRIPTION 0x0344 OUTPUT_RESPONSE_TIME 0x0345 OUTPUT_RESPONSE_TIME_ DESCRIPTION 0x0346 MODULATION_FREQUENCY 0x0347 MODULATION_FREQUENCY_ DESCRIPTION 0x0348 SENSOR_DEFINITION 0x0200 SENSOR_VALUE 0x0201 Sensors RECORD_SENSORS 0x0202 BURN_IN 0x0440 PROLIGHTS - Astra Hybrid330...
  • Page 23 0x0641 LOCK_STATE_DESCRIPTION 0x0642 IDENTIFY_DEVICE 0x1000 RESET_DEVICE 0x1001 POWER_STATE 0x1010 PERFORM_SELFTEST 0x1020 SELF_TEST_DESCRIPTION 0x1021 CAPTURE_PRESET 0x1030 Control PRESET_PLAYBACK 0x1031 IDENTIFY_MODE 0x1040 PRESET_INFO 0x1041 PRESET_STATUS 0x1042 PRESET_MERGEMODE 0x1043 POWER_ON_SELF_TEST 0x1044 IPV4_CURRENT_ADDRESS 0x0705 IP & DNS Configuration IPV4_STATIC_ADDRESS 0x0706 PROLIGHTS - Astra Hybrid330...

  • Page 24: Dmx Charts

    Tilt = 128 Tilt = 255 Tilt movement range: 270° Pan movement range: 540 Pan = 0 Pan = 128 Pan = 255 Tilt = 80 Tilt = 80 Tilt = 80 Display Display Display Fig. 09 PROLIGHTS - Astra Hybrid330...
  • Page 25 Color Wheel 2 Color Wheel 3 Rot Gobo Gobo Rot Gobo Rot Fine Fixed Gobo Prism 1 Prism 1 Rotation Prism 2 Prism 2 Rotation Frost Zoom Zoom Fine Focus Focus Fine Animation Insertion Animation Rotation Control PROLIGHTS - Astra Hybrid330...
  • Page 26 HIGH CRI >90 + CTO 3200K CTO 3200K CTO 3200K + CTO 2400K CTO 2400K Color Wheel 1 CTO 2400K + CYAN CYAN Forward Spin From fast to slow Stop Stop Reverse Spin From slow to fast PROLIGHTS - Astra Hybrid330...
  • Page 27 Open + LIGHT GREEN LIGHT GREEN LIGHT GREEN + PINK PINK PINK + LIGHT ORANGE LIGHT ORANGE Color Wheel 3 LIGHT ORANGE + YELLOW YELLOW Forward Spin From fast to slow Stop Stop Reverse Spin From slow to fast PROLIGHTS - Astra Hybrid330...
  • Page 28 GOBO 8 from slow to fast Indexed Lineary from 0° to 360° Forward Spin From fast to slow Gobo Rot Stop Stop Reverse Spin From slow to fast Gobo Rot Lineary from 0° to 360° (Indexed) Fine PROLIGHTS - Astra Hybrid330...
  • Page 29 GOBO 11 from slow to fast Open Prism 1 Prism insert Indexed Lineary from 0° to 360° Forward Spin From fast to slow Prism 1 Stop Rotation Stop Reverse Spin From slow to fast Open Prism 2 Prism insert PROLIGHTS - Astra Hybrid330...
  • Page 30 COLOR WHEEL 3 BLACKOUT OFF (index) ROTATING GOBO WHEEL BLACKOUT ON (index) ROTATING GOBO WHEEL BLACKOUT OFF (index) FIXED GOBO WHEEL BLACKOUT ON (index) FIXED GOBO WHEEL BLACKOUT OFF (index) COLOR WHEEL 1 CONTINUOUS MOVEMENT (index) PROLIGHTS - Astra Hybrid330...
  • Page 31 DIMMER SPEED AUTO DIMMER SPEED FAST DIMMER SPEED MEDIUM DIMMER SPEED SLOW LED FREQUENCY 600HZ LED FREQUENCY 1200HZ LED FREQUENCY 2000HZ LED FREQUENCY 4000HZ LED FREQUENCY 6000HZ LED FREQUENCY 25KHZ LED FREQUENCY 50KHZ INVERT ZOOM OFF PROLIGHTS - Astra Hybrid330...
  • Page 32 RESET 8F PRISM RESET FROST RESET OTHER Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved PROLIGHTS - Astra Hybrid330...
  • Page 33 Channel Name Function Default STANDARD Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved FACTORY DEFAULT OF CONTROL FUNCTIONS PROLIGHTS - Astra Hybrid330...

  • Page 34: Fixed Gobos Wheel

    14 - FIXED GOBOS WHEEL Fig. 10 PROLIGHTS - Astra Hybrid330...

  • Page 35: Rotating Gobos Wheel

    • Ø of image (ID)= 16 mm • Thinckness= up to 3 mm Up to 3 mm OD = Ø20 mm [0.8 in] [0.12 in] ATTENTION! Load with mirror surface toward the light source. Fig. 10 PROLIGHTS - Astra Hybrid330...

  • Page 36: Color Wheel

    16 - COLOR WHEEL Fig. 11 PROLIGHTS - Astra Hybrid330...

  • Page 37: Animation Wheel

    17 - ANIMATION WHEEL Fig. 12 PROLIGHTS - Astra Hybrid330...

  • Page 38: Error Messages

    Fan PCB not detected. Right blower for cooling the lamp failed, the [LAMP RIGHT FAN ERROR] lamp has been switched OFF. Left blower for cooling the lamp failed, the [LAMP LEFT FAN ERROR] lamp has been switched OFF. PROLIGHTS - Astra Hybrid330...
  • Page 39 Failure detected during the reset of the 8F ef- [8F PRISM ERROR] fect prism, if this effect is not located in the de- fault position. PROLIGHTS - Astra Hybrid330...
  • Page 40 [SHUTTER 2 ERROR] SHUTTER, if this effect is not located in the de- fault position. Failure detected during the reset of spot filter, [SPOT FILTER ERROR] if the rotating gobos are not located in the de- fault positions. PROLIGHTS - Astra Hybrid330...
  • Page 41 IDENTIFICATION OF ELECTRONIC BOARDS 5U PCB 4U PCB LED DRIVER 2U PCB 1U PCB 3U PCB 5U PCB Fig. 13 PROLIGHTS - Astra Hybrid330...

  • Page 42: Periodical Cleaning

    AND TILT LOCK" paragrap (pag. 6). Loosen and remove the marked screws and opening the head covers (1) from both sides. Safety cable Unclip the safety cable on both sides (2). Fig. 14 PROLIGHTS - Astra Hybrid330...

  • Page 43: Gobos Replacement

    19 - GOBOS REPLACEMENT Open the head covers (see the "PERIODICAL CLEANING" paragraph, point 1). Gently remove the gobo holder from the gobo wheel (3, 4). Remove the spring and the gobo (5, 6). Fig. 15 PROLIGHTS - Astra Hybrid330...

  • Page 44: Module Removal (Animation, Color, Gobos Wheel)

    • Disconnect the two connectors, power and serial bus plugs (marked A in drawing 3); • Unscrew the two screws marked in the front view (marked A in drawing 2); • Pull out the plate with colors wheels and rotating gobo (marked B in drawing 2). PROLIGHTS - Astra Hybrid330...

  • Page 45: Maintenance

    WARNING: the use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel.

  • Page 46: Troubleshooting

    • Check if the Fuse is intact and eventually replace it if fault necessary. • Contact the PROLIGHTS Service or authorized service partner. Do not remove parts and/or covers, or carry out any repairs or service that are not described in...
  • Page 47 Note...
  • Page 48 Note...
  • Page 49 Note...
  • Page 50 Note...
  • Page 52 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
