3.5.3
Outputs 1 to 6

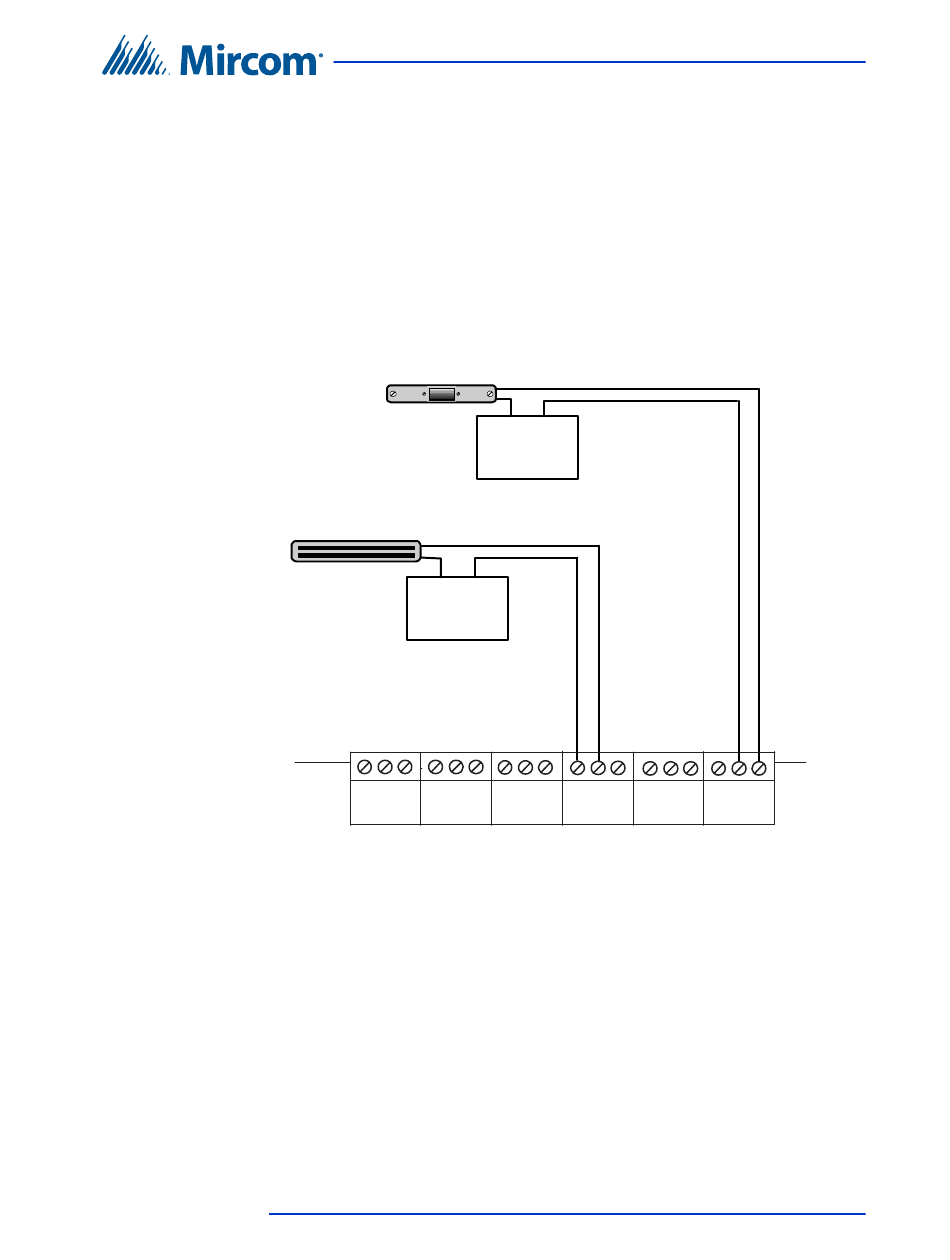

Outputs 1 to 6 are relay contact programmable outputs with the following
characteristics. Figure 21 shows a sample connection.
Figure 21. Controller Output Terminal Sample Connections
TX3-CX Card Access System Installation and Operation Manual
Version 5.2
LT-980
Copyright 2019
normally open (NO)
normally closed (NC) available
125 VAC / 2 A
30 VDC / 1 A
Door Strike 1
Maglock 1
External
power
supply
NC C NO NC C NO NC C NO NC C NO NC C NO NC C NO
OUTPUT 1
OUTPUT 2
Installation and Setup of the Card Access Controller
External
power
supply
Common
Normally
Common
Closed
OUTPUT 3
OUTPUT 4
OUTPUT 5
Normally
Open
OUTPUT 6
