Installing The Controller And Components; Figure 5 Controller Back Cover Dimensions And Optional Component Location - Mircom TX3 Series Installation And Operation Manual

3.2

Installing the Controller and Components

The Card Access Controller surface mounts with four screws as shown in
figure 5. The back cover is 12 inches wide by 14 inches long. The top two
mounting holes are 10 inches apart.
Figure 5.
3.2.1 Optional Components
Install the following optional components as required:
•
•
•
•
•
TX3-CX Card Access System Installation and Operation Manual
Version 5.2
LT-980 Copyright 2019
12"
10"

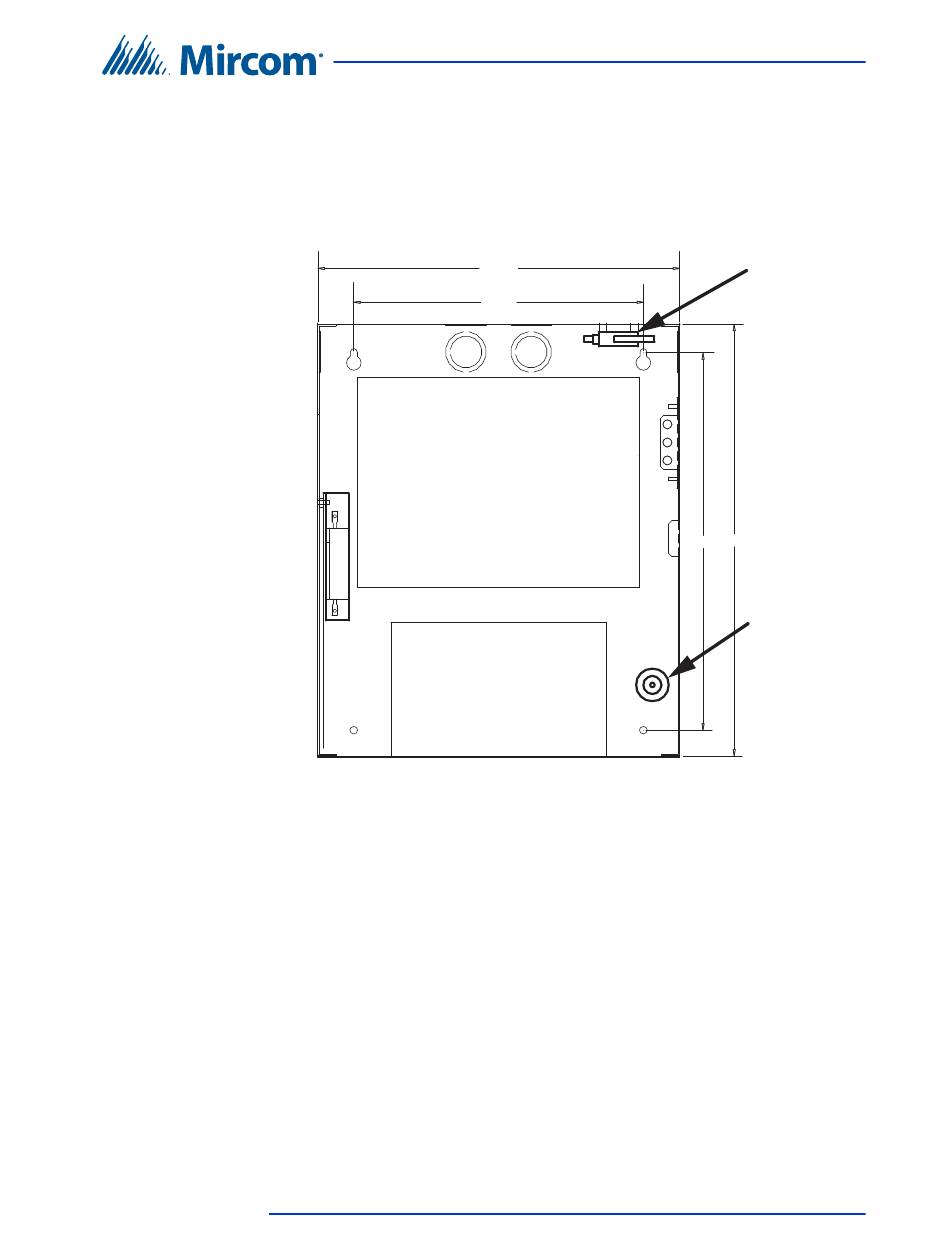

Controller Back Cover Dimensions and Optional Component
Location
Tamper switch
TX3-MDM Modem Module
TX3-IP IP Module (only for models that have "-A", "-B", or "-C" at the
end of their model names)
TX3-USB-AD Kit
Battery
Installation and Setup of the Card Access Controller
12.4"
Tamper Switch
14"
Ground Terminal
