3.2.5
Installing the TX3-IP Module
The optional TX3-IP IP Module kit comes with the IP Module which allows a
Card Access Controller to connect to an Ethernet TCP/IP network as a Master
Node. Install the IP Module in the location shown in figure 7. Secure the Module
into the location using the supplied four screws.
For additional documentation see the TX3-IP IP Module Installation
Instructions LT-1161.
Note:

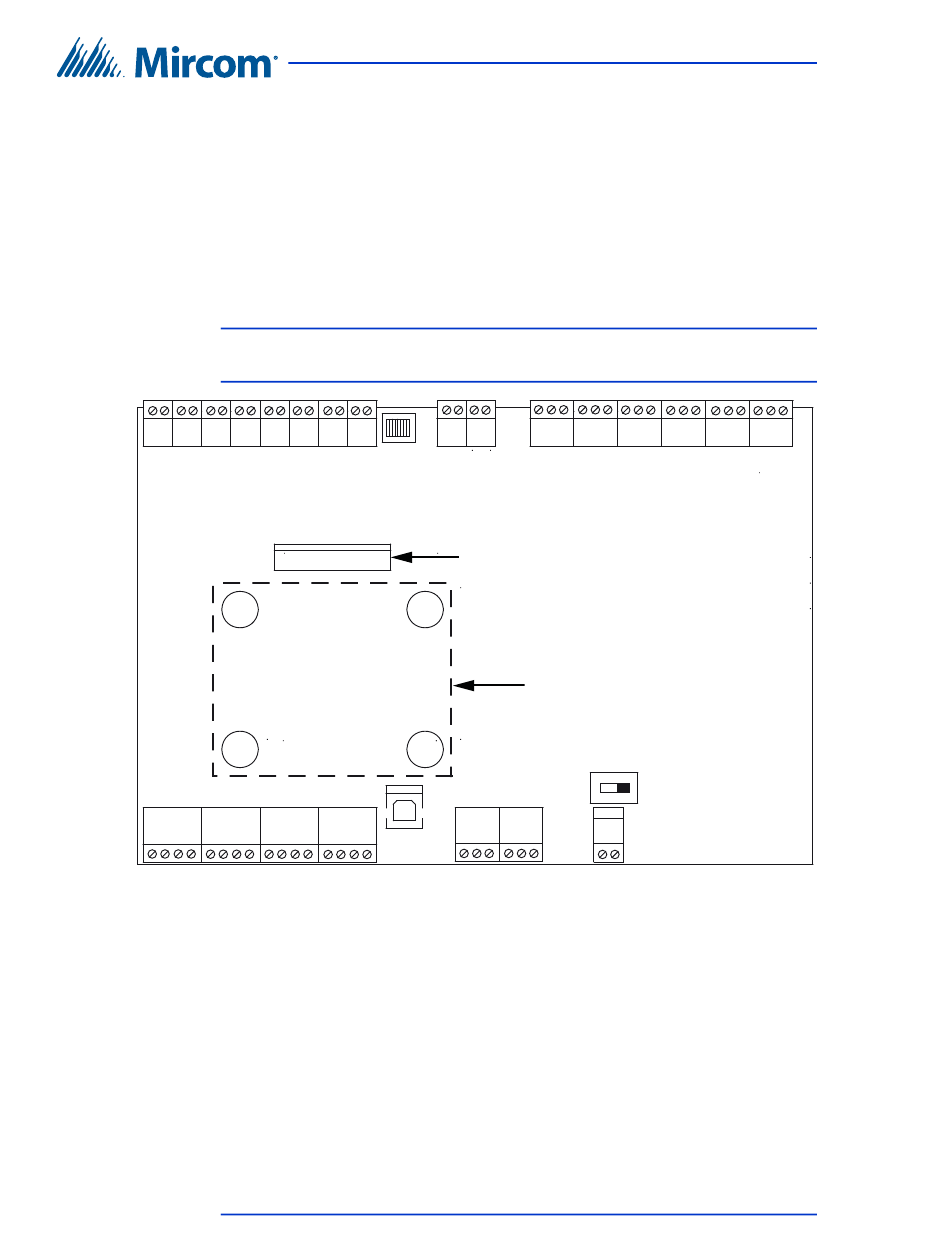

Figure 7.
30
TX3-CX Card Access System Installation and Operation Manual
LT-980
Copyright 2019
Installation and Setup of the Card Access Controller
The IP Module can only be installed on models that have "-A",
"-B", or "-C" at the end of their model names.
Interface connection
P4
IP Module Board Location
IP Module Board location
OFF
ON
SW1
Version 5.2
