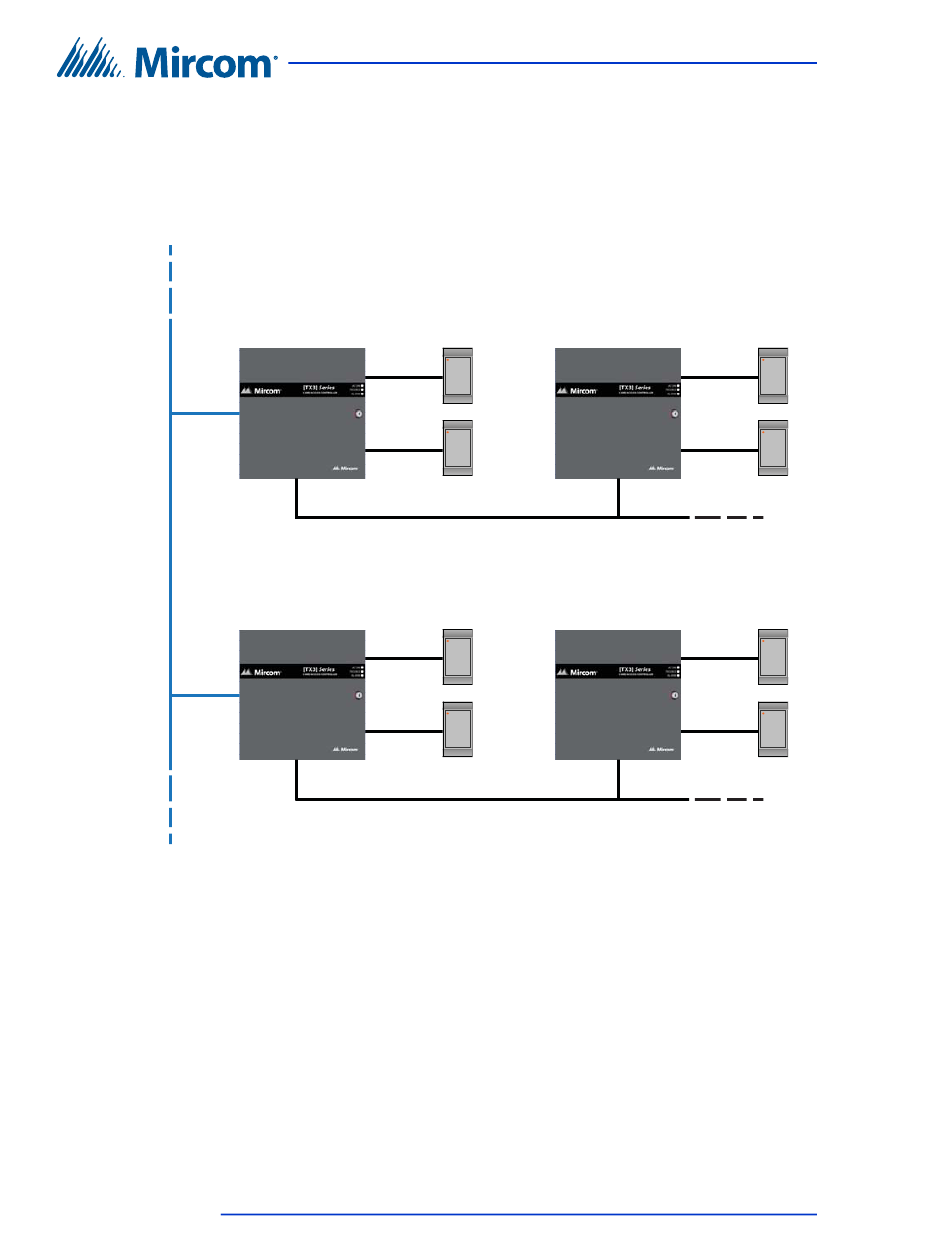

Figure 4 shows a Card Access System using an Ethernet network with RS-485
subnetworks. The Card Access Controllers connecting to a Master Node's
RS-485 subnetwork are Slave Nodes to the Master Node. Each RS-485
subnetwork can have up to 63 controllers connected to it; you can still have more
than 63 Master Nodes connected to the Ethernet network.
Ethernet Network
Figure 4.
10
TX3-CX Card Access System Installation and Operation Manual
LT-980
Copyright 2019
Card Access Controller
(Master Node)
Card Reader A
Card Reader B
RS-485 Subnetwork
Card Access Controller
(Master Node)
Card Reader A
Card Reader B
RS-485 Subnetwork
Card Access System using both Ethernet and RS-485
networks
Card Access Controller
(Slave Node)
Card Reader A
Card Reader B
Card Access Controller
(Slave Node)
Card Reader A
Card Reader B
