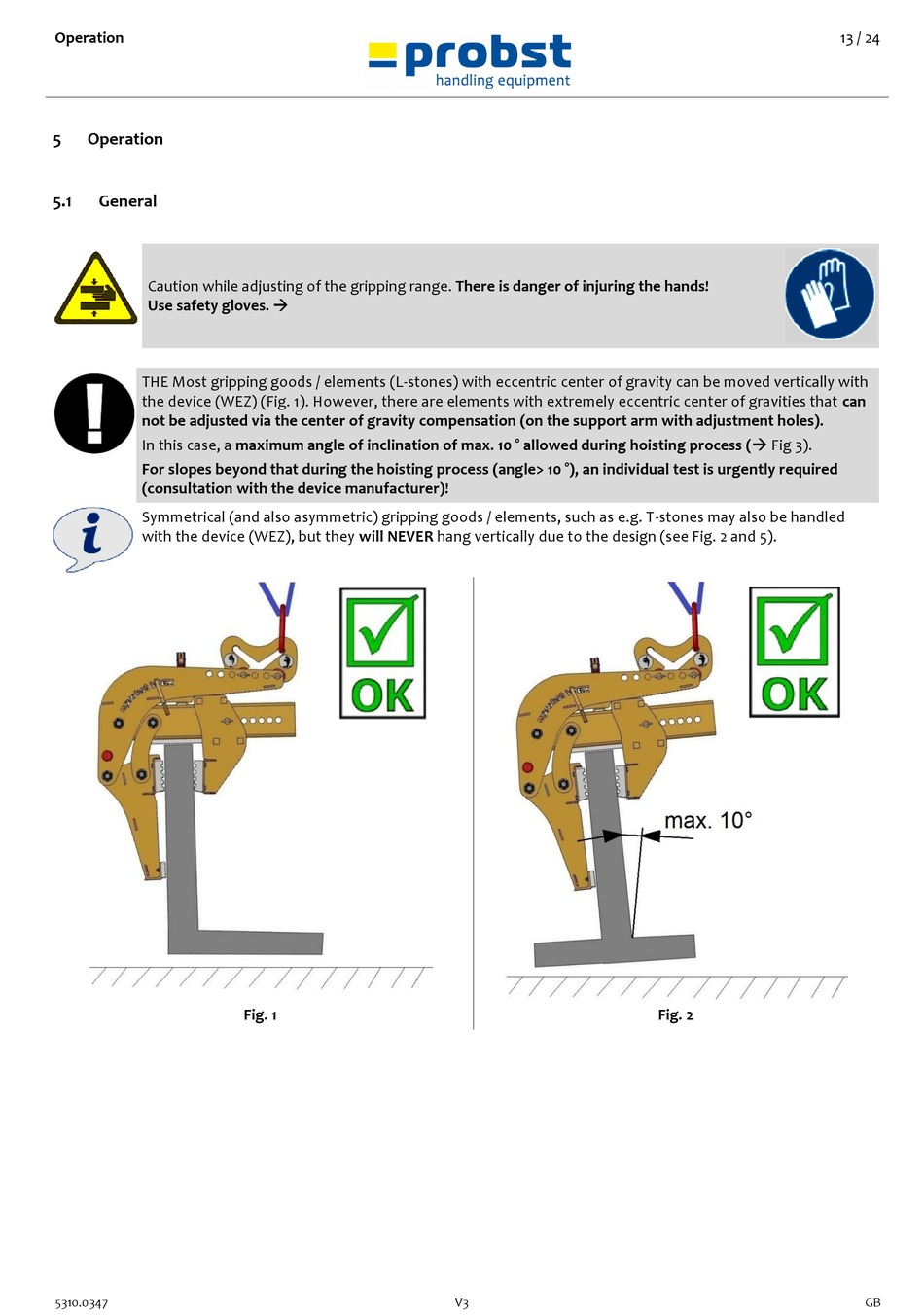

Operation

5 Operation
5.1

General

Caution while adjusting of the gripping range. There is danger of injuring the hands!
Use safety gloves. 
THE Most gripping goods / elements (L-stones) with eccentric center of gravity can be moved vertically with
the device (WEZ) (Fig. 1). However, there are elements with extremely eccentric center of gravities that can
not be adjusted via the center of gravity compensation (on the support arm with adjustment holes).
In this case, a maximum angle of inclination of max. 10 ° allowed during hoisting process ( Fig 3).
For slopes beyond that during the hoisting process (angle> 10 °), an individual test is urgently required
(consultation with the device manufacturer)!
Symmetrical (and also asymmetric) gripping goods / elements, such as e.g. T-stones may also be handled
with the device (WEZ), but they will NEVER hang vertically due to the design (see Fig. 2 and 5).
5310.0347
Fig. 1
V3
Fig. 2
