General
3.2

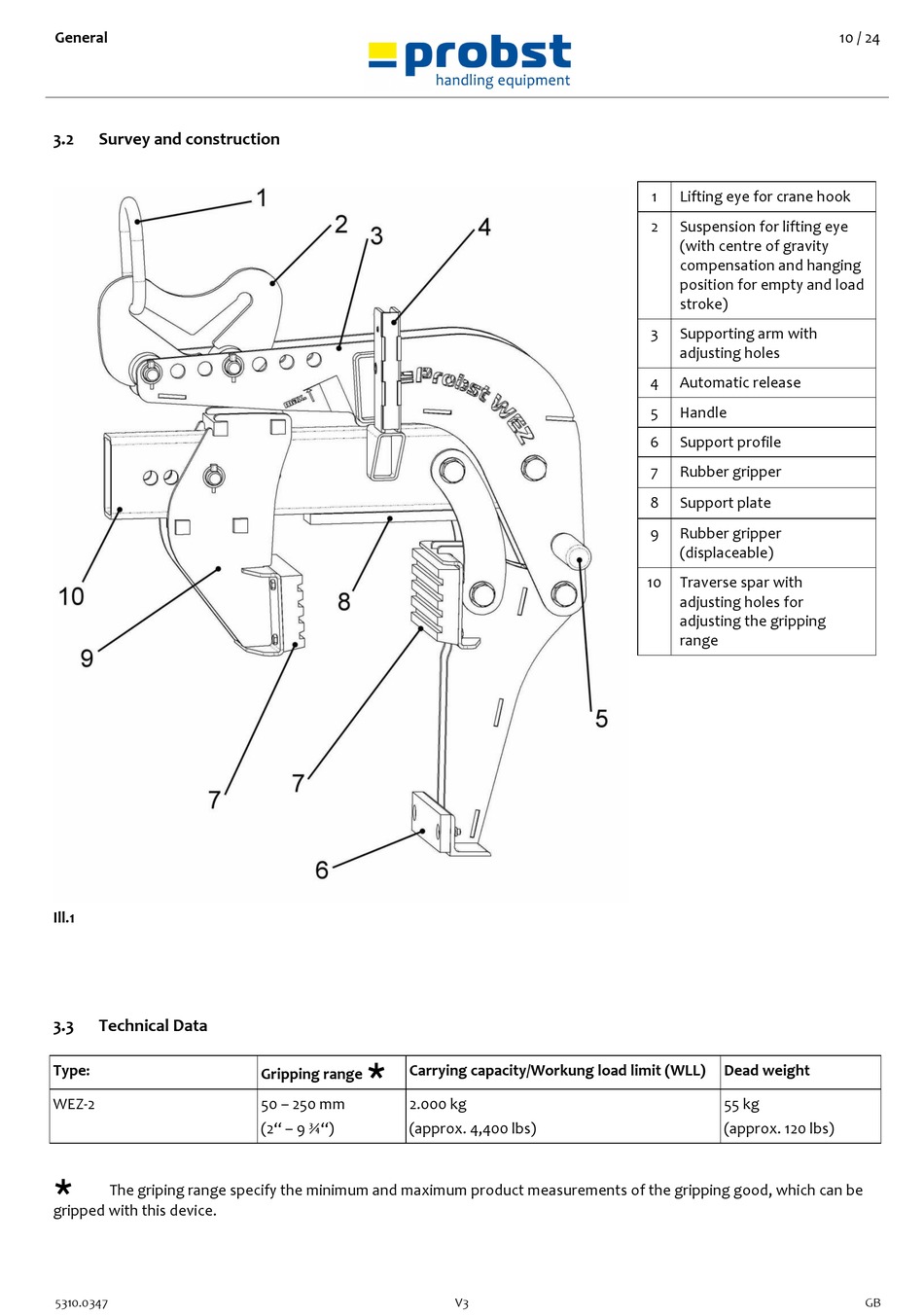

Survey and construction

Ill.1
3.3

Technical Data

Type:
WEZ-2

The griping range specify the minimum and maximum product measurements of the gripping good, which can be
gripped with this device.
5310.0347

Carrying capacity/Workung load limit (WLL)
Gripping range
50 – 250 mm 2.000 kg
(2" – 9 ¾") (approx. 4,400 lbs)
V3
1 Lifting eye for crane hook
2 Suspension for lifting eye
(with centre of gravity
compensation and hanging
position for empty and load
stroke)
3 Supporting arm with
adjusting holes
4 Automatic release
5 Handle
6 Support profile
7 Rubber gripper
8 Support plate
9 Rubber gripper
(displaceable)
10 Traverse spar with
adjusting holes for
adjusting the gripping
range
Dead weight
55 kg
(approx. 120 lbs)
