Operation

5.2

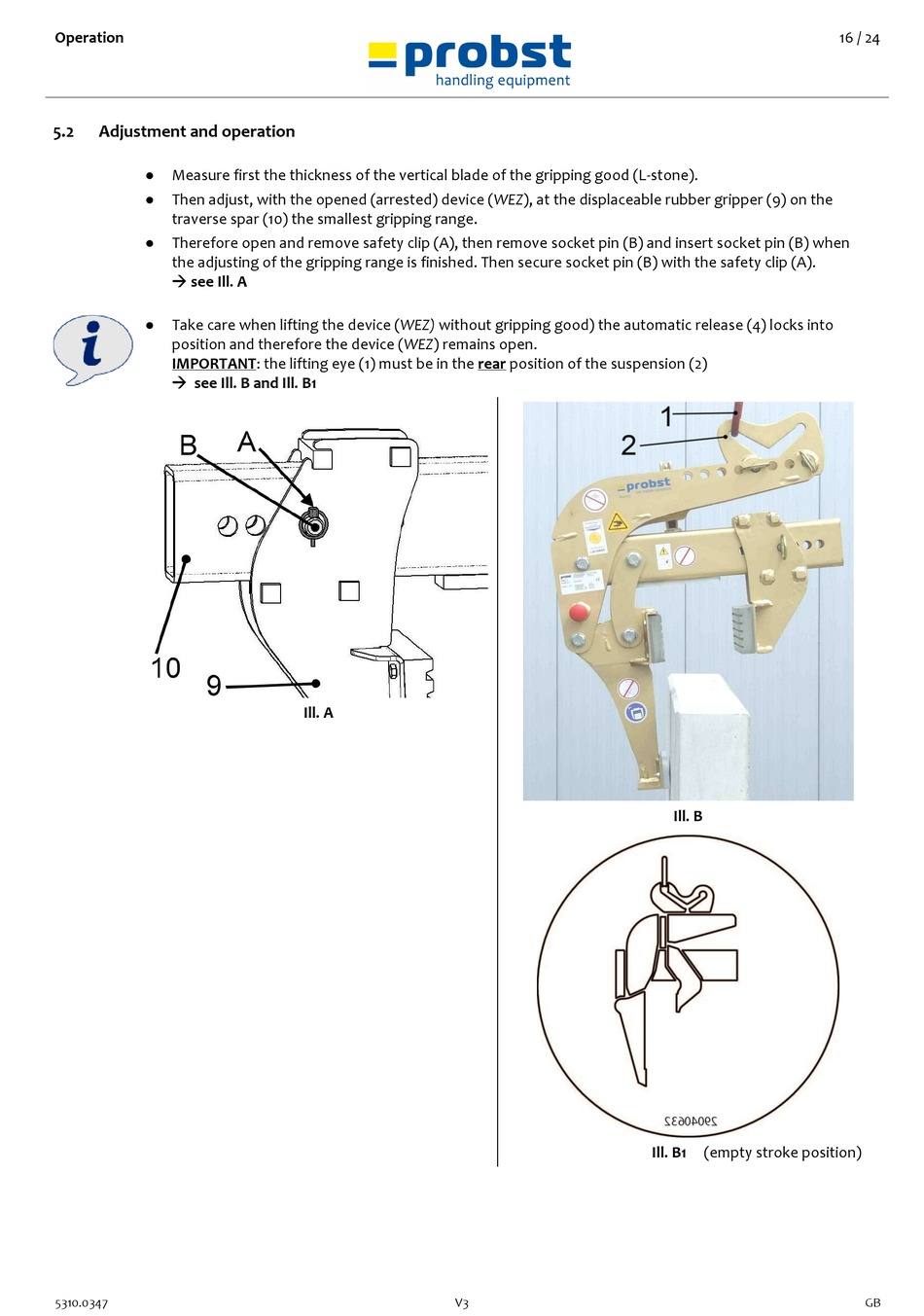

Adjustment and operation

●

Measure first the thickness of the vertical blade of the gripping good (L-stone).

●

Then adjust, with the opened (arrested) device (WEZ), at the displaceable rubber gripper (9) on the

traverse spar (10) the smallest gripping range.

●

Therefore open and remove safety clip (A), then remove socket pin (B) and insert socket pin (B) when

the adjusting of the gripping range is finished. Then secure socket pin (B) with the safety clip (A).

 see Ill. A

●

Take care when lifting the device (WEZ) without gripping good) the automatic release (4) locks into

position and therefore the device (WEZ) remains open.

IMPORTANT: the lifting eye (1) must be in the rear position of the suspension (2)

 see Ill. B and Ill. B1

5310.0347

Ill. A

Ill. B

Ill. B1

(empty stroke position)
