General
3.2

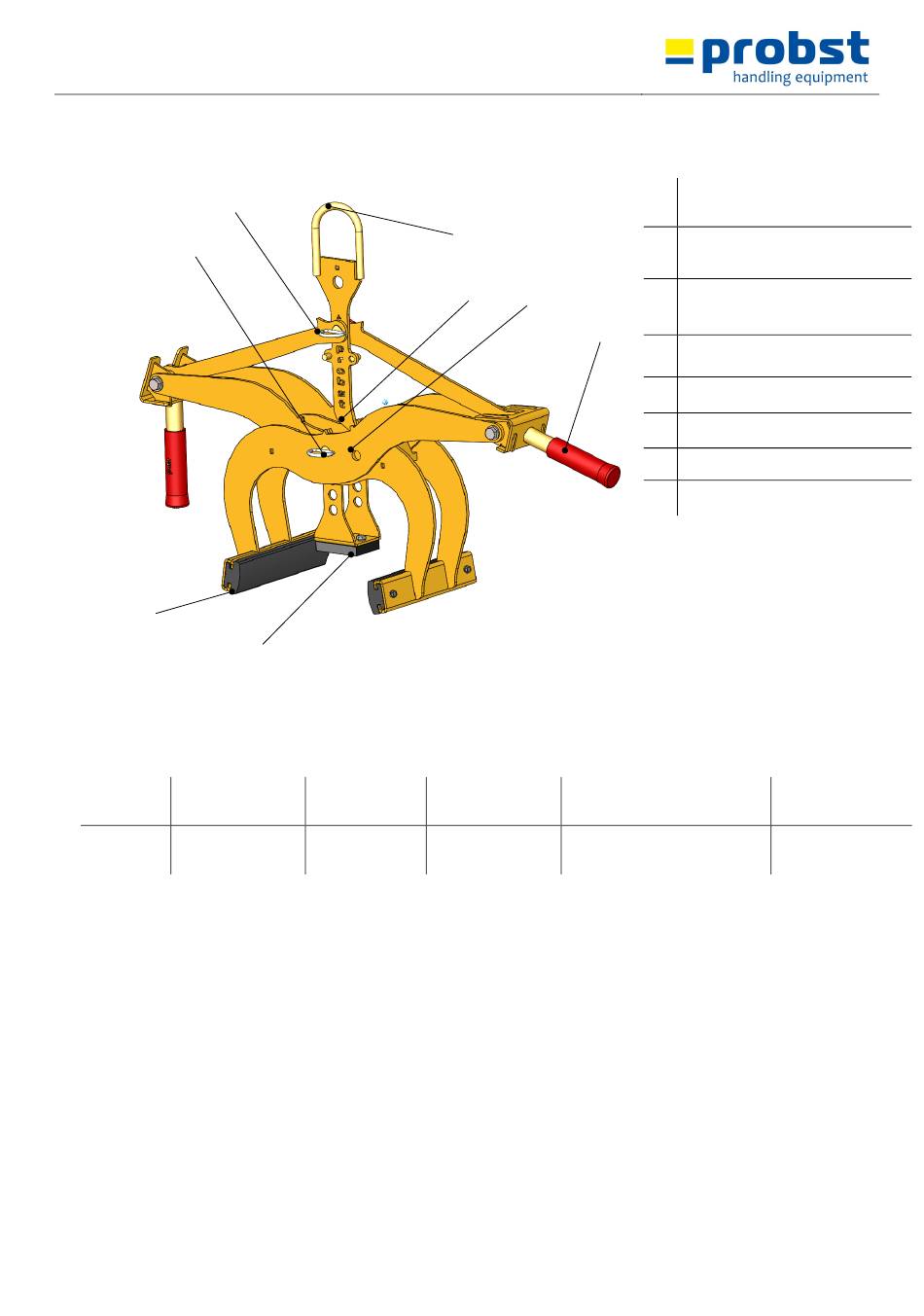

Survey and construction

8
6
5
Fig. 1
1.1 Technical Data
Type Gripping Range
0 – 400 mm
EXG-MAXI
(0 – 15¾")
53100392
7
Inside Height E
165 – 215 mm
(6½ – 8½")
1
2
3
4
Gripper Lenght L Carrying capacity/working
load limit (WLL):
235 mm 600 kg
(9¼") (1,320 lbs)
11 / 20
1 Suspension lug for support
frame
2 Locking hook (to transport the
device without a gripping good)
3 Adjusting hole for gripping
range
4 Handle (for manual operation)
5 Rubber grippers
6 Plug bolt with linchpin
7 Hight-adjustalbe support
8 Plug bolt with linchpin
Dead Weight
16 kg
(35 lbs)
GB
