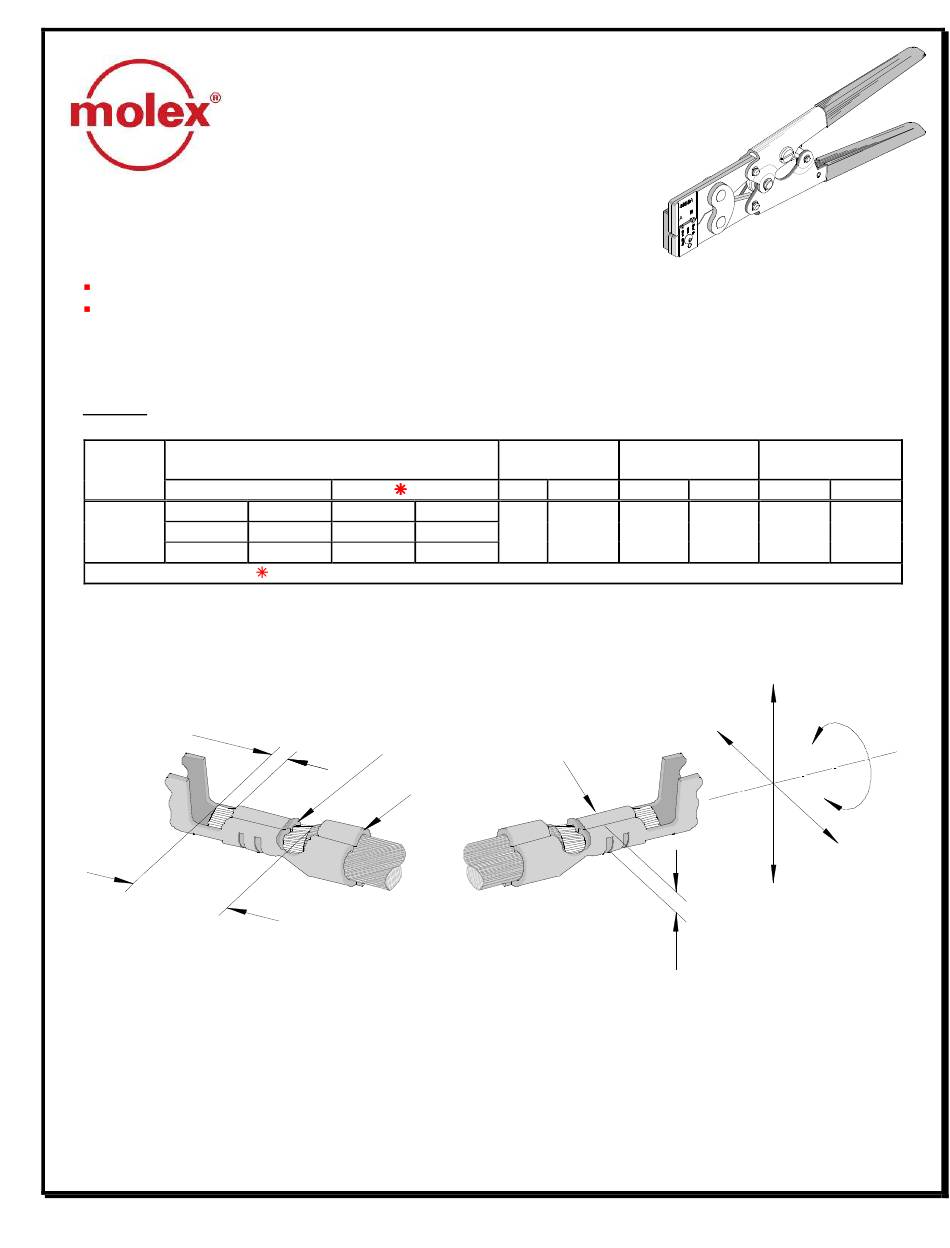

molex 207129 Series Specification Sheet

Hand crimp tool for claspcon crimp terminal
Hide thumbs Also See for 207129 Series:

Advertisement

Quick Links

Hand Crimp Tool for Claspcon™ Crimp Terminal

FEATURES

Simple trouble-free full cycle mechanism assures consistent complete terminations
All crimp cavities are fully machined in high carbon steel, then heat treated

SCOPE

Products: Claspcon™ Female Crimp Terminal, 24-30 AWG.
Terminal
Series No.
Loose Piece
02-05-1117 02-05-1119 02-05-1115 02-05-1216
2107
02-05-1217

DEFINITION OF TERMS

BRUSH
STRIP
LENGTH
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the
scope.
Doc No: ATS-011010088
Revision: D
Hand Crimp Tool
Specification Sheet
Order No. 11-01-0088
Engineering No. HTR4059A
Terminal Order No.
Reel
02-05-1116 02-05-5223
02-05-1118 02-05-5332
Customer to cut off terminal from reel: 0.20mm (.008") maximum Cut-off Tab.
BELL MOUTH
INSULATION
CRIMP
Release Date: 11-29-04
Revision Date: 10-30-08
Insulation Diameter
Wire Size
Maximum
AWG
mm²
mm
24-30 0.20-0.05
1.78
CONDUCTOR
CRIMP
CRIMP HEIGHT
UNCONTROLLED COPY
TYPE 3
Strip Length
In.
mm
In.
.070
3.17-3.96 .125-.156
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 207129 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for molex 207129 Series

  • Page 1 Hand Crimp Tool for Claspcon™ Crimp Terminal Hand Crimp Tool Specification Sheet Order No. 11-01-0088 Engineering No. HTR4059A TYPE 3 FEATURES Simple trouble-free full cycle mechanism assures consistent complete terminations All crimp cavities are fully machined in high carbon steel, then heat treated SCOPE Products: Claspcon™...
  • Page 2 (1/2 in.) so the insulation TERMINAL grips on the terminal do not grip the wire insulation or LOCATING the conductor. Refer to Molex Quality Crimping BLOCK Handbook 63800-0029 for additional information on crimping and crimp testing.
  • Page 3 Hand Crimp Tool for Claspcon™ Crimp Terminal CONDUCTOR INSULATION 3. Place a properly stripped wire into the PUNCH PUNCH terminal and down into insulation grip guide. TERMINAL See Figure 2. LOCATING 4. Close the tool until the ratchet releases. BLOCK 5.
  • Page 4 3. This tool is intended for standard conductor sizes. It may not give a good insulation crimp support for all insulation sizes. 4. Molex does not repair hand tools (see warranty above). The replacement parts listed are the only parts available for repair. If the handles or crimp tooling is damaged or worn, a new tool must be purchased.
  • Page 5 2222 Wellington Ct. 1-800-78MOLEX 81-462-65-2324 65-6-268-6868 49-89-413092-0 Lisle, IL 60532 U.S.A. amerinfo@molex.com feninfo@molex.com fesinfo@molex.com eurinfo@molex.com 630-969-4550 Fax: 630-969-1352 Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No: ATS-011010088 Release Date: 11-29-04 Page 5 of 5 Revision: D Revision Date: 10-30-08...
