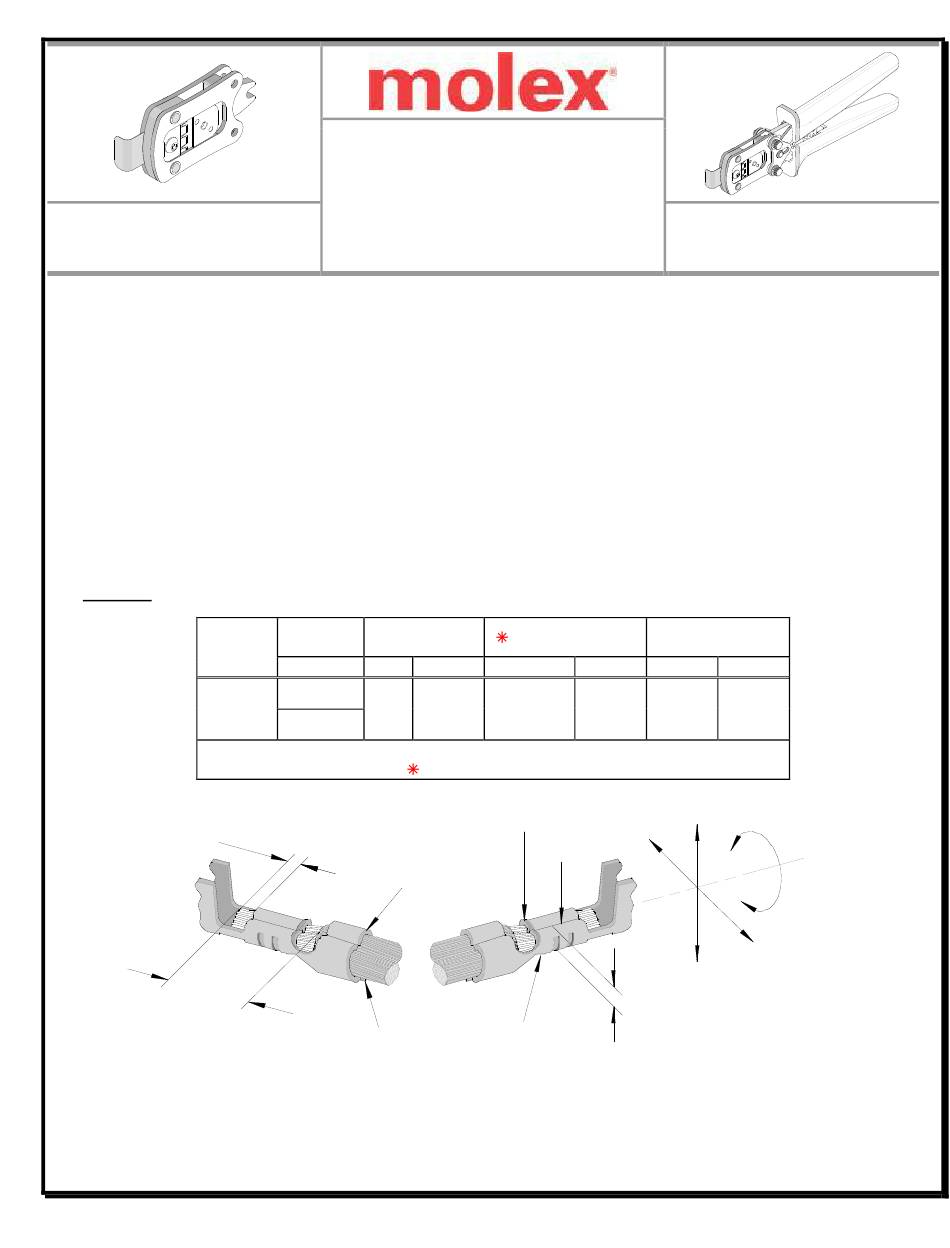

molex 207129 Series Specification Sheet

Hand crimp tool for 2.50mm (.098”) wire-to-board crimp terminals
Hide thumbs Also See for 207129 Series:
1
2
3
4
5
6
7

Advertisement

Table of Contents

Hand Crimp Tool for 2.50mm (.098") Wire-to-Board Crimp Terminals
Modular Crimp Head
Order No. 63823-8670
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
A-620 Class 3 compliant and RoHS compliant
%
Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,
%
accompanied by Air Powered Crimp Adapter (Order No. 63816-0700).
Can also be used in the Battery Powered Tool Order No.63816-0200 (110 V) or 63816-0250 (220 V),
%
accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600).
SCOPE
Products: 2.50mm (.098") Wire-to-Board Crimp Terminals, 22-28 AWG.
Terminal
Series No.
57915
DEFINITION OF TERMS
BRUSH
STRIP
LENGTH
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the
scope.
Doc No: ATS-6382386HM
Revision: B
Application Tooling
Specification Sheet
Terminal
Wire Size
Order No.
●Reel
AWG
mm²
57915-8001
22-28 0.35-0.08
57915-9002
●
Customer to cut off terminal from reel: 0.20mm (.008") maximum Cut-off
See Conditions on page 2.
INSULATION
CRIMP
▲SEE NOTE
CUT-OFF TAB
Release Date: 09-27-10
Revision Date: 10-14-10
Insulation Diameter
mm
In.
1.15-1.80
.045-.071 2.30-2.80 .091-.110
BELL MOUTH
SEAM
CONDUCTOR
CRIMP
COND.CRIMP
HEIGHT
UNCONTROLLED COPY
TYPE 4A
Hand Crimp Tool
Order No. 63823-8600
Strip Length
mm
In.
Tab.
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 7
