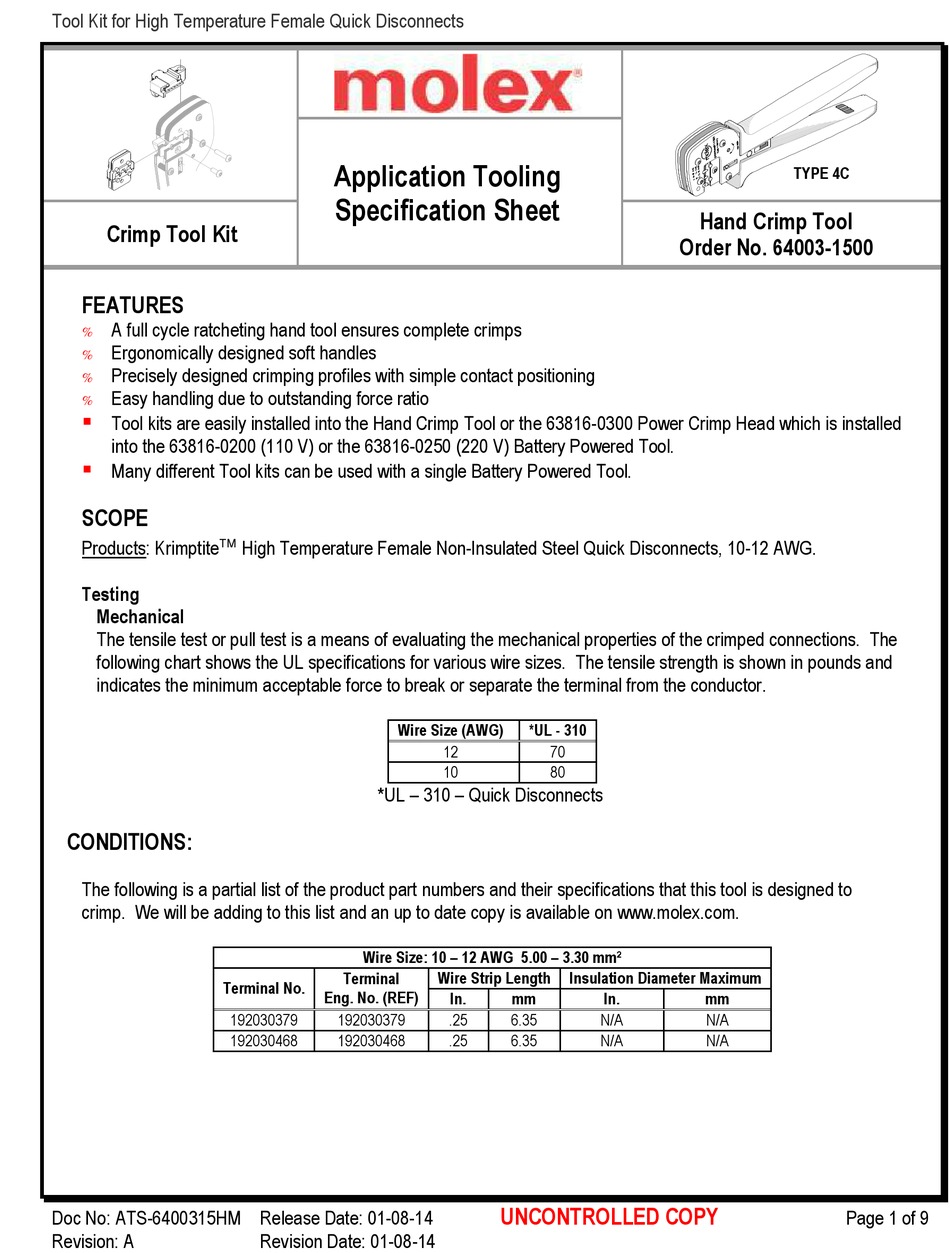

Tool Kit for High Temperature Female Quick Disconnects
Crimp Tool Kit
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed
into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
Many different Tool kits can be used with a single Battery Powered Tool.
SCOPE
Products: Krimptite
Testing
Mechanical
The tensile test or pull test is a means of evaluating the mechanical properties of the crimped connections. The
following chart shows the UL specifications for various wire sizes. The tensile strength is shown in pounds and
indicates the minimum acceptable force to break or separate the terminal from the conductor.
CONDITIONS:
The following is a partial list of the product part numbers and their specifications that this tool is designed to
crimp. We will be adding to this list and an up to date copy is available on www.molex.com.
Terminal No.
192030379
192030468
Doc No: ATS-6400315HM Release Date: 01-08-14
Revision: A
Application Tooling
Specification Sheet
High Temperature Female Non-Insulated Steel Quick Disconnects, 10-12 AWG.
Wire Size (AWG)
*UL – 310 – Quick Disconnects
Wire Size: 10 – 12 AWG 5.00 – 3.30 mm²
Terminal
Eng. No. (REF)
192030379
192030468
Revision Date: 01-08-14
*UL - 310
12
70
10
80
Wire Strip Length
Insulation Diameter Maximum
In.
mm
In.
.25
6.35
N/A
.25
6.35
N/A
UNCONTROLLED COPY
TYPE 4C
Hand Crimp Tool
Order No. 64003-1500
mm
N/A
N/A
Page 1 of 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 207129 Series and is the answer not in the manual?

Questions and answers

Joe Wilson
March 25, 2025

Where can I buy a 63811-7270 Tool Kit with Locator for a 63811-7200 crimper

0

Subscribe to Our Youtube Channel

Related Manuals for molex 207129 Series

Summary of Contents for molex 207129 Series

  • Page 1 The following is a partial list of the product part numbers and their specifications that this tool is designed to crimp. We will be adding to this list and an up to date copy is available on www.molex.com. Wire Size: 10 – 12 AWG 5.00 – 3.30 mm²...

  • Page 2: Definition Of Terms

    CUT-OFF TAB SIZE SIZE CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or die. INSTALLATION To install the Tool Kit into the Power Crimp Head follow the steps below:...

  • Page 3: Operation

    Tool Kit for High Temperature Female Quick Disconnects Locator Installation and Removal Follow the steps below to install or replace the locator. See Figure 2. To install the locator 1. Position the locator with the hole over the brass pivot shaft and snap it into place.

  • Page 4: Maintenance

    Tool Kit for High Temperature Female Quick Disconnects 8. Compress the terminal by squeezing the tool handles until the ratchet mechanism cycle has been completed. Release the handles to open the jaws. 9. Remove the crimped terminal from the terminal locator by pressing down on the wire stop and gently pulling on the wire.

  • Page 5: Warranty

    12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than 25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull testing.
  • Page 6 Tool Kit for High Temperature Female Quick Disconnects The chart below shows all applications for this Tool Kit. Tool Kit Tool Tool Power Head Adapter Figure Order No. Order no. Description Order No. Description 63810-1050 Hand Crimp Frame (Short) 63810-1000 Hand Crimp Frame (Long) 64003-1570 63816-0200 Battery Power Tool (110 V) 63816-0300 Power Crimp Head 63816-0250 Battery Power Tool (220 V) 63816-0300 Power Crimp Head...

  • Page 7: Hand Tool Parts List

    Tool Kit for High Temperature Female Quick Disconnects HAND TOOL PARTS LIST Item Number Order Number Description Quantity 63810-1000 Hand Crimp Frame (Long) 64003-1570 Tool Kit with Locator 63811-4773 Locator Base 64003-1575 Locator M4 X 8mm LONG BHCS RATCHET RELEASE SCREW WITH TOOL KIT M4 X 10mm LONG BHCS...

  • Page 8: Power Head Parts List

    Tool Kit for High Temperature Female Quick Disconnects POWER HEAD PARTS LIST Item Order No Engineering No. Description Quantity 63816-0300 63816-0300 Power Crimp Head 64003-1570 64003-1570 Tool Kit M4 by 8 Long BHCS M4 by 18 Long BHCS M4 by 10 Long BHCS Figure 11 UNCONTROLLED COPY...

  • Page 9: Certificate Of Calibration

    Technician ______________ Date of Calibration ______________ Calibration should be done every 5,000 cycles or 3 months. Tools should be lubricated during this operation. Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No: ATS-6400315HM Release Date: 01-08-14 Page 9 of 9...
