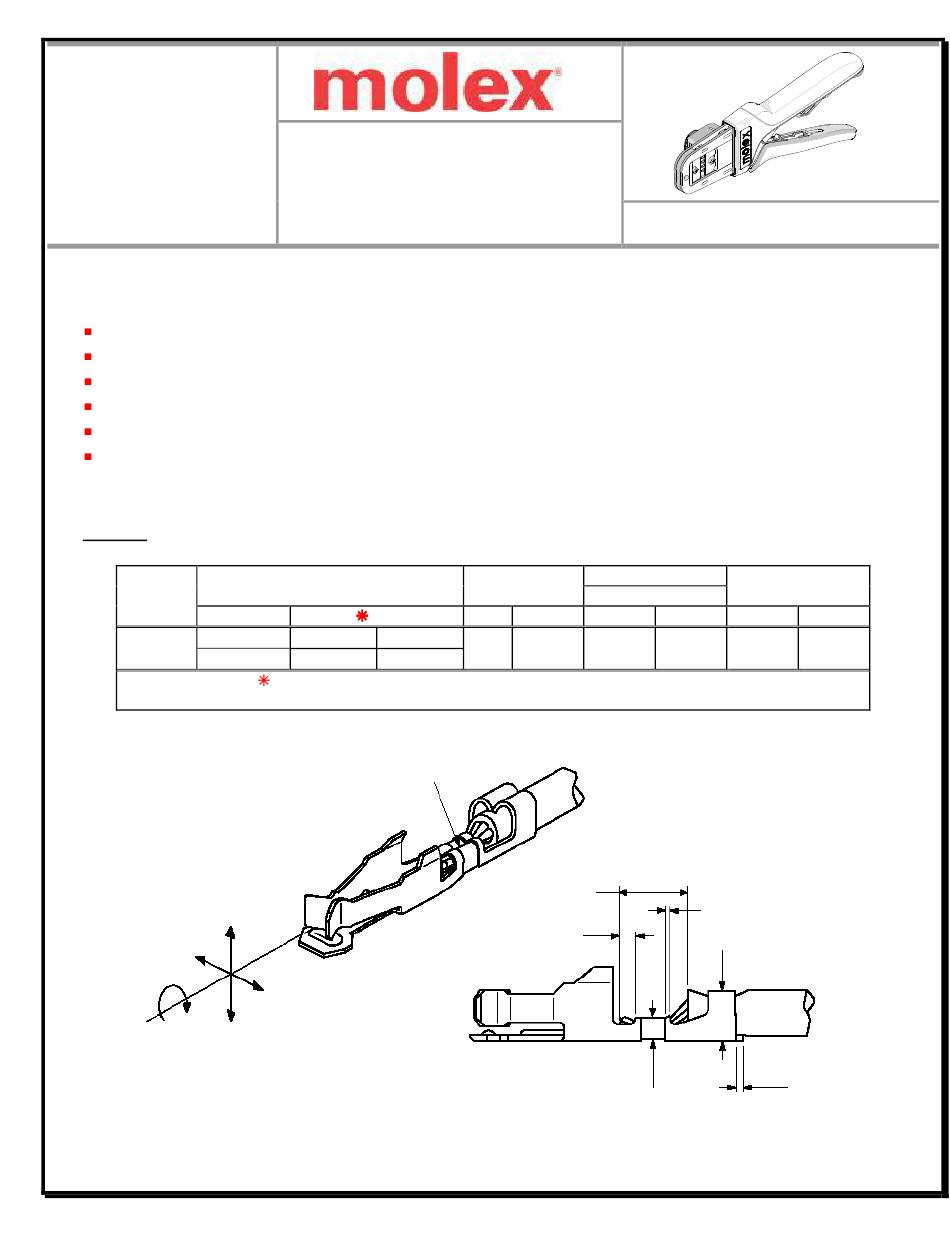

Hand Crimp Tool For Milli-Grid™ Crimp Terminal
HAND CRIMP
TOOL

FEATURES

A full cycle ratcheting hand tool ensures complete crimps
Ergonomic soft grip handles for comfortable crimping
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Right and Left handed applications
This tool is IPC/WHMA A-620 Class 2 compliant
This tool is RoHS compliant, however RoHS compliant is not required

SCOPE

Products: Milli-Grid™ Crimp Terminal, 22-28 AWG.
Terminal
Series No.
Loose Piece
87396-8100
87396

DEFINITION OF TERMS

BEND UP
ROLLING
BEND DOWN
Doc No: ATS-638236700
Revision: B
Application Tooling
Specification Sheet
Terminal Order No.
Reel
87396-8051 87396-8999
87396-9051
Customer to cut off terminal from reel: 0.20mm (.008") maximum Cut-off Tab.
(1) Overall insulation OD specification for terminal.
SEAM
TWISTING
Release Date: 07-19-11
Revision Date: 09-11-12
Insulation Diameter
Wire Size
Terminal (1)
AWG
mm²
mm
22-28 0.35-0.08 1.15-1.80 .045-.070 1.30-1.80 .051-.071
STRIP LENGTH
BRUSH
CONDUCTOR
CRIMP HEIGHT
UNCONTROLLED COPY
TYPE 4D
Order No. 63823-6700
Strip Length
In.
mm
In.
BELL MOUTH
INSULATION CRIMP
CUT-OFF TAB
Page 1 of 8
