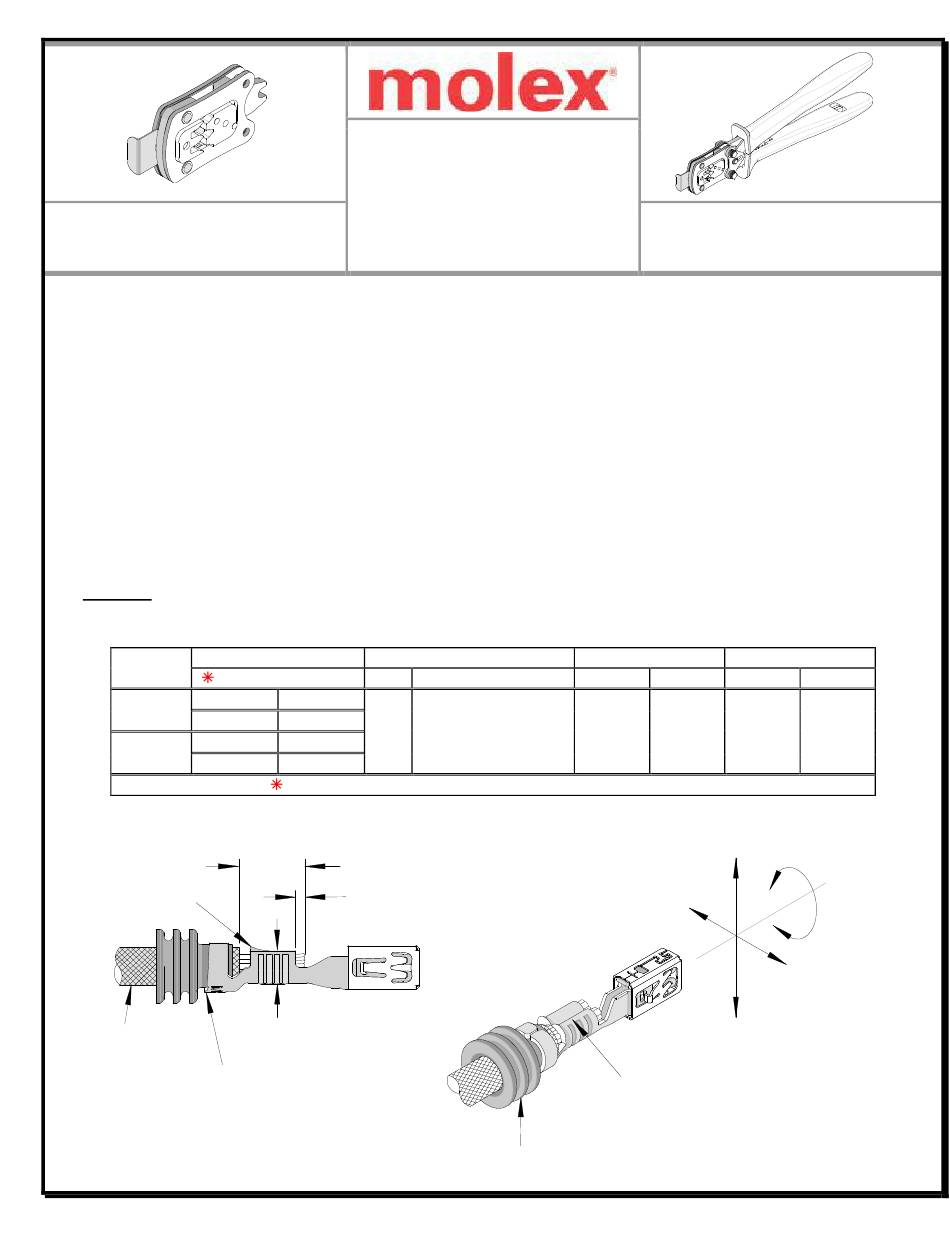

molex 207129 Series Specification Sheet

Modular crimp head, hand crimp tool
Hide thumbs Also See for 207129 Series:
1
2
3
4
5
6

Advertisement

Table of Contents

Hand Crimp Tool for CP 2.8 Receptacle Crimp Terminals
Modular Crimp Head
Order No. 63819-3470
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,
%
accompanied by Air Powered Crimp Adapter (Order No. 63816-0700).
Can also be used in the Battery Powered Tool Order No.63816-0200 (110 V) or 63816-0250 (220 V),
%
accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600).
SCOPE
Products: CP 2.8 receptacle 0,5 – 0,75mm
Red.
Terminal
Terminal Order No.
Series No.
Available in Reel only AWG
98910-1049 98910-1149
98910
98910-2049 98910-2149
64324-1049 64324-1149
64324
64324-2049 64324-2149
DEFINITION OF TERMS
BELL MOUTH
WIRE
CUT-OFF
TAB
Doc No: ATS-6381934HM
Revision: C
Application Tooling
Specification Sheet
2
type ID and IR wire with 2,80mm (.110"), CMC Wire Seal Receptacle,
Wire Size and Type
---
Customer to cut off terminal from reel: 0.30mm (.012") maximum Cut-off Tab.
STRIP LENGTH
CONDUCTOR
BRUSH
CONDUCTOR
CRIMP
Release Date: 07-25-08
Revision Date: 11-22-10
Insulation Diameter
mm²
0.5 -0.75 Type ID and IR 1.40 -1.90 .055 -.075 4.90 -5.10 .193 -.201
SEAL
UNCONTROLLED COPY
Hand Crimp Tool
Order No. 63819-3400
Strip Length
mm
In.
mm
BEND UP
TWISTING
BEND
DOWN
SEAM
TYPE 4A
In.
ROLLING
Page 1 of 6
