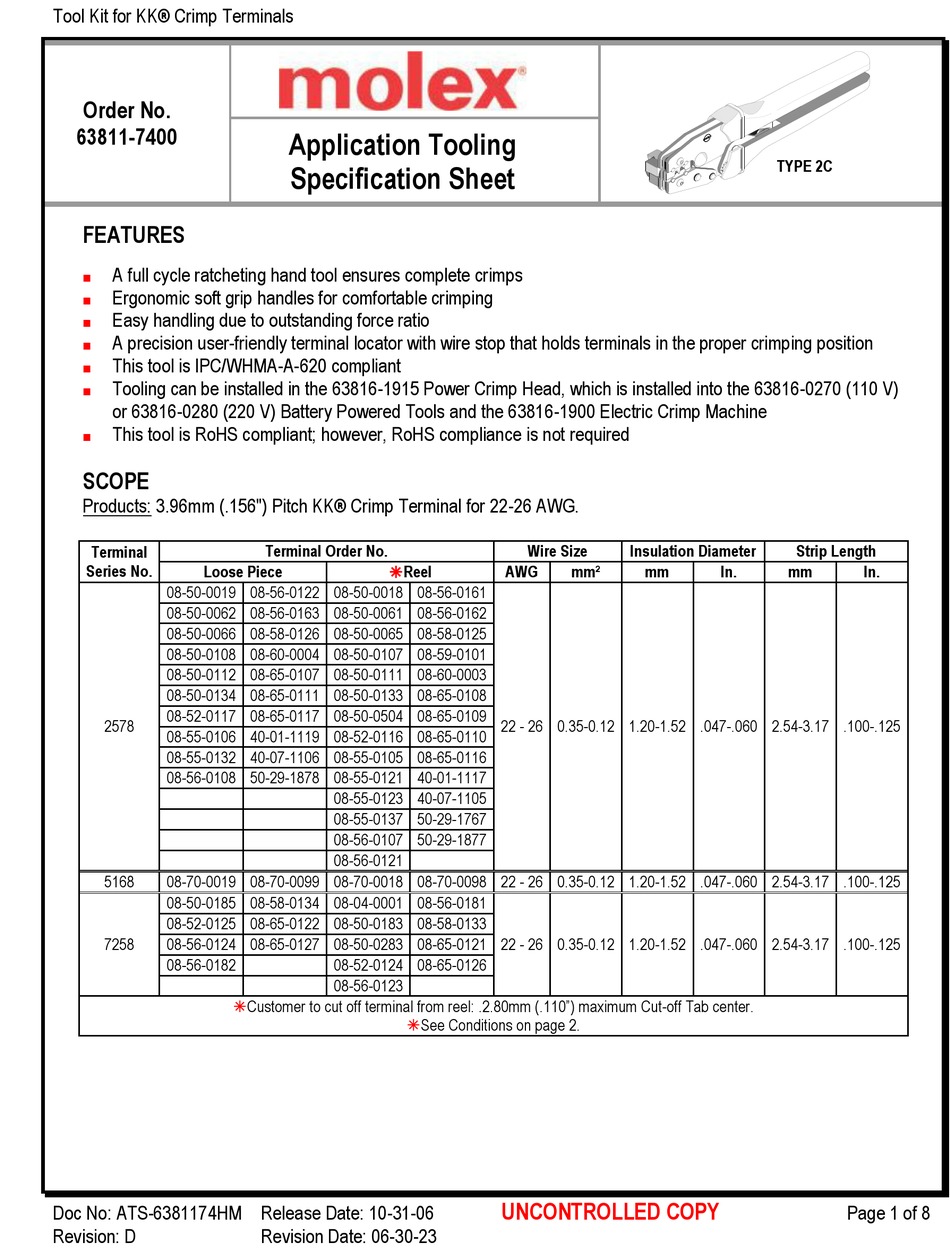

Tool Kit for KK® Crimp Terminals
Order No.
63811-7400
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomic soft grip handles for comfortable crimping
Easy handling due to outstanding force ratio
A precision user-friendly terminal locator with wire stop that holds terminals in the proper crimping position
This tool is IPC/WHMA-A-620 compliant
Tooling can be installed in the 63816-1915 Power Crimp Head, which is installed into the 63816-0270 (110 V)
or 63816-0280 (220 V) Battery Powered Tools and the 63816-1900 Electric Crimp Machine
This tool is RoHS compliant; however, RoHS compliance is not required
SCOPE
Products: 3.96mm (.156") Pitch KK® Crimp Terminal for 22-26 AWG.
Terminal
Series No.
Loose Piece
08-50-0019 08-56-0122 08-50-0018 08-56-0161
08-50-0062 08-56-0163 08-50-0061 08-56-0162
08-50-0066 08-58-0126 08-50-0065 08-58-0125
08-50-0108 08-60-0004 08-50-0107 08-59-0101
08-50-0112 08-65-0107 08-50-0111 08-60-0003
08-50-0134 08-65-0111 08-50-0133 08-65-0108
08-52-0117 08-65-0117 08-50-0504 08-65-0109
2578
08-55-0106 40-01-1119 08-52-0116 08-65-0110
08-55-0132 40-07-1106 08-55-0105 08-65-0116
08-56-0108 50-29-1878 08-55-0121 40-01-1117
5168
08-70-0019 08-70-0099 08-70-0018 08-70-0098 22 - 26 0.35-0.12 1.20-1.52 .047-.060 2.54-3.17 .100-.125
08-50-0185 08-58-0134 08-04-0001 08-56-0181
08-52-0125 08-65-0122 08-50-0183 08-58-0133
7258
08-56-0124 08-65-0127 08-50-0283 08-65-0121
08-56-0182
Customer to cut off terminal from reel: .2.80mm (.110") maximum Cut-off Tab center.
Doc No: ATS-6381174HM Release Date: 10-31-06
Revision: D
Application Tooling
Specification Sheet
Terminal Order No.
Reel
08-55-0123 40-07-1105
08-55-0137 50-29-1767
08-56-0107 50-29-1877
08-56-0121
08-52-0124 08-65-0126
08-56-0123
See Conditions on page 2.
Revision Date: 06-30-23
Wire Size
Insulation Diameter
AWG
mm²
mm
22 - 26 0.35-0.12 1.20-1.52 .047-.060 2.54-3.17 .100-.125
22 - 26 0.35-0.12 1.20-1.52 .047-.060 2.54-3.17 .100-.125
UNCONTROLLED COPY
TYPE 2C
Strip Length
In.
mm
In.
Page 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 207129 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for molex 207129 Series

Summary of Contents for molex 207129 Series

  • Page 1 Tool Kit for KK® Crimp Terminals Order No. 63811-7400 Application Tooling TYPE 2C Specification Sheet FEATURES A full cycle ratcheting hand tool ensures complete crimps  Ergonomic soft grip handles for comfortable crimping  Easy handling due to outstanding force ratio ...

  • Page 2: Definition Of Terms

    Tool Kit for KK® Crimp Terminals DEFINITION OF TERMS CONDUCTOR CRIMP INSULATION CRIMP ▲SEE NOTE LOCKING BEND UP TANG HEIGHT ROLLING BRUSH SEAM BELL MOUTH TWISTING CUT-OFF BEND DOWN STRIP LENGTH CRIMP HEIGHT OVERLAP FORM GEOMETRY PUNCH ▲Insulation Crimp Note: Due to the terminal’s insulation grip design and/or insulation diameter range, this tool uses “overlap”...

  • Page 3: Installation

    4. Molex does not repair hand tools. See warranty on page 6. The replacement parts listed are the only parts available for repair. If the handles or crimp tooling become damaged or worn, a new tool must be purchased.

  • Page 4: Operation

    Tool Kit for KK® Crimp Terminals To remove the locator 1. Open the crimp hand tool. 2. Swing the existing locator open and away from the hand tool. 3. Firmly press down on the brass pivot shaft with your thumb, while pulling the locator up. Slip the locator off the top of the brass pivot shaft.

  • Page 5: Maintenance

    Tool Kit for KK® Crimp Terminals Note: The tamper proof ratchet action will not release the tool until it has been fully closed. LIFT UP Locator Replacement LOCATOR See the parts list on the last page of this document for the proper locator order number.

  • Page 6: Warranty

    All tools are warranted to be free of manufacturing defects for a period of 30 days. Should such a defect occur, Molex will repair or exchange the tool free of charge. This repair or exchange will not be applicable to altered, misused or damaged tools. This tool is designed for hand use only. Any clamping, fixturing or use of handle extensions voids this warranty.
  • Page 7 Tool Kit for KK® Crimp Terminals Certification Molex does not certify or re-certify commercial grade hand tools but rather supplies the following guidelines for customers to re-certify hand tools or determine tool life: 1. When the hand tool is no longer capable of achieving minimum conductor crimp height, it should be taken out of service and replaced.

  • Page 8: Hand Tool Parts List

    Application Tooling Support E-Mail: toolingsupport@molex.com Website: www.molex.com/applicationtooling Molex is a registered trademark of Molex, LLC in the United States of America and may be registered in other countries; all other trademarks listed herein belong to their respective owners. UNCONTROLLED COPY...
