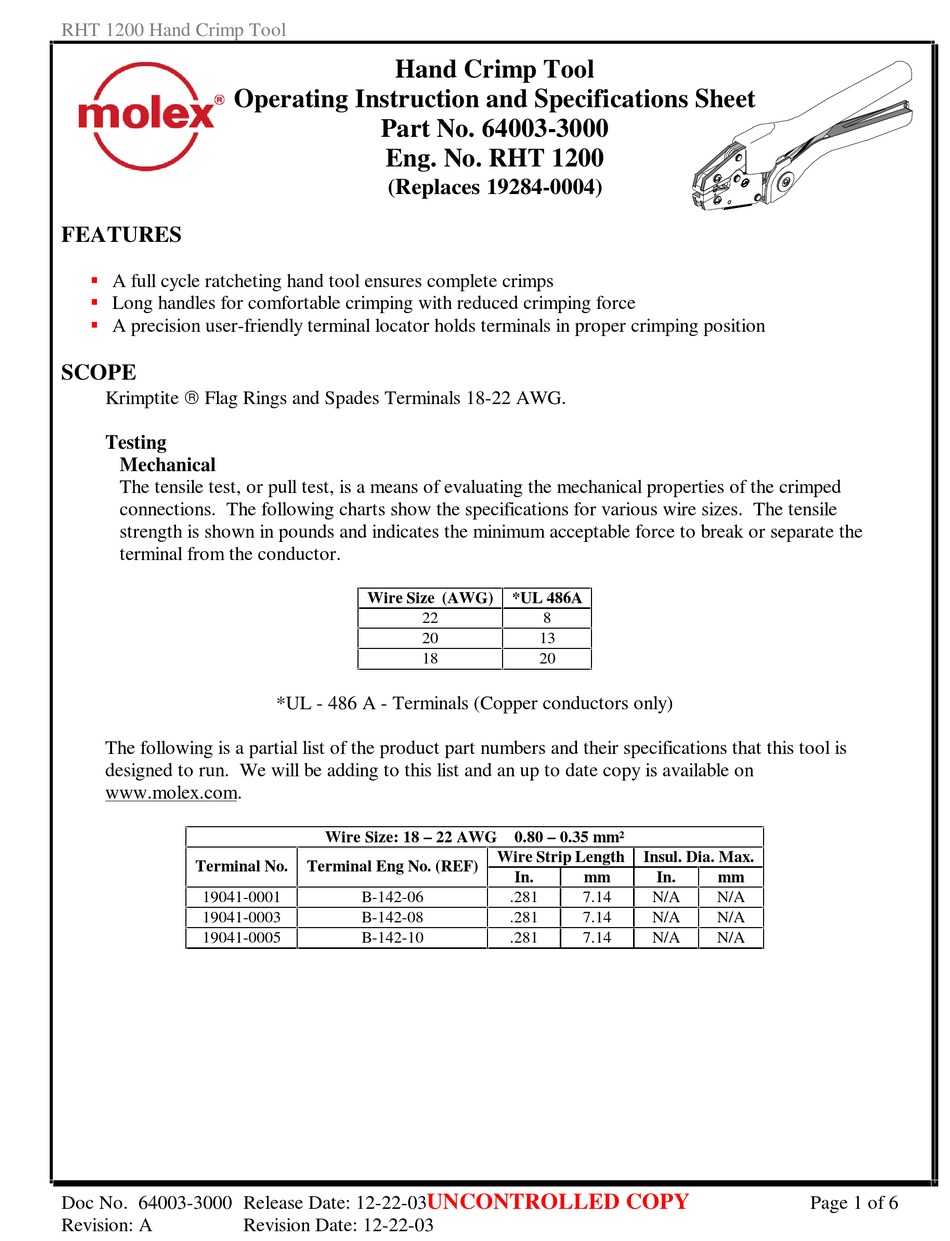

RHT 1200 Hand Crimp Tool
Operating Instruction and Specifications Sheet
FEATURES
Œ
Œ
A full cycle ratcheting hand tool ensures complete crimps
Œ
Long handles for comfortable crimping with reduced crimping force
A precision user-friendly terminal locator holds terminals in proper crimping position
SCOPE
Krimptite  Flag Rings and Spades Terminals 18-22 AWG.
Testing
Mechanical
The tensile test, or pull test, is a means of evaluating the mechanical properties of the crimped
connections. The following charts show the specifications for various wire sizes. The tensile
strength is shown in pounds and indicates the minimum acceptable force to break or separate the
terminal from the conductor.
The following is a partial list of the product part numbers and their specifications that this tool is
designed to run. We will be adding to this list and an up to date copy is available on
www.molex.com.
Terminal No.
19041-0001
19041-0003
19041-0005
Doc No. 64003-3000 Release Date: 12-22-03
Revision: A
Hand Crimp Tool
Part No. 64003-3000
Eng. No. RHT 1200
(Replaces 19284-0004)
Wire Size (AWG)
22
20
18
*UL - 486 A - Terminals (Copper conductors only)
Wire Size: 18 – 22 AWG
Terminal Eng No. (REF)
B-142-06
B-142-08
B-142-10
Revision Date: 12-22-03
*UL 486A
8
13
20
0.80 – 0.35 mm²
Wire Strip Length
In.
mm
.281
7.14
.281
7.14
.281
7.14
UNCONTROLLED COPY
Insul. Dia. Max.
In.
mm
N/A
N/A
N/A
N/A
N/A
N/A
Page 1 of 6
