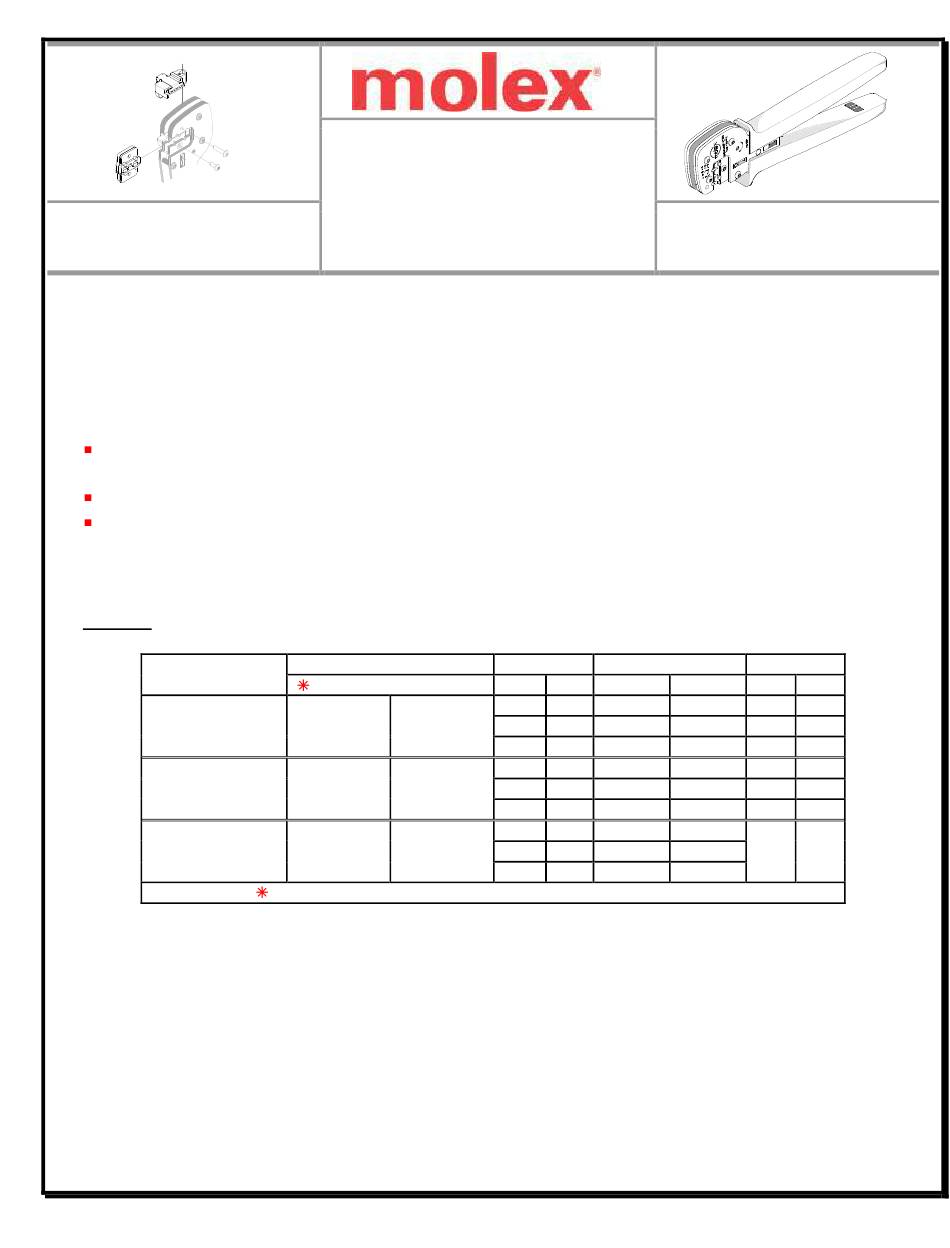

Tool Kit for 5.77mm (.227") Crimp Terminal, Pin
Tool Kit
Order No. 63811-5870
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed
into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
Many different Tool kits can be used with a single Battery Powered Tool.
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant.
SCOPE
Products: 5.77mm (.227") Crimp Terminal, Pin, 14-18 AWG.
Terminal Series No.
84524
84525
84590
Doc No: ATS-6381158HM Release Date: 02-20-07
Revision: G
Application Tooling
Specification Sheet
Terminal Order No.
Available in Reel form only
84524-0012
84524-0018
84525-0025
84525-0046
84590-0021
84590-0030
84590-0024
84590-0036
84590-0027
84590-0039
Customer to cut off terminal from reel: 0.50mm (.020") maximum Cut-off Tab.
Revision Date: 05-24-11
Wire Size
Insulation Diameter
AWG
mm²
mm
14
2.09
3.30-3.81
.130-.150
16
1.33
2.92-3.30
.115-.130
18
0.82
2.41-2.92
.095-.115
14
2.09
3.30-3.81
.130-.150
16
1.33
2.92-3.30
.115-.130
18
0.82
2.41-2.92
.095-.115
14
2.09
3.30-3.81
.130-.150
16
1.33
2.92-3.30
.115-.130
18
0.82
2.41-2.92
.095-.115
UNCONTROLLED COPY
TYPE 4C
Hand Crimp Tool
Order No. 63811-5800
Strip Length
in
mm
in
4.45
.175
4.45
.175
4.45
.175
Page 1 of 8
