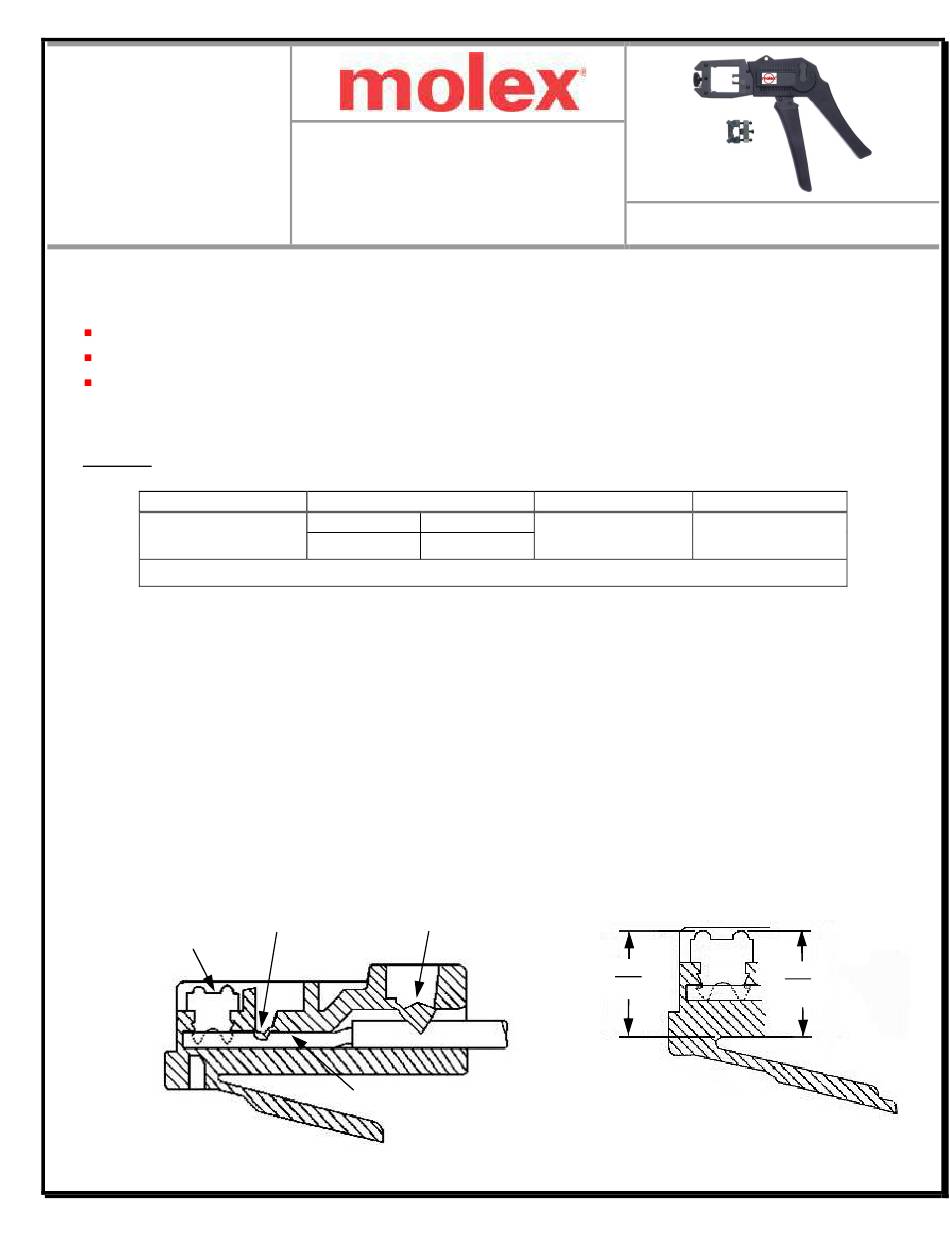

Manual Hand Tool
MANUAL
HAND TOOL

FEATURES

A full cycle ratcheting hand tool ensures complete terminations
This tool is intended for prototype, low volume, and field repair applications
Tool is equipped with 8-loaded-8 die set but 6-loaded-6, 6-loaded-4, and 4-loaded-4 are available

SCOPE

Products: 90075 Modular Plug, FCC 68, 8/8 Circuit, Short Body
Connector Series No.
90075
►For strip mounted connector : The customer must cut from strip a maximum 0.30mm (0.012") of the cut-off tab.

OPERATION

1. Insert the stripped cable into the plug until the conductors stop at the end of the wire cavity.
2. Push the plug assembly into the termination nest of the tool until it stops.
3. Squeeze the tool handles together until the full cycle ratchet releases. If the handles become jammed, see
"Missed terminations or Jams" section on page 2.
4. Release the tool handles and let the tool open completely.
5. Remove the terminated plug from the nest.

TERMINATION CONDITIONS

After termination, inspect the termination height dimensions and strain reliefs for latching. See Figure 1.
INSULATION
PIERCE
TERMINAL
Doc No: ATS-690081124
Revision: D
Application Tooling
Specification Sheet
Connector Order No.
90075-0141
►90075-0139
PRIMARY STRAIN
SECONDARY STRAIN
RELIEF
INDIVIDUAL WIRES
Release Date: 09-01-11
Revision Date: 07-09-12
Wire Size
90075-0132
30AWG (7 x 38AWG)
►90075-0130
RELIEF
Figure 1
UNCONTROLLED COPY
Order No. 69008-1124
Jacket Strip Length
12.5mm – 13.5mm
(0.49 – 0.53 in)
6.02
6.02
6.13
6.15
TYPE 7
Page 1 of 4
