molex 207129 Series Specification Sheet

Modular crimp head, hand crimp tool
Hide thumbs Also See for 207129 Series:
1
2
3
4
5
6

Advertisement

Table of Contents

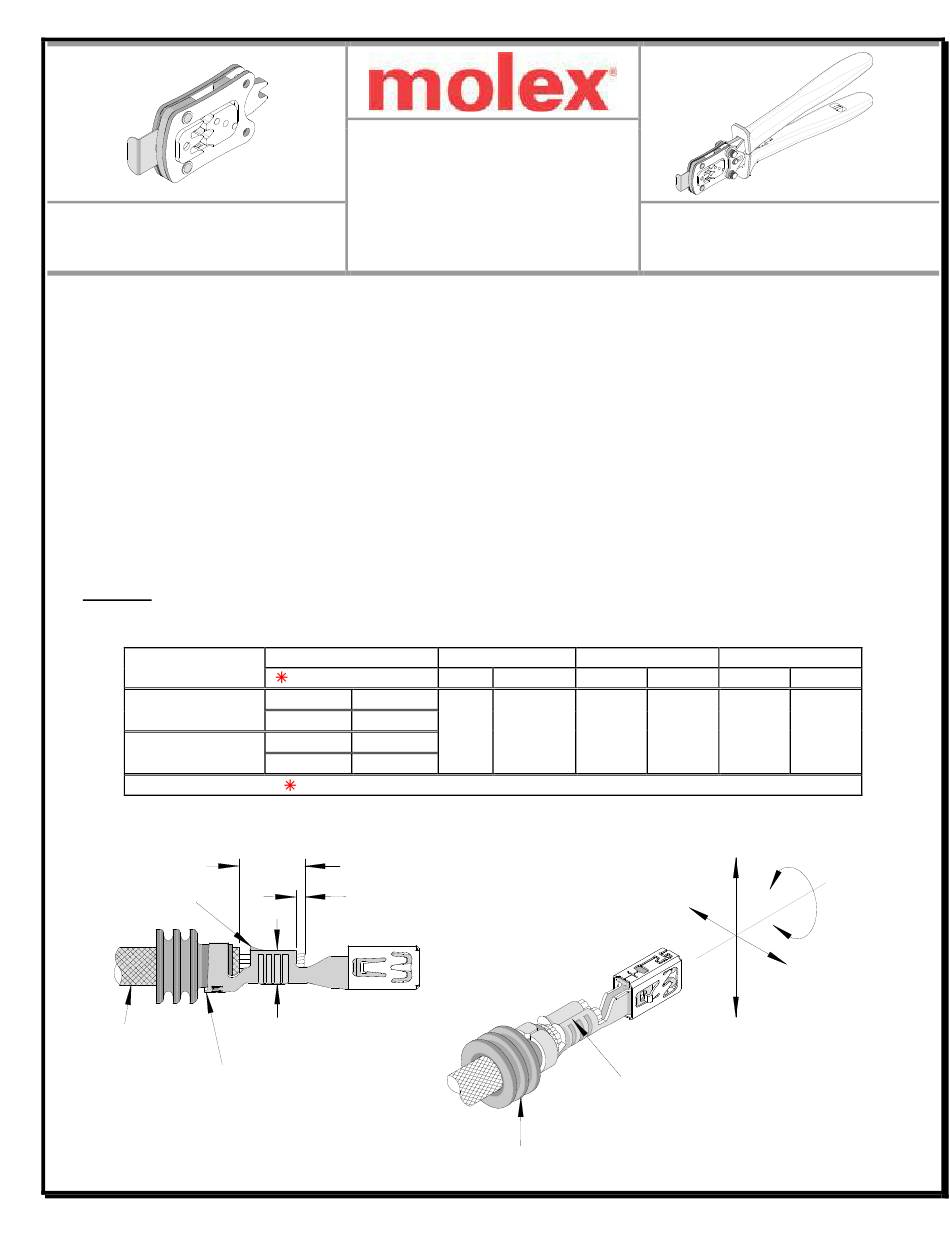

Hand Crimp Tool for CP 2.8 Receptacle Crimp Terminals
Modular Crimp Head
Order No. 63819-3570
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,
%
accompanied by Air Powered Crimp Adapter (Order No. 63816-0700).
Can also be used in the Battery Powered Tool Order No.63816-0200 (110 V) or 63816-0250 (220 V),
%
accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600).
SCOPE
Products: CP 2.8 receptacle for 1.0mm
Red.
Terminal Series No.
98910
64324
DEFINITION OF TERMS
BELL MOUTH
WIRE
CUT-OFF
TAB
Doc No: ATS-6381935HM
Revision: C
Application Tooling
Specification Sheet
2
type ID and IR wire with 2.80mm (.110"), CMC Wire Seal Receptacle,
Terminal Order No.
Available in Reel only
98910-1049 98910-1149
98910-2049 98910-2149
64324-1049 64324-1149
64324-2049 64324-2149
Customer to cut off terminal from reel: 0.30mm (.012") maximum Cut-off Tab.
STRIP LENGTH
CONDUCTOR
BRUSH
CONDUCTOR
CRIMP
Release Date: 07-25-08
Revision Date: 08-10-10
Wire Size and Type Insulation Diameter
AWG
mm²
mm
1.0 Type
-
1.75-2.15 .069-.085 4.90-5.10 .193-.201
ID and IR
SEAM
SEAL
UNCONTROLLED COPY
TYPE 4A
Hand Crimp Tool
Order No. 63819-3500
Strip Length
In.
mm
In.
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 207129 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for molex 207129 Series

Summary of Contents for molex 207129 Series

  • Page 1 Hand Crimp Tool for CP 2.8 Receptacle Crimp Terminals TYPE 4A Application Tooling Specification Sheet Modular Crimp Head Hand Crimp Tool Order No. 63819-3570 Order No. 63819-3500 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomically designed soft handles Precisely designed crimping profiles with simple contact positioning Easy handling due to outstanding force ratio Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,...

  • Page 2: Operation

    1. Pull Force should be measured with no influence from the insulation crimp. 2. The above specifications are guidelines to an optimum crimp. CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects - damage can occur to the tool or die.

  • Page 3: Maintenance

    Repetitive use of this tool should be avoided. 2. Insulated rubber handles are not protection against electrical shock. 3. Wear eye protection at all times. 4. Use only the Molex terminals specified for crimping with this tool. UNCONTROLLED COPY Doc No: ATS-6381935HM...
  • Page 4 3. This tool is intended for standard conductor sizes. It may not give a good insulation crimp support for all insulation sizes. 4. Molex does not repair hand tools (see warranty above). The replacement parts listed are the only parts available for repair. If the handles or crimp tooling is damaged or worn, a new tool must be purchased.
  • Page 5 Hand Crimp Tool for CP 2.8 Receptacle Crimp Terminals The chart below shows all applications for this Modular Crimp Head. Modular Crimp Head Tool Tool Adapter Adapter Figure Order No. Order no. Description Order No. Description 63816-0000 Hand Crimp Frame (Short) 63816-0050 Hand Crimp Frame (Long) 63819-3570 63816-0200 Battery Power Tool (110 V) 63816-0600 Battery Power Crimp Adapter...

  • Page 6: Parts List

    Handle Spring 63600-0520 Crimping Spring HANDLE SPRING M4 FLAT WASHER M4 X 14mm RATCHET LONG BHCS RELEASE LEVER Figure 6 CRIMPING SPRING (2) http://www.molex.com UNCONTROLLED COPY Doc No: ATS-6381935HM Release Date: 07-25-08 Page 6 of 6 Revision: C Revision Date: 08-10-10...

This manual is also suitable for:

63819-357063819-3500
