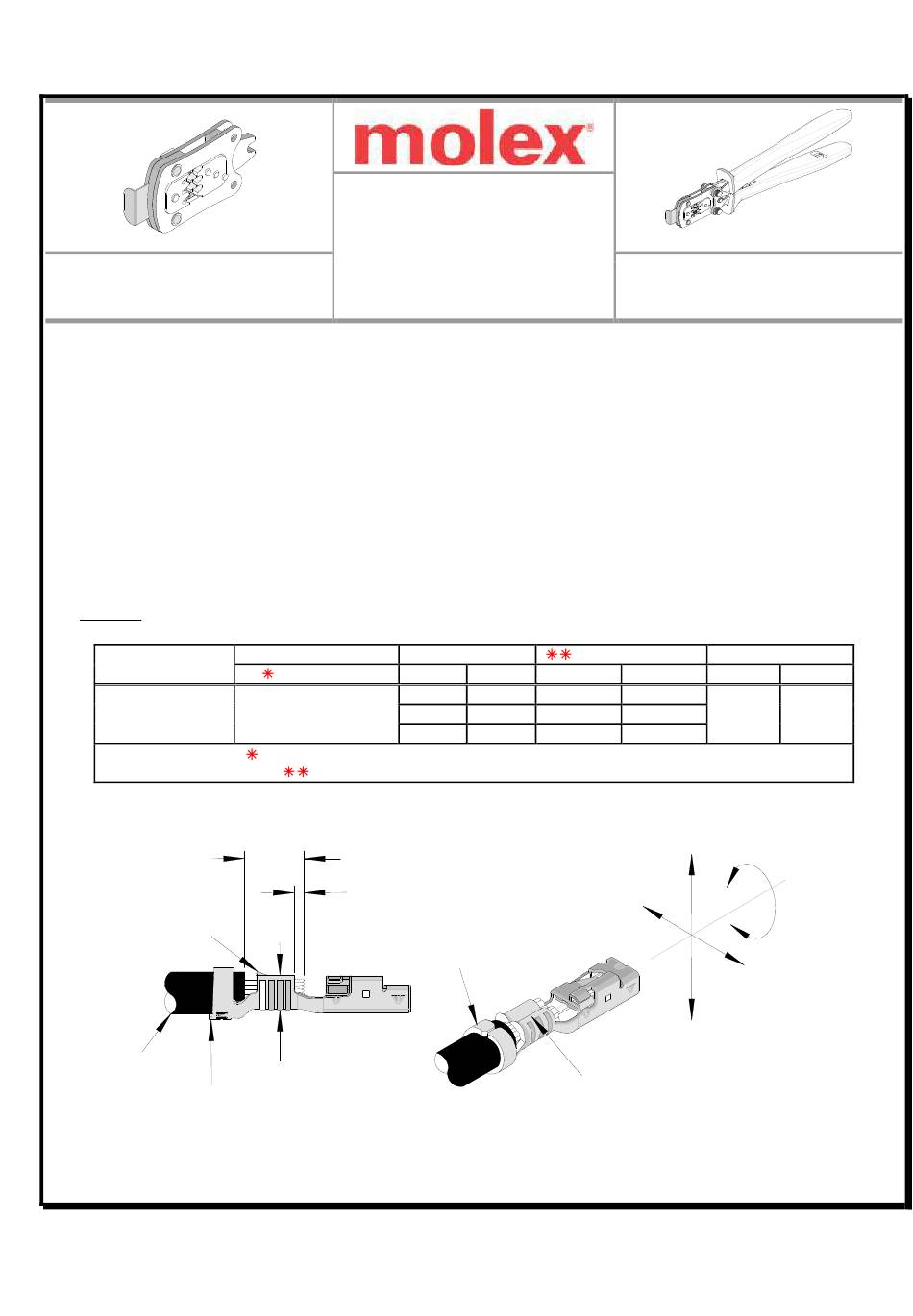

molex 207129 Series Specification Sheet

Hand Crimp Tool: for CTX280 Receptacle Terminals
Modular Crimp Head
Order No. 63819-8370

FEATURES

A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,
%
accompanied by Air Powered Crimp Adapter (Order No. 63816-0700).
Can also be used in the Battery Powered Tool Order No.63816-0200 (110 V) or 63816-0250 (220 V),
%
accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600).

SCOPE

Products: CTX280 Receptacle Terminals: 0.50-1.00mm
Terminal Series No.
98675

DEFINITION OF TERMS

BELL MOUTH
WIRE
CUT-OFF
TAB
Doc No: ATS-6381983HM
Revision: A
Application Tooling
Specification Sheet
Terminal Order No. Wire Size and Type
Reel Form Only
98675-0001, 98675-0011
98675-0021, 98675-0031
Customer to cut off terminal from reel: 0.30mm (.012") maximum Cut-off Tab.
See crimp specification for the individual Insulation Diameter.
STRIP LENGTH
CONDUCTOR
BRUSH
INSULATION CRIMP
▲SEE NOTE
CONDUCTOR
CRIMP
Release Date: 04-30-12
Revision Date: 04-30-12
2 metric, type ISO wire.
Insulation Diameter
Mm2 Type mm
0.50 ISO 1.40-1.60
0.75 ISO 1.60-1.90
1.00 ISO 1.75-2.10
TWISTING
SEAM
UNCONTROLLED COPY
TYPE 4A
Hand Crimp Tool
Order No. 63819-8300
Strip Length
In. mm
.055-.063
.063-.075 4.30-4.80 .169-.189
.069-.083
BEND UP
ROLLING
BEND
DOWN
In.
Page 1 of 6
