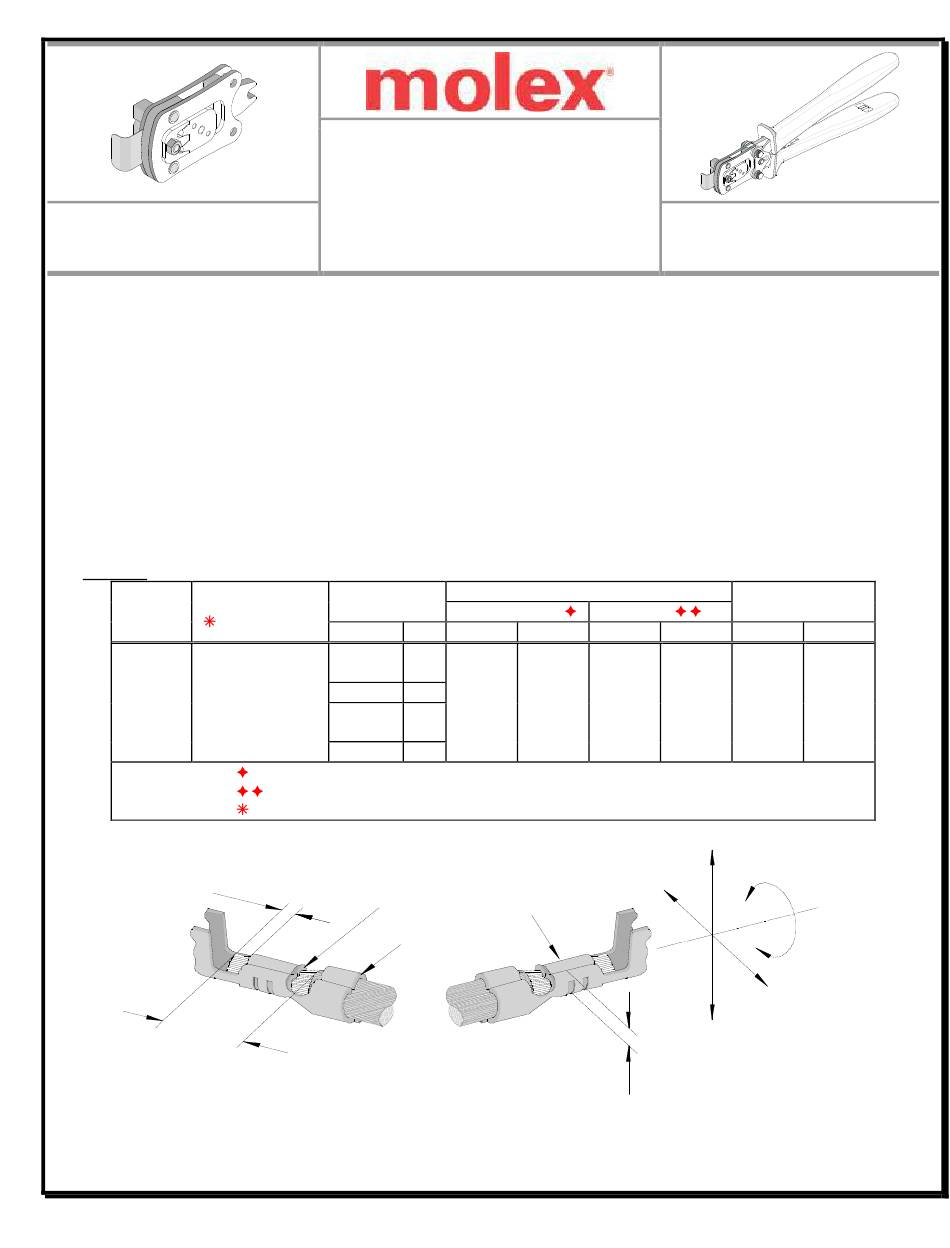

molex 207129 Series Specification Sheet

Hand Crimp Tool for OBD II 1.52mm (.060") Crimp Terminals
Modular Crimp Head
Order No. 63819-4770
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,
%
accompanied by Air Powered Crimp Adapter (Order No. 63816-0700).
Can also be used in the Battery Powered Tool Order No.63816-0200 (110 V) or 63816-0250 (220 V),
%
accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600).
SCOPE
Products: OBD II 1.52mm (.060") Crimp Terminal, 0.30-0.50mm² and 20-22 AWG.
Terminal Terminal Order No.
Series No. Reel Form Only
57964 57964-9702
DEFINITION OF TERMS
BRUSH
STRIP
LENGTH
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the
scope.
Doc No: ATS-6381947HM
Revision: B
Application Tooling
Specification Sheet
Wire Size
AWG mm²
AVS-0.3,
0.37
CAVS-0.3
22AWG 0.35
AVS-0.5,
0.56
CAVS-0.5
20AWG 0.50
To achieve optimum IPC-A620 insulation crimps, use this insulation OD range.
Overall insulation OD specification for terminal.
Customer to cut off terminal from reel: 0.25mm (.010") maximum Cut-off Tab.
BELL MOUTH
INSULATION
CRIMP
▲SEE NOTE
Release Date: 02-09-09
Revision Date: 08-11-10
Insulation Diameter
IPC/WHMA-A620 Terminal
mm In. mm
1.40-2.30 .055-.090 1.40-2.30 .055-.090 3.60-4.80 .142-.189
CONDUCTOR
CRIMP
CRIMP HEIGHT
UNCONTROLLED COPY
TYPE 4A
Hand Crimp Tool
Order No. 63819-4700
Strip Length
In. mm In.
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 6
