molex 207129 Series Manual

Hide thumbs Also See for 207129 Series:
1
2
3
4
5
6
Table of Contents

Advertisement

Quick Links

Download this manual

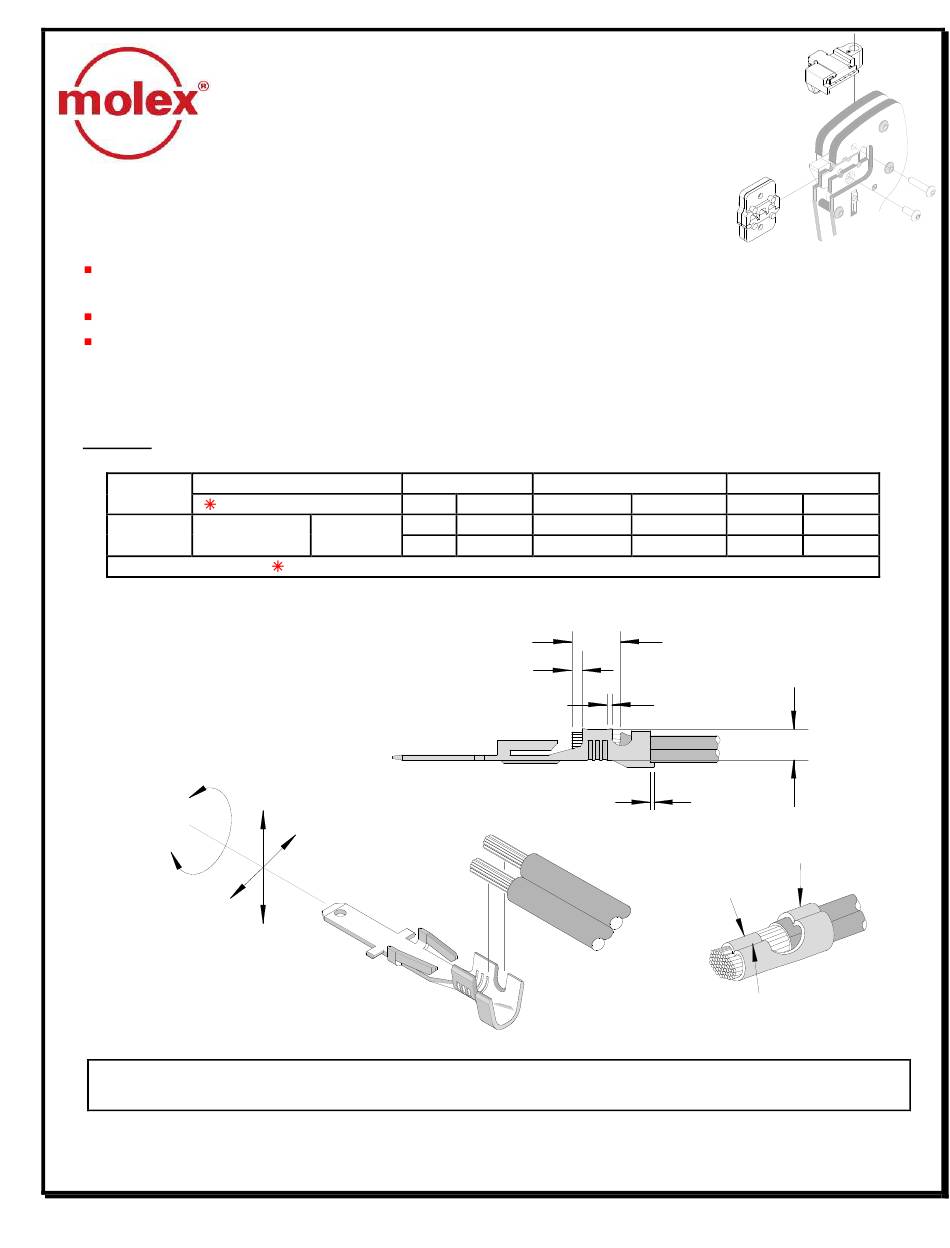

Tool Kit for "Sabre™ Crimp Terminals

FEATURES

Tool kits are easily installed into the 63816-0300 Power Crimp Head which is installed into the 63816-0200
(Order No. Battery Powered Tool).
Many different Tool kits can be used with a single Battery Powered Tool.
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant.

SCOPE

Products: Sabre™ Male Crimp Terminal 14-18 or Double 18 AWG wires placed vertically.
Terminal
Series No.
Available in Reel form only
43178-2001
43178
43178-6001

DEFINITION OF TERMS

ROLLING
CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage
can occur to the tool or dies.
Doc No: ATS-638112170
Revision: A
For Battery Powered Crimp Tools
SPECIFICATION SHEET
Order No. 63811-2170
Terminal Order No.
AWG
14-18
43178-2002
43178-6002
(2) 18
Follow the Cut-Off Tab specifications on Applicator specification sheets.
BEND UP
TWISTING
BEND
DOWN
Release Date: 04-05-10
Revision Date: 04-05-10
Tool Kit
Wire Size
Insulation Diameter
mm²
mm
2.00-0.80
3.03-4.57
(2) 0.80
(2) 2.79 Max.
STRIP LENGTH
BRUSH
CUT-OFF TAB
UNCONTROLLED COPY
Strip Length
in
mm
.119-.180
3.96-5.54
.156-.218
(2).110 Max.
3.96-5.54
.156-.218
CONDUCTOR
CRIMP HEIGHT
BELL MOUTH
INSULATION CRIMP
CONDUCTOR CRIMP
SEAM
in
Page 1 of 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 207129 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for molex 207129 Series

Summary of Contents for molex 207129 Series

  • Page 1 INSULATION CRIMP CONDUCTOR CRIMP BEND DOWN SEAM CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or dies. UNCONTROLLED COPY Doc No: ATS-638112170 Release Date: 04-05-10 Page 1 of 6...
  • Page 2 Tool Kit for “Sabre™ Crimp Terminals The chart below shows all applications for this Tool Kit. Tool Kit Order No. Tool Order no. Tool Description Figure No. 63816-1050 Hand Crimp Frame (Short) 63811-2170 63816-1000 Hand Crimp Frame (Long) 63816-0200 Battery Power Tool Applications for the Tool Kit Hand Crimp Tool Battery Powered Tool...
  • Page 3 Tool Kit for “Sabre™ Crimp Terminals INSTALLATION To install the Tool Kit into the Power Crimp Head follow the steps below: Anvils and Punches Installation 1. Insert the Anvils into the bottom slots of the nest. Install the M4 x 10 long BHCS and tighten in place. 2.
  • Page 4 Tool Kit for “Sabre™ Crimp Terminals TERMINAL SWING OPEN LOCATOR LOCATOR PUSH HERE TO TERMINAL IN PLACE OPEN WIRE STOP Figure 5 3. Some terminals with large insulation grips may interfere with the crimp tooling when swinging the locator into position.
  • Page 5 12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than 25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull testing.
  • Page 6 2222 Wellington Ct. 1-800-78MOLEX 81-462-65-2324 65-6-268-6868 49-89-413092-0 Lisle, IL 60532 U.S.A. amerinfo@molex.com feninfo@molex.com fesinfo@molex.com eurinfo@molex.com 630-969-4550 Fax: 630-969-1352 Visit our Web site at http://www.molex.com UNCONTROLLED COPY Doc No: ATS-638112170 Release Date: 04-05-10 Page 6 of 6 Revision: A Revision Date: 04-05-10...
