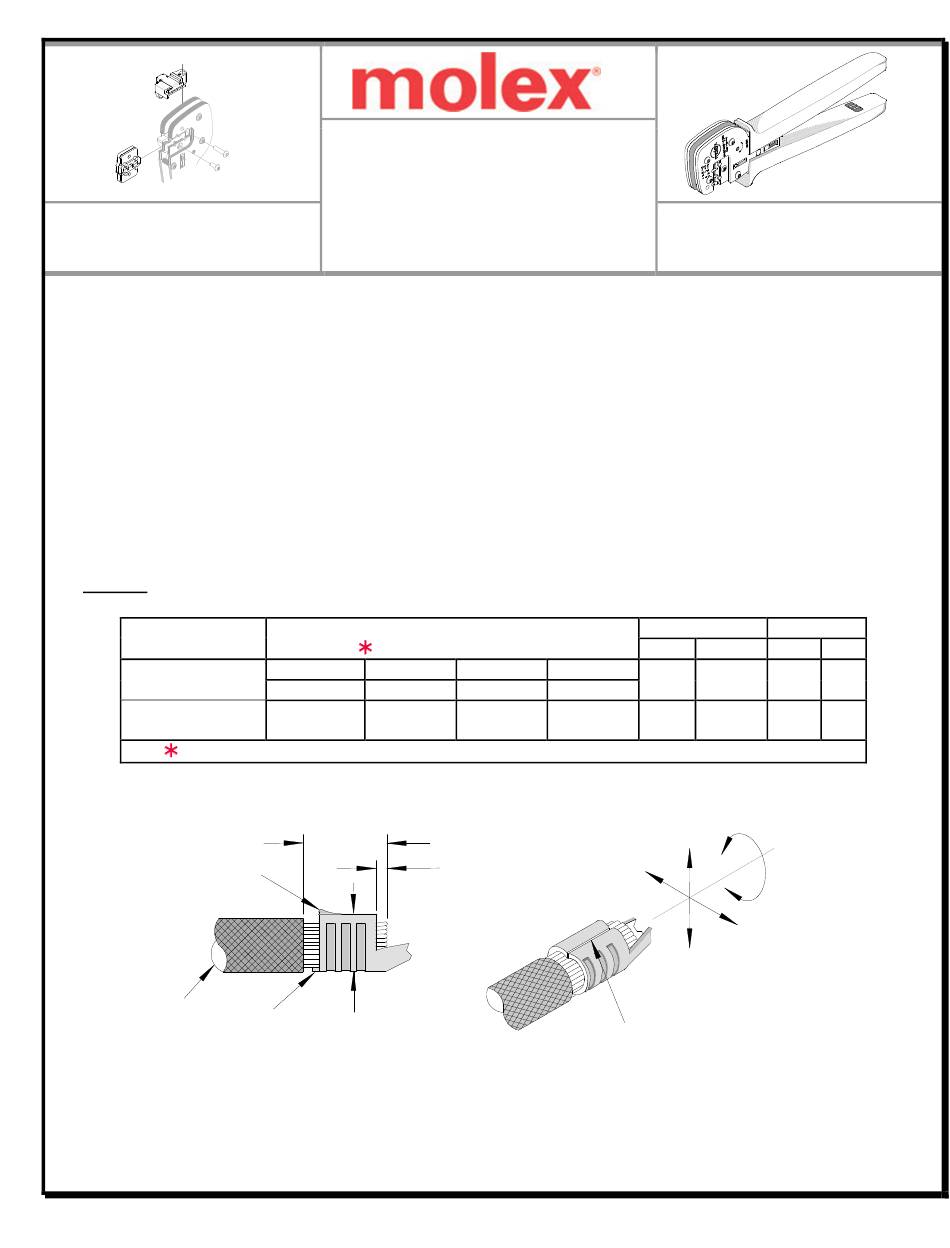

molex 207129 Series Specification Sheet

Hand crimp tool
Hide thumbs Also See for 207129 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Tool Kit for 9.14mm (.360") Pitch Crimp Terminal.
Tool Kit
Order No. 63819-5670
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head, which is installed
%
into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool
Many different Tool kits can be used with a single Battery Powered Tool
%
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant
%
SCOPE
Products: 9.14mm (.360") Pitch Crimp Terminal, Power Contact, 8 and (2)12 AWG.
Terminal Series No.
44262
173693
The terminals above are reeled parts only. Customer to cut off terminal from reel 0.40mm (.016") maximum.
DEFINITION OF TERMS
BELL MOUTH
WIRE
CUT-OFF
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the scope.
Doc No: ATS-6381956HM Release Date: 11-05-08
Revision: D
Application Tooling
Specification Sheet
Terminal Order No.
Available in Reel form only
44262-4304
44262-4404
44262-4334
44262-4434
173693-4634
CONDUCTOR
TAB
CRIMP
Revision Date: 02-14-17
44262-4504
44262-4604
44262-4534
44262-4634
STRIP LENGTH
CONDUCTOR
BRUSH
SEAM
UNCONTROLLED COPY
TYPE 4C
Hand Crimp Tool
Order No. 63819-5600
Wire Size
Strip Length
AWG
mm²
mm
8 and,
8.50 and
6.35
(2) 12
(2) 3.31
8 and,
8.50 and
6.35
(2) 12
(2) 3.31
BEND UP
ROLLING
TWISTING
BEND
DOWN
in
.25
.25
Page 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 207129 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for molex 207129 Series

Summary of Contents for molex 207129 Series

  • Page 1 Tool Kit for 9.14mm (.360") Pitch Crimp Terminal. TYPE 4C Application Tooling Specification Sheet Tool Kit Hand Crimp Tool Order No. 63819-5670 Order No. 63819-5600 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomically designed soft handles Precisely designed crimping profiles with simple contact positioning Easy handling due to outstanding force ratio Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head, which is installed into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool...

  • Page 2: Installation

    Pull force value must exceed the minimum pull force specifications listed. CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or die.

  • Page 3: Operation

    Tool Kit for 9.14mm (.360") Pitch Crimp Terminal. Locator Installation and Removal Follow the steps below to install or replace the locator. See Figure 2. TERMINAL To install the locator LOCATOR 1. Position the locator with the hole over the brass pivot shaft, and snap it into place.

  • Page 4: Maintenance

    Tool Kit for 9.14mm (.360") Pitch Crimp Terminal. 3. Press down on the wire stop on the locator as shown in Figure 4. Insert the proper terminal into the proper nest opening. Make sure when choosing the nest opening that it will correspond with the 8 or (2)12 profile on the hand tool.

  • Page 5: Warranty

    All tools are warranted to be free of manufacturing defects for a period of 30 days. Should such a defect occur, Molex will repair or exchange the tool kit free of charge. This repair or exchange will not be applicable to altered, misused or damaged tools.
  • Page 6 Tool Kit for 9.14mm (.360") Pitch Crimp Terminal. The chart below shows all applications for this Tool Kit: Tool Kit Tool Tool Power Head Adapter Figure Order No. Order No. Description Order No. Description 63810-1050 Hand Crimp Frame (Short) 63810-1000 Hand Crimp Frame (Long) 63819-5670 63816-0200 Battery Power Tool (110 V) 63816-0300 Power Crimp Head 63816-0250 Battery Power Tool (220 V) 63816-0300 Power Crimp Head...

  • Page 7: Hand Tool Parts List

    Tool Kit for 9.14mm (.360") Pitch Crimp Terminal. HAND TOOL PARTS LIST Item Number Order Number Description Quantity 63810-1000 Hand Crimp Frame (Long) 63819-5670 Tool Kit with Locator 63811-4773 Locator Base 63819-5675 Locator (only) M4 X 8mm LONG BHCS RATCHET RELEASE SCREW WITH TOOL KIT LOCATOR ONLY...

  • Page 8: Power Head Parts List

    BHCS M4 by 18 Long BHCS M4 by 10 Long BHCS Figure 11 Application Tooling Support Phone: +1-402-458-TOOL (8665) E-Mail: applicationtooling@molex.com Website: www.molex.com/applicationtooling UNCONTROLLED COPY Doc No: ATS-6381956HM Release Date: 11-05-08 Page 8 of 8 Revision: D Revision Date: 02-14-17...
