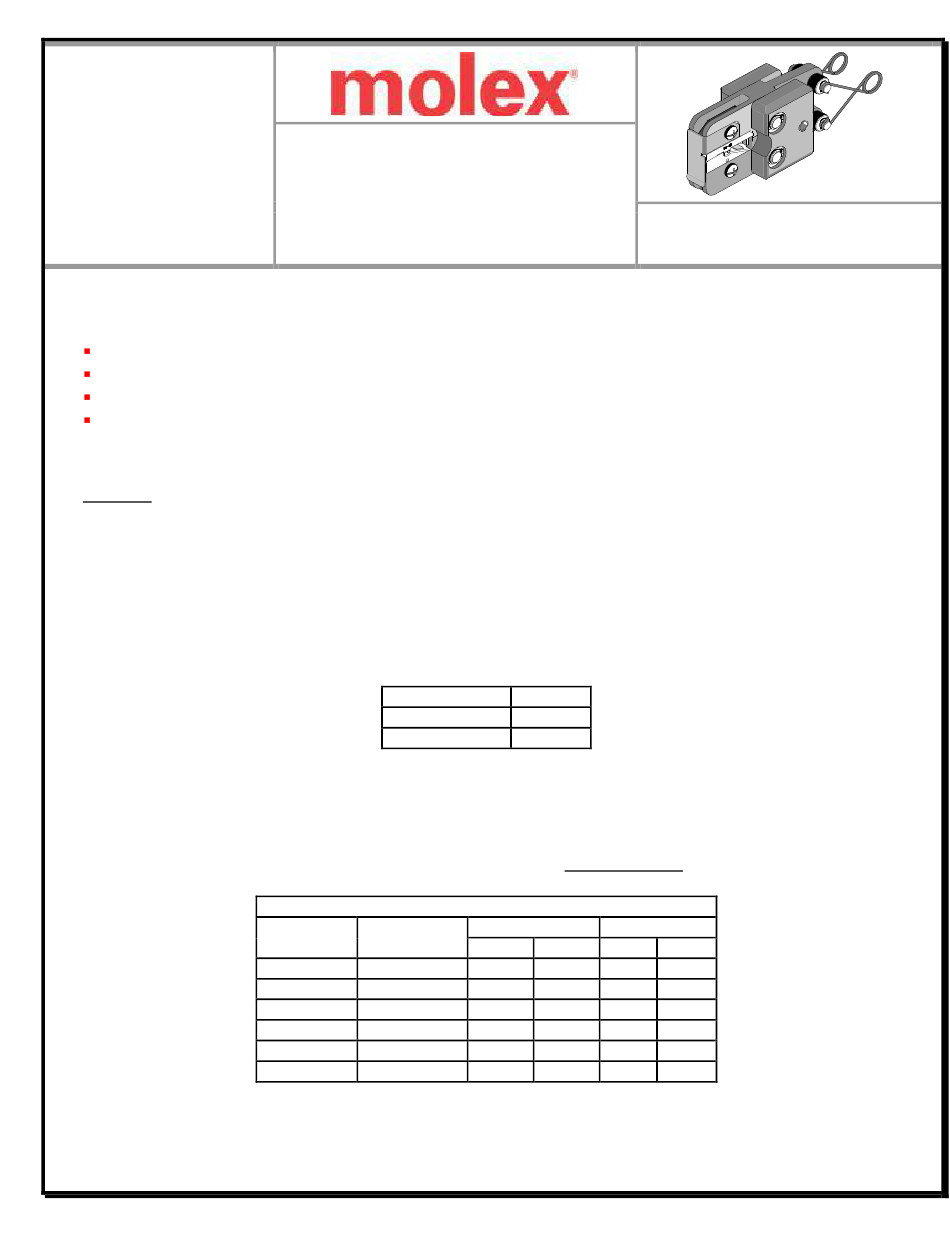

AT1400 Air Crimp Head Tool
Air Powered
Crimp Tool Head
Krimptite
FEATURES
Quick-change tool head for the 19279-0001 (AT-200)
Tooling kit is interchangeable with other kits in the 64001 and 64003 Series
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
Pneumatic powered crimp tools help reduce fatigue and discomfort from repetitive manual crimping
SCOPE
Products: Krimptite™ Flag Ring and Spade Terminals 10–12 AWG. This tool head is intended for use in the
19279-0001 (AT-200) either hand held or with optional bench adapter 19078-0307 (ATBA) and foot switch.
Testing
Mechanical
The tensile test, or pull test, is a means of evaluating the mechanical properties of the crimped connections.
The following chart shows the specifications for various wire sizes. The tensile strength is shown in pounds
and indicates the minimum acceptable force to break or separate the terminal from the conductor.
The following is a partial list of the product part numbers and their specifications that this tool is designed to run.
We will be adding to this list and an up to date copy is available on www.molex.com.
Doc No. ATS-640073100
Revision: C
Application Tooling
Specification Sheet
Wire Size (AWG)
12
10
*These terminals are not UL Approved
Wire Size: 10 – 12 AWG 5.00 – 3.00mm²
Terminal
Terminal No.
Eng No. (REF)
19041-0013
C-144-06
19041-0014
C-144-08
19041-0015
C-144-10
19042-0010
C-149-06
19042-0011
C-149-08
19042-0013
C-149-10
Release Date: 06-08-04
Revision Date: 10-13-06
*Min. Pull
50
60
Wire Strip Length
Insul. Dia. Max.
In.
mm
In.
.266
6.75
N/A
.266
6.75
N/A
.266
6.75
N/A
.266
6.75
N/A
.266
6.75
N/A
.266
6.75
N/A
UNCONTROLLED COPY
Order No. 64007-3100
Engineering No. AT 1400
mm
N/A
N/A
N/A
N/A
N/A
N/A
Page 1 of 6
