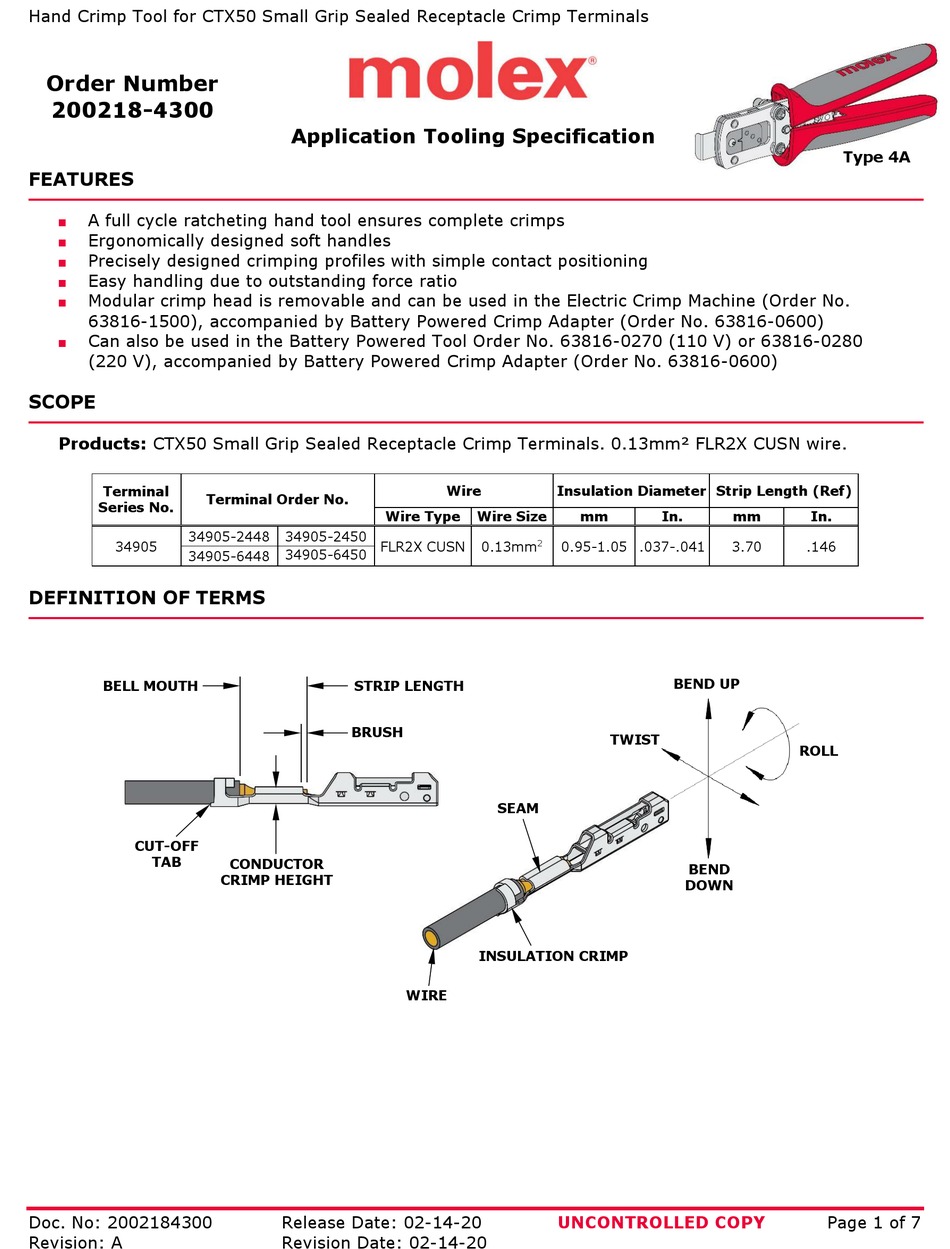

Hand Crimp Tool for CTX50 Small Grip Sealed Receptacle Crimp Terminals
Order Number
200218-4300
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomically designed soft handles
Precisely designed crimping profiles with simple contact positioning
Easy handling due to outstanding force ratio
Modular crimp head is removable and can be used in the Electric Crimp Machine (Order No.
63816-1500), accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600)
Can also be used in the Battery Powered Tool Order No. 63816-0270 (110 V) or 63816-0280
(220 V), accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600)
SCOPE
Products: CTX50 Small Grip Sealed Receptacle Crimp Terminals. 0.13mm² FLR2X CUSN wire.
Terminal
Terminal Order No.
Series No.
34905-2448
34905
34905-6448
DEFINITION OF TERMS
BELL MOUTH
CUT-OFF
TAB
Doc. No: 2002184300
Revision: A
Application Tooling Specification
Wire Type
34905-2450
FLR2X CUSN
34905-6450
STRIP LENGTH
BRUSH
CONDUCTOR
CRIMP HEIGHT
Release Date: 02-14-20
Revision Date: 02-14-20
Wire
Insulation Diameter Strip Length (Ref)
Wire Size
mm
0.13mm
2
0.95-1.05 .037-.041
SEAM
INSULATION CRIMP
WIRE
UNCONTROLLED COPY
In.
mm
3.70
BEND UP
TWIST
BEND
DOWN
Type 4A
In.
.146
ROLL
Page 1 of 7
