molex 207129 Series Specification Sheet

Type 7 hand crimp tool 1.25mm (.049”) / 2.00 (.078”) wire-to-board crimp terminal
Hide thumbs Also See for 207129 Series:
1
2
3
4
5

Advertisement

Table of Contents

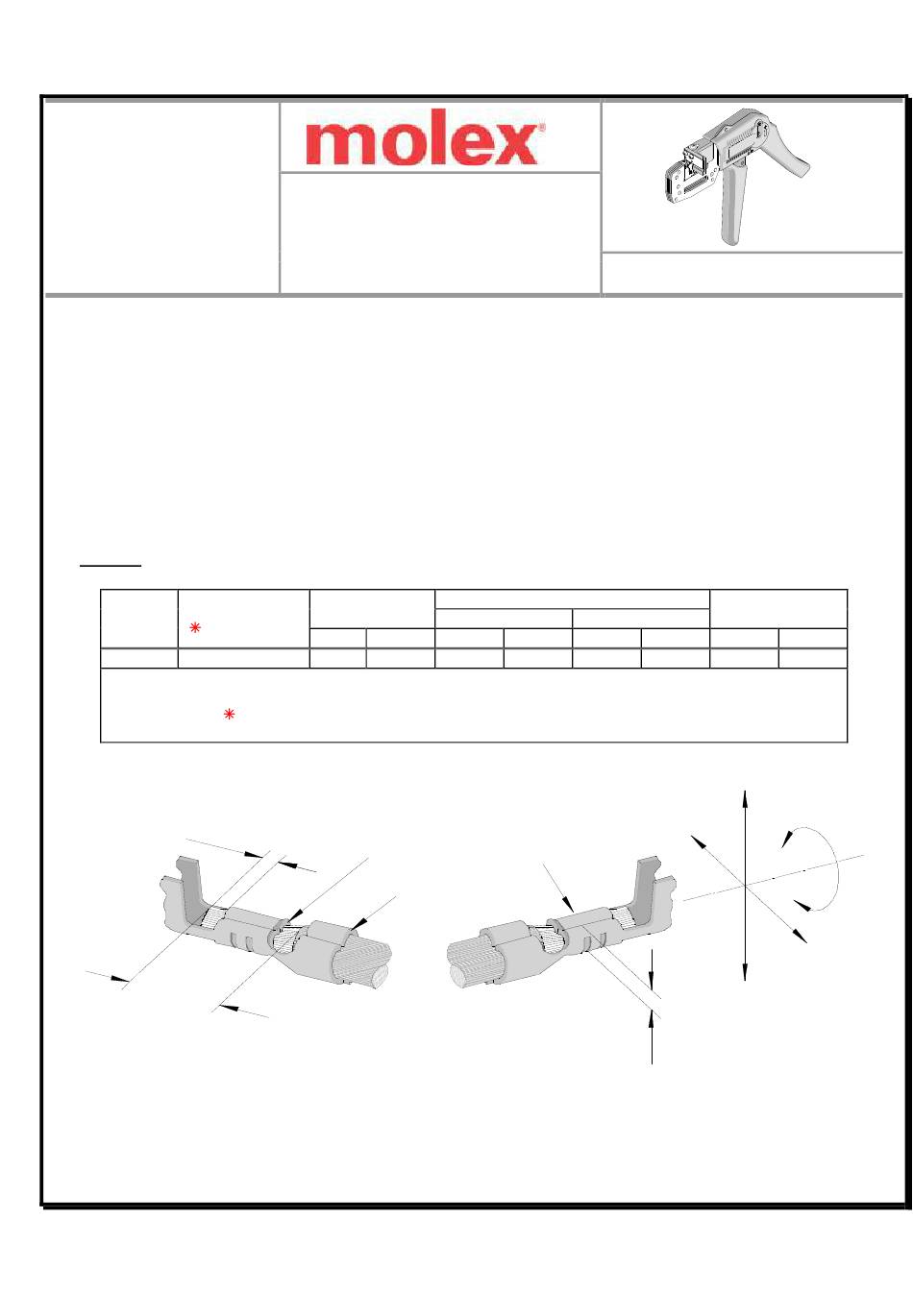

Hand Crimp Tool 1.25mm (.049") / 2.00 (.078") Wire-to-Board Crimp Terminal
HAND CRIMP
TOOL

FEATURES

A full cycle ratcheting hand tool ensures complete crimps
%
This tool is designed to be used with reeled product due to the small size of the connector
%
This tool is designed for prototype work only and is not designed for production
%
The reeled product must be cut into 5-inch strips to be processed in this hand tool
%
This tool is IPC/WHMA A-620 Class 2 compliant as indicated
%
This tool is RoHS compliant, however RoHS compliant is not required
%

SCOPE

Products: 1.25mm (.049") / 2.00 (.078") Wire-to-Board Crimp Terminal, 28-30 AWG.
Terminal
Terminal Order No.
Series No.
Reel Form Only
104466
104466-8002
1. To achieve optimum IPC-A620 insulation crimps, use this insulation OD range.
2. Overall insulation OD specification for terminal.
●
DEFINITION OF TERMS
BRUSH
STRIP
LENGTH
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the
scope.
Doc No: ATS-638253300
Revision: A
Application Tooling
Specification Sheet
Wire Size
AWG
mm²
●28-30 0.08-0.05 0.80-1.00 .032-.039 0.80-1.00 .032-.039 1.40-1.90 .055-.075
Customer to cut off terminal from reel: 0.15mm (.006") maximum Cut-off Tab.
Requires Separate Insulation Punch for 28 and 30 AWG. See Page 6.
BELL MOUTH
INSULATION
CRIMP
Release Date: 06-25-12
Revision Date: 06-25-12
Insulation Diameter
IPC/WHMA-A620 (1)
Terminal (2)
mm
In.
mm
CONDUCTOR
CRIMP
CRIMP HEIGHT
UNCONTROLLED COPY
TYPE 7
Order No. 63825-3300
Strip Length
In.
mm
In.
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 5
