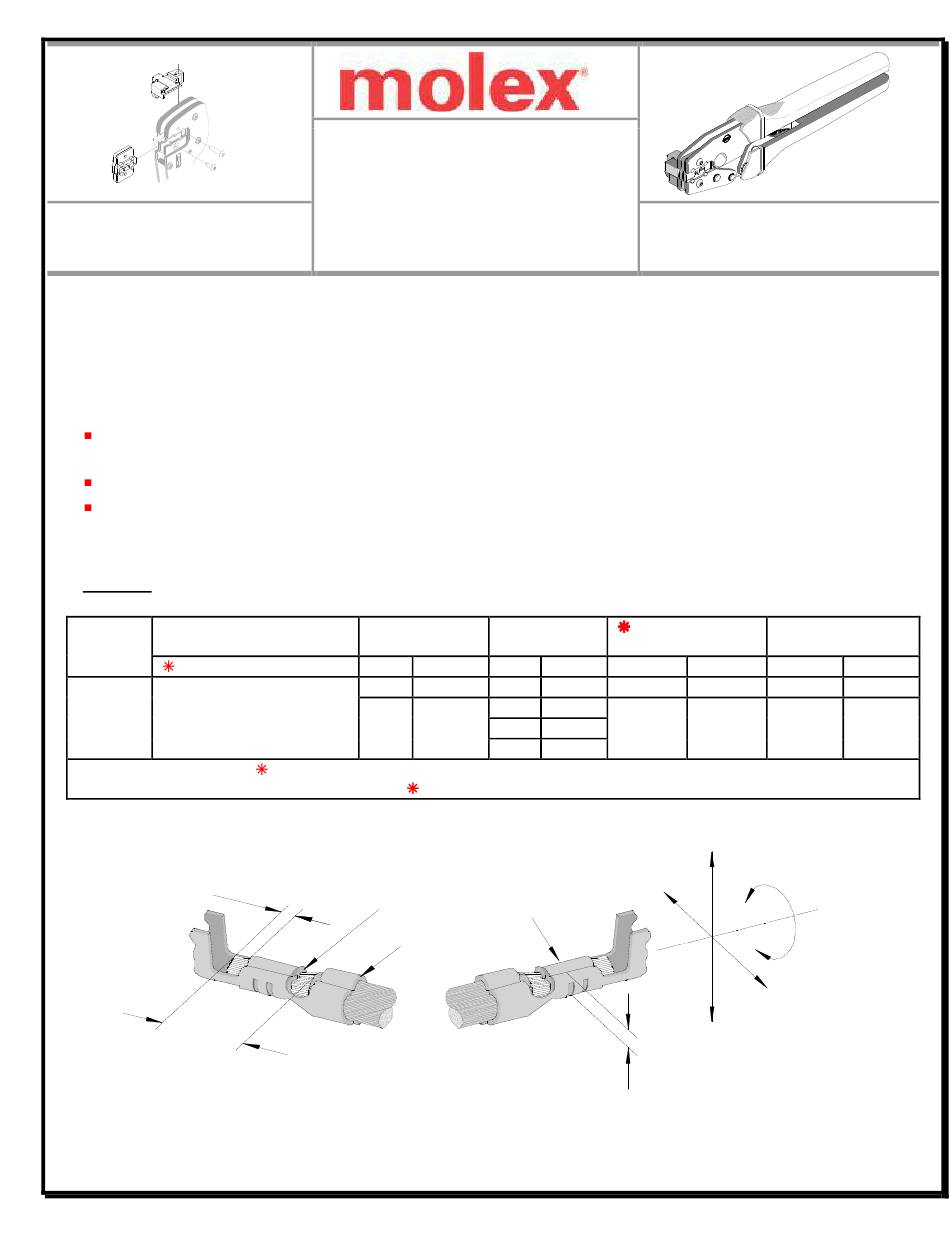

molex 207129 Series Specification Sheet

Hand crimp tool
Hide thumbs Also See for 207129 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Tool Kit for Pico-SPOX™ Crimp Terminals
Tool Kit
Order No. 63811-6470
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed
into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
Many different Tool kits can be used with a single Battery Powered Tool.
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant.
SCOPE
Products: 1.50mm (.059") Pico-SPOX™ Crimp Terminal, Female, 24-30 AWG.
Terminal Order No.
Terminal
Series No.
Available in Reel form only
87421
87421-0000
DEFINITION OF TERMS
BRUSH
STRIP
LENGTH
Doc No: ATS-6381164HM Release Date: 06-19-06
Revision: C
Application Tooling
Specification Sheet
Wire Size
AWG
mm²
24
0.20
26-30
0.12-0.05
Customer to cut off terminal from reel: 0.29mm (.011") maximum Cut-off Tab.
See Conditions on page 2.
BELL MOUTH
INSULATION
CRIMP
▲SEE NOTE
Revision Date: 10-06-10
Insulation Diameter
Wire Type
Maximum
AWG
Type
mm
24
UL1061
1.15
26
UL1061
28
UL1061
1.00
30
UL1571
CONDUCTOR
CRIMP
CRIMP HEIGHT
UNCONTROLLED COPY
TYPE 2C
Hand Crimp Tool
Order No. 63811-6400
Strip Length
In.
mm
.045
1.05-1.54
.041-.061
.039
1.05-1.54
.041-.061
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 9
In.
