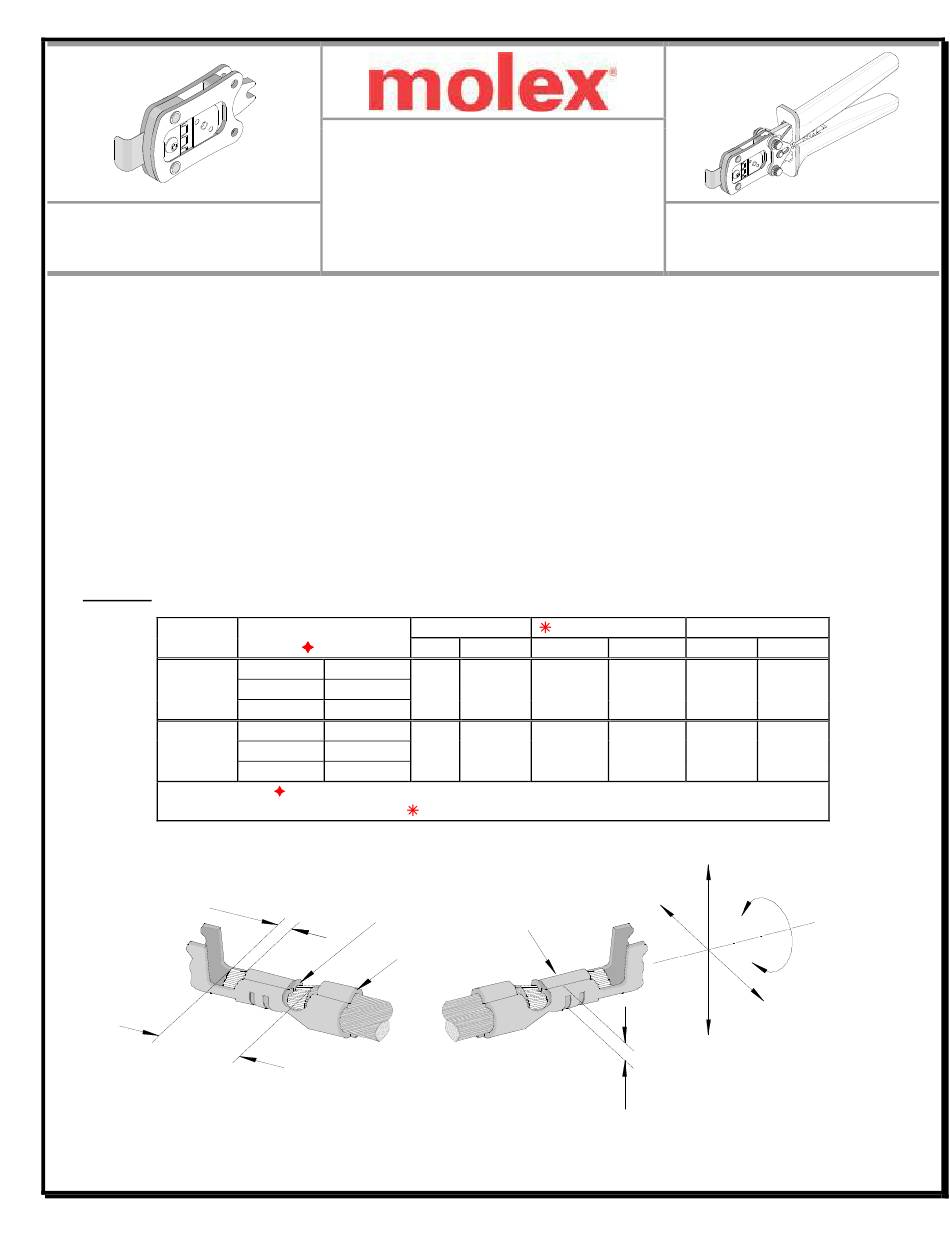

Hand Crimp Tool for 2.00/2.50mm (.079/.098") Board-In Crimp Terminals
Modular Crimp Head
Order No. 63811-7770
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
A-620 Class 3 compliant and RoHS compliant
%
Modular Crimp Head is removable and can be use in the Air Powered Tool Order No.63816-0100,
%
accompanied by Air Powered Crimp Adapter (Order No. 63816-0700).
Can also be used in the Battery Powered Tool Order No.63816-0200 (110 V) or 63816-0250 (220 V),
%
accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600).
SCOPE
Products: 2.00/2.50mm (.079/.098") Board-In Terminal, 22-28 AWG.
Terminal
Series No.
35044
35044
DEFINITION OF TERMS
BRUSH
STRIP
LENGTH
The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the scope.
Doc No: ATS-6381177HM
Revision: B
Application Tooling
Specification Sheet
Terminal Order No.
Reel
AWG
35044-9101 35044-9160
35044-9102 35044-9210
24-28 0.20-0.08 0.90-1.50
35044-9110 35044-9260
35044-9103 35044-9360
35044-9104 35044-9410
22-28 0.35-0.08 1.20-1.90
35044-9310 35044-9460
Follow the Cut-Off Tab specifications on Applicator specification sheets
See Conditions on page 2.
BELL MOUTH
INSULATION
CRIMP
▲SEE NOTE
Release Date: 08-29-07
Revision Date: 08-02-10
Wire Size
Insulation Diameter
mm²
mm
.035-.059 3.00-3.50 .118-.138
.047-.075 3.00-3.50 .118-.138
CONDUCTOR
CRIMP
CRIMP HEIGHT
UNCONTROLLED COPY
TYPE 4A
Hand Crimp Tool
Order No. 63811-7700
Strip Length
In.
mm
In.
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 7
