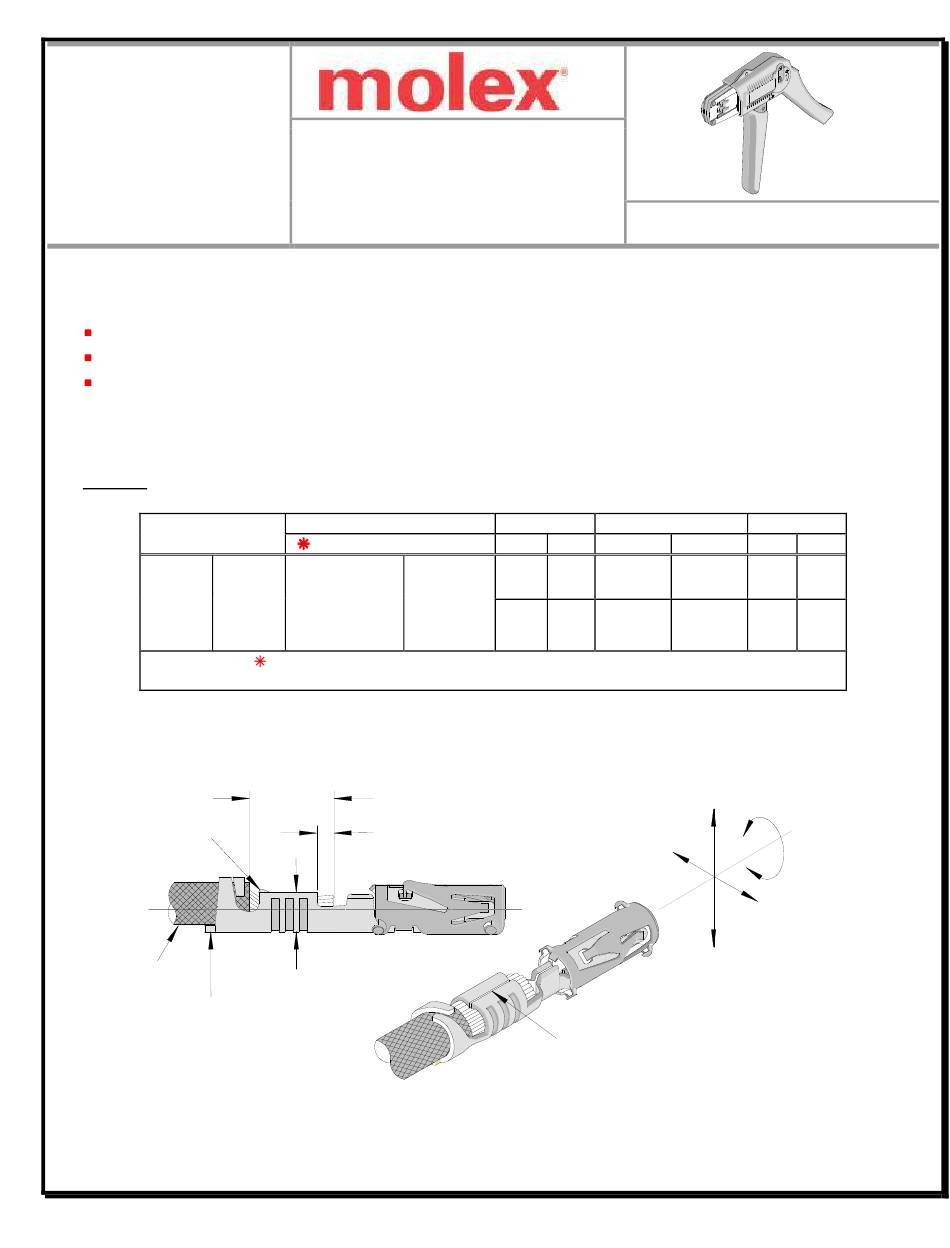

Hand Crimp Tool for 0.60mm (.027") CP 0.6 Series Crimp Terminals
HAND CRIMP
TOOL

FEATURES

A full cycle ratcheting hand tool ensures complete crimps
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
This tool is WHMA-IPCA620 Class 3 only with specified wire types and RoHS compliant

SCOPE

Products: 0.60mm (.027") CP 0.6 Female Crimp Terminal CMC connector 0.22-0.35mm
Terminal Series No.
98913
64322
Note: Terminal will accommodate the thin wall small insulation with the IR or ID type Metric wires.
DEFINITION OF TERMS
BELL MOUTH
WIRE
CUT-OFF
TAB
Doc No: ATS-638119100
Revision: F
Application Tooling
Specification Sheet
Terminal Order No.
Available in Reel form only
98913-1019
64322-1019
98913-1229
64322-1229
98913-1329
64322-1329
98913-1349
64322-1349
98913-3019
Customer to cut off terminal from reel: 0.30mm (.012") maximum Cut-off Tab.
STRIP LENGTH
CONDUCTOR
BRUSH
CONDUCTOR
CRIMP HEIGHT
Release Date: 02-12-07
Revision Date: 11-22-10
Wire Size
Insulation Diameter
AWG
mm²
mm
0.35
1.25-1.40
0.22
1.15-1.25
SEAM
UNCONTROLLED COPY
TYPE 7
Order No. 63811-9100
2
.
Strip Length
In.
mm
In.
.049-.055
3.50
.138
.045-.049
3.50
.138
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 207129 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for molex 207129 Series

Summary of Contents for molex 207129 Series

  • Page 1 Hand Crimp Tool for 0.60mm (.027") CP 0.6 Series Crimp Terminals HAND CRIMP TOOL Application Tooling TYPE 7 Specification Sheet Order No. 63811-9100 FEATURES A full cycle ratcheting hand tool ensures complete crimps A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position This tool is WHMA-IPCA620 Class 3 only with specified wire types and RoHS compliant SCOPE Products: 0.60mm (.027") CP 0.6 Female Crimp Terminal CMC connector 0.22-0.35mm...
  • Page 2 Minimum pull force specifications listed. OPERATION CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or die. Open the tool by squeezing the handles together, at the end of the closing stroke, the ratchet mechanism will release the handles, and the hand tool will spring open.
  • Page 3 Hand Crimp Tool for 0.60mm (.027") CP 0.6 Series Crimp Terminals WIRE IS UP AGAINST Maintenance THE WIRE STOP TERMINAL It is recommended that each operator of the tool be made aware of, and responsible for, the following maintenance steps: WIRE 1.
  • Page 4 12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than 25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull testing.
  • Page 5 Hand Crimp Tool Figure 5 63811-9175 Locator 11-11-0320 Spring (Ratchet) 63600-0479 Spring (Main) 69008-0972 Adjuster Wheel M3 X 6LG BHCS Figure 5 http://www.molex.com UNCONTROLLED COPY Doc No: ATS-638119100 Release Date: 02-12-07 Page 5 of 5 Revision: F Revision Date: 11-22-10...
