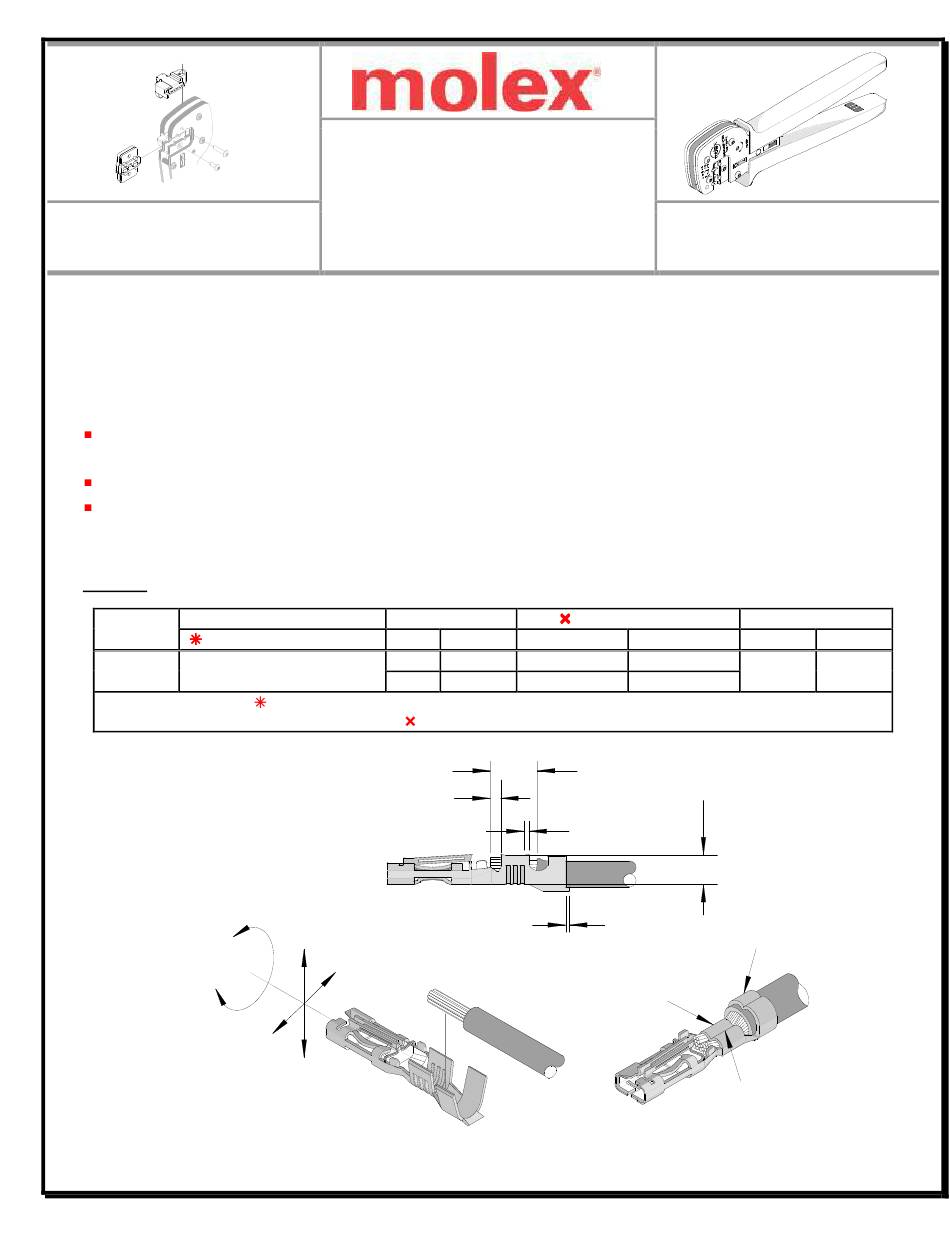

Tool Kit for Sabre™ Flat Blade Crimp Terminal
Tool Kit
Order No. 63811-7370
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
%
Ergonomically designed soft handles
%
Precisely designed crimping profiles with simple contact positioning
%
Easy handling due to outstanding force ratio
%
Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed
into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
Many different Tool kits can be used with a single Battery Powered Tool.
This tool is IPC/WHMA-A-620 Class 2 and RoHS compliant.
SCOPE
Products: Sabre™ Female Flat Blade Crimp Terminal, 14-18 or double 18 AWG (wires placed vertically).
Terminal Order No.
Terminal
Series No.
Available in Reel form only
43375
DEFINITION OF TERMS
ROLLING
TWISTING
Doc No: ATS-6381173HM Release Date: 02-12-07
Revision: C
Application Tooling
Specification Sheet
Wire Size
AWG
14-18
43375-1001
(2) 18
Customer to cut off terminal from reel: 0.30mm (.012") maximum Cut-Off Tab.
See Conditions on Page 2.
STRIP LENGTH
BRUSH
BEND UP
BEND
DOWN
Revision Date: 09-09-10
Insulation Diameter
mm²
mm
2.00-0.80
3.05-4.57
(2) 0.80
(2) X 2.79 Max.
BELL MOUTH
CUT-OFF TAB
CONDUCTOR
UNCONTROLLED COPY
Hand Crimp Tool
Order No. 63811-7300
Strip Length
in
mm
.120-.180
3.96-5.54
(2) X .110 Max.
CONDUCTOR
CRIMP HEIGHT
INSULATION CRIMP
▲SEE NOTE
CRIMP
SEAM
TYPE 4C
in
.156-.218
Page 1 of 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 207129 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for molex 207129 Series

Summary of Contents for molex 207129 Series

  • Page 1 Tool Kit for Sabre™ Flat Blade Crimp Terminal TYPE 4C Application Tooling Specification Sheet Tool Kit Hand Crimp Tool Order No. 63811-7370 Order No. 63811-7300 FEATURES A full cycle ratcheting hand tool ensures complete crimps Ergonomically designed soft handles Precisely designed crimping profiles with simple contact positioning Easy handling due to outstanding force ratio Tool kits are easily installed into the Hand Crimp Tool or the 63816-0300 Power Crimp Head which is installed into the 63816-0200 (110 V) or the 63816-0250 (220 V) Battery Powered Tool.
  • Page 2 Tool Kit for Sabre™ Flat Blade Crimp Terminal OVERLAP FORM GEOMETRY ▲Insulation Crimp Note: PUNCH Due to the terminal’s insulation grip design and/or insulation diameter range, this tool uses “overlap” form geometry in the insulation punch. This produces an overlap insulation crimp (A620 –...

  • Page 3: Installation

    Pull Force value must exceed the minimum pull force specifications listed. CAUTION: Install only Molex terminals listed above with this tool. Do not crimp hardened objects as damage can occur to the tool or die.

  • Page 4: Operation

    Tool Kit for Sabre™ Flat Blade Crimp Terminal Locator Installation and Removal TERMINAL Follow the steps below to install or replace the locator. See Figure 2. To install the locator 1. Position the locator with the hole over the brass pivot shaft and snap it into place.

  • Page 5: Maintenance

    Tool Kit for Sabre™ Flat Blade Crimp Terminal 7. Remove the crimped terminal from the terminal locator by pressing down on the wire stop and gently pulling on the wire. The terminal locator can be in either position. 8. Visually inspect the crimped terminal for proper crimp location. HANDLE WIRE AGAINST OPEN...

  • Page 6: Warranty

    12.7mm (1/2”) long, so there is no crimping of the insulation. Pull the terminal and wire at a rate no faster than 25mm (1.00”) per minute. See the Molex web site for the Quality Crimp Handbook for more information on pull testing.
  • Page 7 Tool Kit for Sabre™ Flat Blade Crimp Terminal The chart below shows all applications for this Tool Kit. Tool Kit Tool Tool Power Head Adapter Figure Order No. Order no. Description Order No. Description 63810-1050 Hand Crimp Frame (Short) 63810-1000 Hand Crimp Frame (Long) 63811-7370 63816-0200 Battery Power Tool (110 V) 63816-0300 Power Crimp Head 63816-0250 Battery Power Tool (220 V) 63816-0300 Power Crimp Head...

  • Page 8: Hand Tool Parts List

    Tool Kit for Sabre™ Flat Blade Crimp Terminal HAND TOOL PARTS LIST Item Number Order Number Description Quantity 63810-1000 Hand Crimp Frame (Long) 63811-7370 Tool Kit with Locator 63811-5573 Locator Base 63811-7375 Locator (only) M4 X 8mm LONG BHCS RATCHET RELEASE SCREW WITH TOOL KIT LOCATOR ONLY...

  • Page 9: Power Head Parts List

    Power Crimp Head 63811-7370 63811-7370 Tool Kit M4 by 8 Long BHCS M4 by 18 Long BHCS M4 by 10 Long BHCS Figure 11 http://www.molex.com UNCONTROLLED COPY Doc No: ATS-6381173HM Release Date: 02-12-07 Page 9 of 9 Revision: C Revision Date: 09-09-10...
