11. Installation - Slide Bar Assembly

1) Place mounting plate in position. Mark and drill 3/16"
holes for tile anchors, 5/16" holes for drywall anchors.
Install anchors (FIGURE 11.1).
Note: For dry wall 1/2" thick or less, insert anchor tool
into drywall anchor to secure behind wall prior to
installing wall cradle.
2) Remove cover of hand shower cradle. Install cradle
and mounting plate. Secure with three screws. Replace
cover on hand shower cradle (FIGURE 11.2).
3) Install wall elbow to stub out pipe. Tighten set screw to
secure (FIGURE 11.3).
4) Attach small end of hand shower hose to wall elbow.
Turn clockwise to tighten (FIGURE 11.4).
5) Attach large end of hand shower hose to hand shower
wand. Turn clockwise to tighten (FIGURE 11.5).

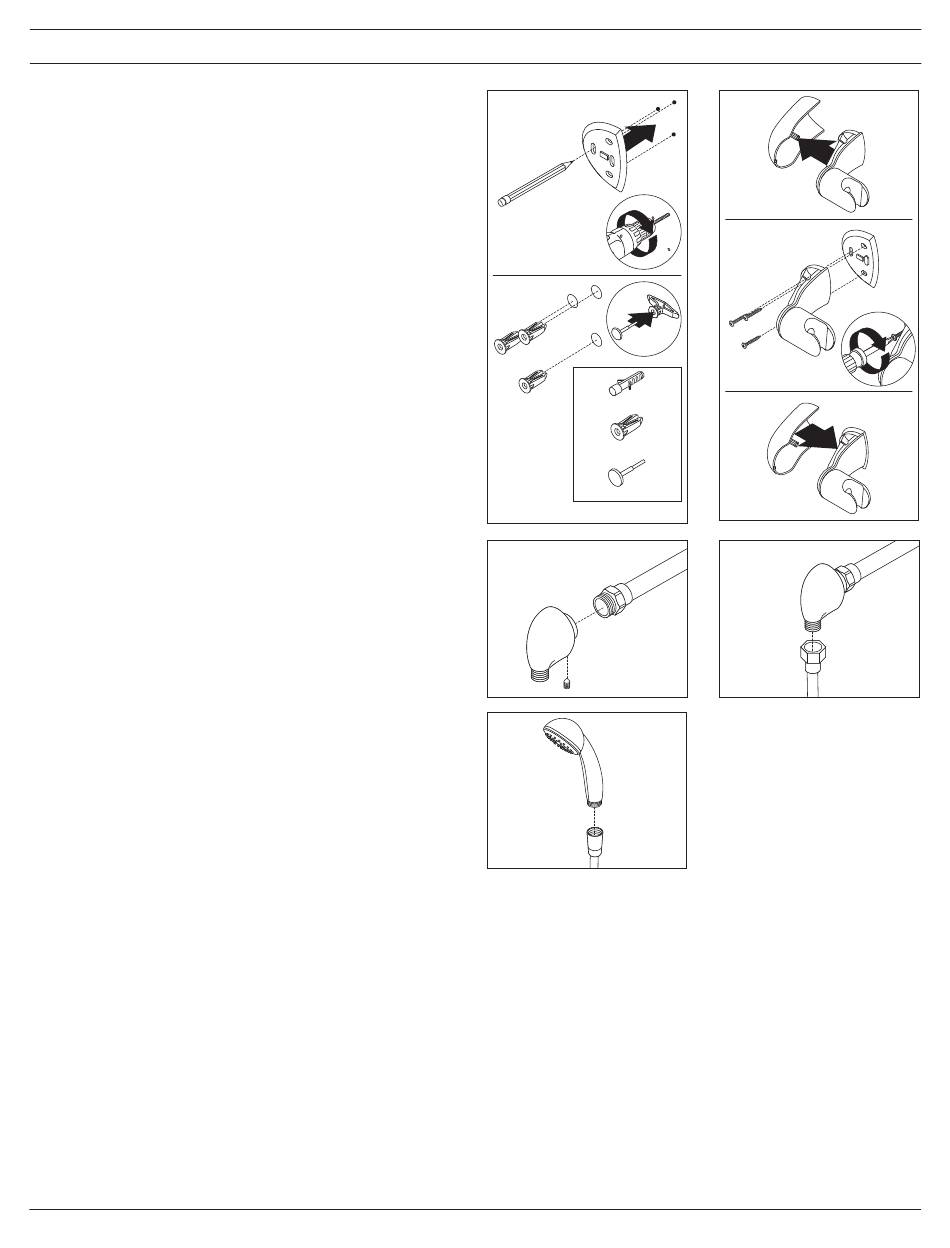

FIGURE 11.1
1
3
4
TILE ANCHOR
DRY WALL ANCHOR
ANCHOR TOOL
FIGURE 11.3
FIGURE 11.5
6
1
FIGURE 11.2
2
2
4
FIGURE 11.4
3
