7. Parts Breakdown

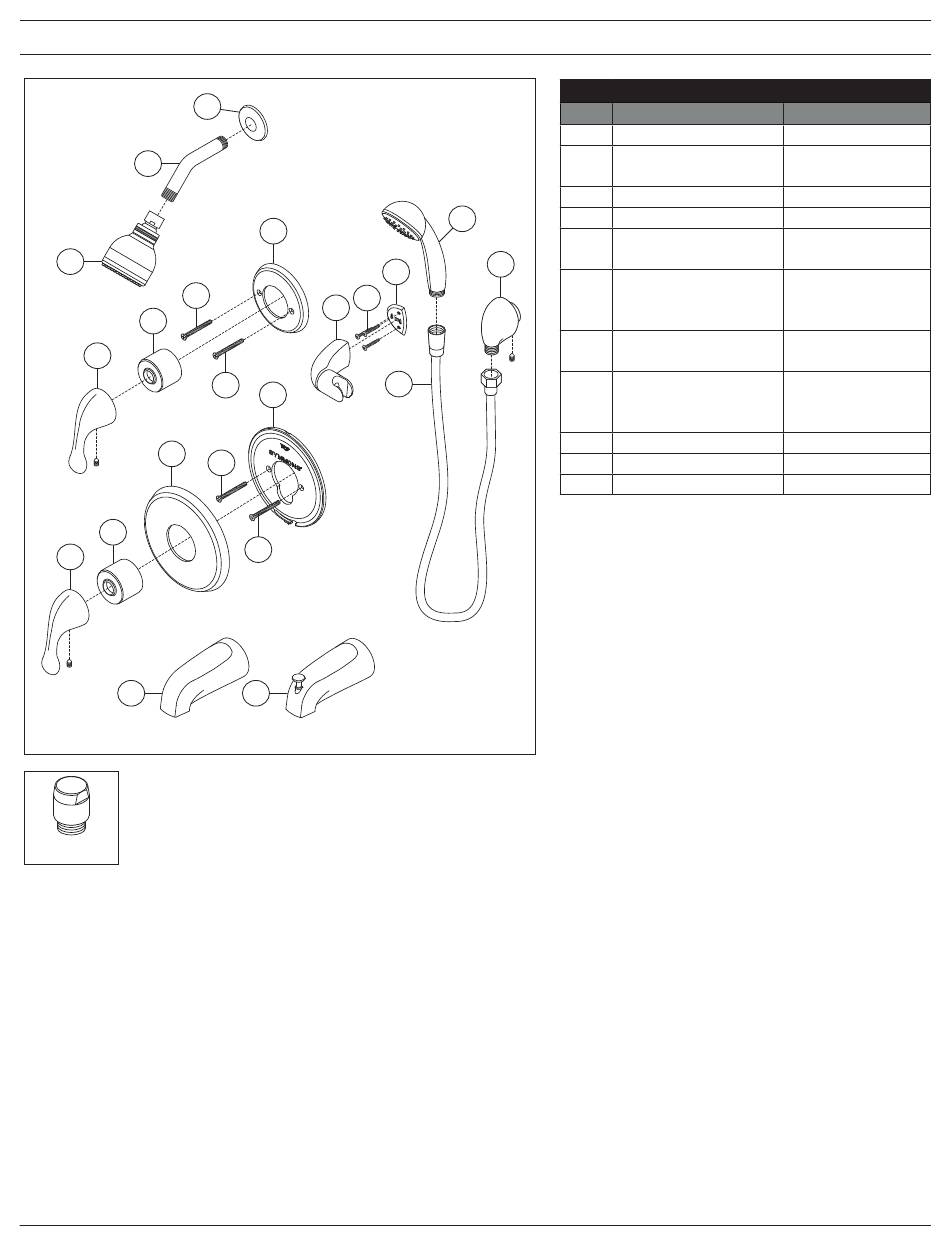

FIGURE 7
C
B
A
F
E
D
H
E
D
K
*Order in-line vacuum breaker (EF-109) for
hand shower systems without dual checks.
EF-109*
G
N
L M
Q
F
J
I
I
K1
Item
A
B
C
D
O
E
Diverter Escutcheon
F
G
P
Shower Escutcheon
H
I
J
K
K1
Diverter Tub Spout
L
M
N
O
P
Q
Notes:
1) Append appropriate suffix for premium finish.
2) Append appropriate flow rate to showerhead
or hand shower for low flow.
3) Apply a bead of silicone around the perimeter
of all shower trim installed flush to the
finished wall. Leave opening on bottom of
escutcheons for weep hole.
4) Apply plumber tape to all threaded
connections.
4
Replacement Parts
Description Part Number
Showerhead
Shower Arm
Flange
Handle Assy.
Dome Cover
96-66-DIV-ESC
Screws
Screws 6600-ESC
Mounting Plate
Tub Spout
Wall Cradle
Screws
Mounting Plate
Hand Shower
Wall Elbow
60" Hose
4-141
300S
RTS-064
T-19
060
054
EF-106
EF-100
EF-105
RTS-045
