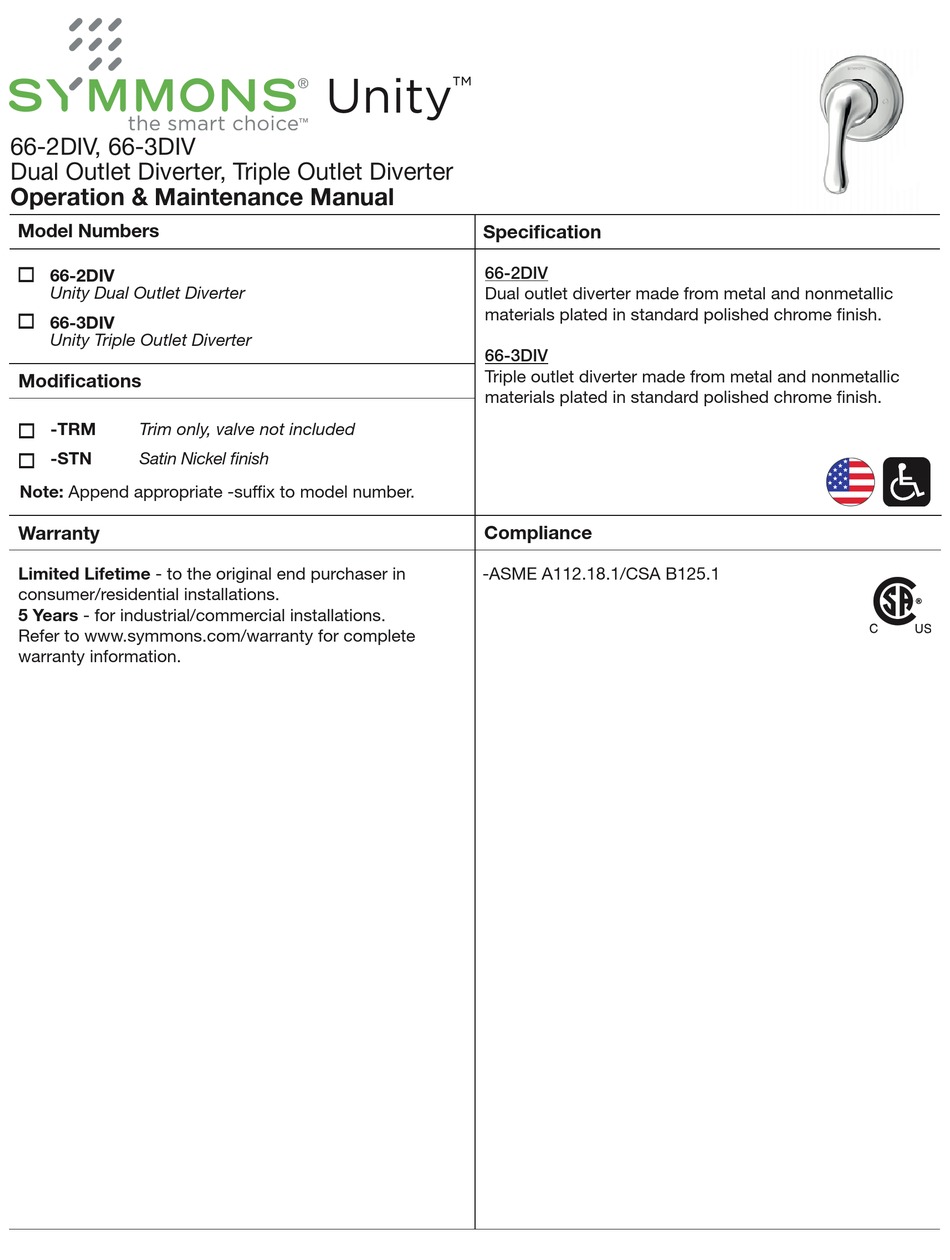

66-2DIV, 66-3DIV
Dual Outlet Diverter, Triple Outlet Diverter
Operation & Maintenance Manual
Model Numbers
66-2DIV
Unity Dual Outlet Diverter
66-3DIV
Unity Triple Outlet Diverter
Modifications
-TRM
Trim only, valve not included
-STN
Satin Nickel finish
Note: Append appropriate -suffix to model number.
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Unity
™
Specification
66-2DIV
Dual outlet diverter made from metal and nonmetallic
materials plated in standard polished chrome finish.
66-3DIV
Triple outlet diverter made from metal and nonmetallic
materials plated in standard polished chrome finish.
Compliance
-ASME A112.18.1/CSA B125.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Unity 66-2DIV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Symmons Unity 66-2DIV

Summary of Contents for Symmons Unity 66-2DIV

  • Page 1 Satin Nickel finish  Note: Append appropriate -suffix to model number. Warranty Compliance Limited Lifetime - to the original end purchaser in -ASME A112.18.1/CSA B125.1 consumer/residential installations. 5 Years - for industrial/commercial installations. Refer to www.symmons.com/warranty for complete warranty information.
  • Page 2 Dimensions Measurements 3 3/4”, 95 mm Diverter Valve Hole Size Min. Ø 3”, 76 mm Max. Ø 3 1/4”, 83 mm 3 1/2”, 89 mm 3 1/8”, 79 mm Ø 4 1/4”, 108 mm 3 1/2”, 89 mm FLOOR FLOOR Note: Dimensions subject to change without notice.

  • Page 3: Parts Breakdown

    Parts Breakdown Replacement Parts Item Description Part Number Handle RTS-064* Assembly Dome Cover T-19* Diverter 96-66-DIV-TRM-KIT* Escutcheon Kit *Note: Append -STN to part number for Satin Nickel finish. Tools Required Allen wrench (1/8”) Phillips head screwdriver Note: Apply a bead of silicone around the perimeter of all Silicone shower trim installed flush to the finished wall.

  • Page 4: Installation

    ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2015 Symmons Industries, Inc. www.symmons.com gethelp@symmons.com ZV-3124 REV 0 070315...
  • Page 5 Nota: Anexar la -terminación apropiada al número de modelo. Garantía Cumplimiento Limitada de por vida: para el comprador original del -ASME A112.18.1/CSA B125.1 producto en instalaciones del consumidor/residenciales. 5 años - para instalaciones industriales y comerciales. Visite www.symmons.com/warranty para obtener la información completa sobre la garantía.
  • Page 6 Dimensiones Medidas 3 3/4”, 95 mm Tamaño de los orificios de la válvula de desvío Mín. Ø 3”, 76 mm Máx. Ø 3 1/4”, 83 mm 3 1/2”, 89 mm 3 1/8”, 79 mm Ø 4 1/4”, 108 mm 3 1/2”, 89 mm Nota: Las dimensiones pueden cambiar sin previo aviso.

  • Page 7: Herramientas Requeridas

    Desglose de piezas Repuestos Artí- Descripción Número de pieza culo Conjunto de RTS-064* la manija Cubierta del T-19* domo Kit de placa Decorativa del 96-66-DIV-TRM-KIT* desviador *Nota: Anexar -STN al número de pieza para el aca- bado de níquel satinado. Herramientas requeridas Llave Allen (1/8”) Destornillador Phillips...

  • Page 8: Instalación

    ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Teléfono: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2015 Symmons Industries, Inc. www.symmons.com gethelp@symmons.com ZV-3124 REV 0 070315...
  • Page 9 Garantie Conformité À vie limitée - à l’acheteur final original dans -ASME A112.18.1/CSA B125.1 les installations chez le client/résidentiel. 5 ans – pour des installations commerciales et industrielles. Se reporter au site www.symmons.com/warranty (en anglais) pour de l’information concernant la garantie.
  • Page 10 Dimensions Mesures 3 3/4 po, 95 mm Taille de trou de la vanne de dérivation Min. Ø 3 po, 76 mm Max. Ø 3 1/4 po, 83 mm 3 1/2 po, 89 mm 3 1/8 po, 79 mm Ø 4 1/4 po, 108 mm 3 1/2 po, 89 mm Remarque : Les dimensions sont sujettes à changer sans préavis.

  • Page 11: Liste Des Pièces

    Liste des pièces Pièces de remplacement Description Numéro de pièce ticle Assemblage RTS-064* De la poignée Couvercle en T-19* dôme Organe de dérivation 96-66-DIV-TRM-KIT* Ensemble de la rosace *Remarque : Juxtaposer le -STN au numéro de pièce pour le fini Nickel satiné. Outils requis Clef Allen (1/8 po) Tournevis à...
  • Page 12 ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Téléphone : (800) 796-6667 Télécopieur : (800) 961-9621 ■ ■ ■ ■ Copyright © 2015 Symmons Industries, Inc. www.symmons.com gethelp@symmons.com ZV-3124 REV 0 070315...
