Instructions For Models
Instructions For Models:

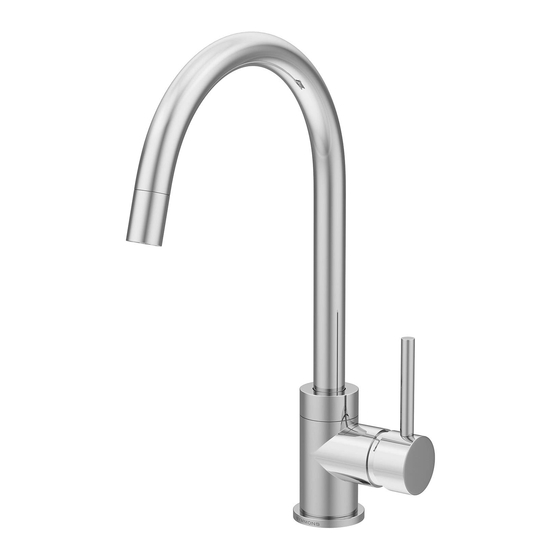

SPP-3510 & SPP-3510-STN
HELP LINE
Need Help?
Symmons customer service:
(800) 796-6667, (781) 848-2250
customerservice@symmons.com
Mon - Fri 7:30 am - 7:00 pm EST
Website:www.symmons.com
What You Need To Have
Tools
Adjustable Wrench
Pliers
Pipe Wrench
Phillips Head Screwdriver
Teflon Tape
Your new kitchen faucet is designed for years of trouble-free
performance.
Keep it looking new by cleaning it periodically with a soft cloth.
Avoid abrasive cleaners, steel wool and harsh chemicals as
these will dull the finish and void your warranty.
If you use soldering for the installation of your faucet, the seat
cartridges and washers will have to be removed before using
flame. Otherwise, warranty will be void on these parts.
Protect your eyes with safety glasses when cutting or soldering
water supply line.
Cover your drain to avoid loosing parts.
Prior to beginning installation, turn off the cold and hot water lines
and open the old faucet to release built-up pressure.
When installing your new faucet, turn the connector nuts hand
tight, then use one wrench to anchor the fitting and a second
wrench to tighten the nut one additional turn. Connections that
are too tight will reduce the integrity of the system.
Wrap all threaded connections with Teflon tape available at your
local hardware or plumbing supply store. Always wrap in a clock-
wise direction.
Page 1
Maintenance
Safety Tips
Important Points
ZV-1083
Rev G
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Symmons SPP-3510
Summary of Contents for Symmons SPP-3510
- Page 1 Pliers Instructions For Models Instructions For Models: Pipe Wrench Phillips Head Screwdriver SPP-3510 & SPP-3510-STN Teflon Tape Maintenance Your new kitchen faucet is designed for years of trouble-free performance. Keep it looking new by cleaning it periodically with a soft cloth.
- Page 2 Attach Spout to Valve Feed hose assembly through spout and hub. Attach sprayer to end of hose to keep hose in place. Rotate spout assembly to ensure smooth operation. Things You May Need All installations can vary depending on how your previous faucet was installed.
- Page 3 Install rubber washer, metal washer and nut onto the Connect to water supplies (HOOK-UPS NOT PROVIDED) mounting shank. Note: Refer to local plumbing codes for permissible types of water supply connectors. Hose Installation Faucet Operation and Inspection Turn on hot and cold water supplies. Pull the hose Align block (1) onto hose.
- Page 4 RK-004 RK-004-STN RK-007 RK-022 RO-006 (2.2 gpm, 8.3 L/min) RK-003 RO-007 (1.5 gpm, 5.7 L/min) RO-008 (1.0 gpm, 3.8 L/min) RK-001 RK-002 RK-002-STN RK-014 RL-032 RK-005 RL-032-STN (optional) RK-006 RK-014 Page 4...
