Recommended Tools; Dimensions - Symmons Unity Trim Series Installation & Operation Instructions

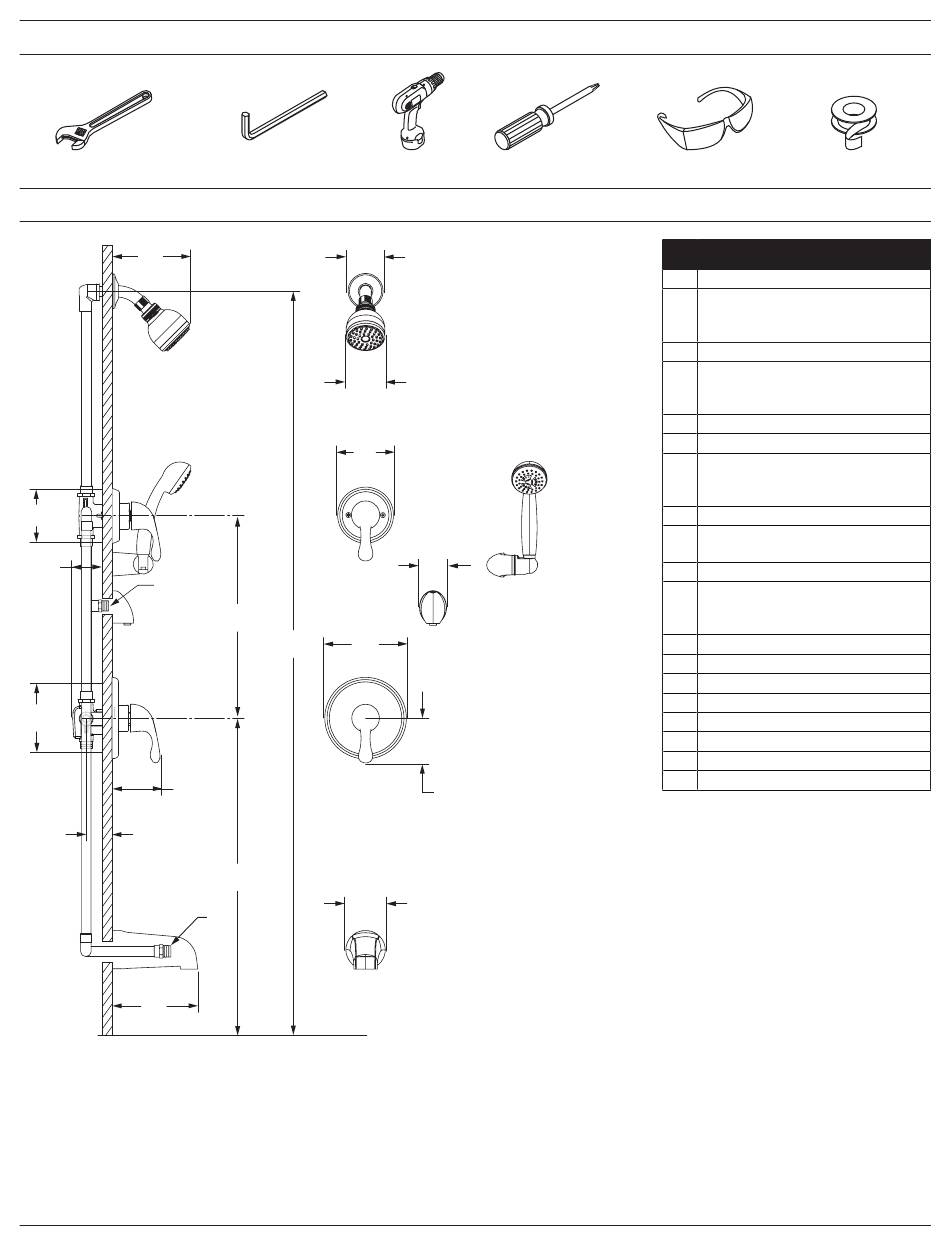

1. Recommended Tools

FIGURE 1
Adjustable Wrench

2. Dimensions

FIGURE 2 A A
B B
C C
D D
G G
H H
I I
L L
Notes:
1) Valve body and piping not included and shown as reference only.
2) Plaster shield (p/n T-176) for dry wall, plaster or other type walls 1/2" or greater.
3) All dimensions measured from nominal rough-in (see I as reference).
4) Dimensions subject to change without notice.
Allen Wrench (3mm)
M M
N N
O O
P P
E E
Q Q
F F
J J
S S
K K
FLOOR FLOOR
Drill Phillips Screwdriver
R R
2
Safety Glasses Thread Seal Tape
Measurements
A 6-3/8", 162 mm
Diverter Valve Hole Size
B Min. Ø 3", 76 mm
Max. Ø 3-1/4", 83 mm
C 3-1/2", 89 mm
Male 1/2" NPT fitting must
D be recessed 1/4" from
finished wall
E Ref. 10", 254 mm
F Ref. 77", 1956 mm
Shower Valve Hole Size
G Min. Ø 3", 76 mm
Max. Ø 4", 102 mm
H 3-3/4", 95 mm
Rough-in
I
2-3/8" ± 1/2", 60 mm ± 13 mm
J Ref. 32", 813 mm
Male 1/2" NPT fitting must
K protrude 4" from
finished wall
L 5-1/2", 140 mm
M Ø 2-1/2", 64 mm
N Ø 2-3/4", 70 mm
O Ø 4-1/4", 108 mm
P 2-1/8", 54 mm
Q Ø 6-3/8", 162 mm
R 3-1/2", 89 mm
S Ø 2-1/2", 64 mm
