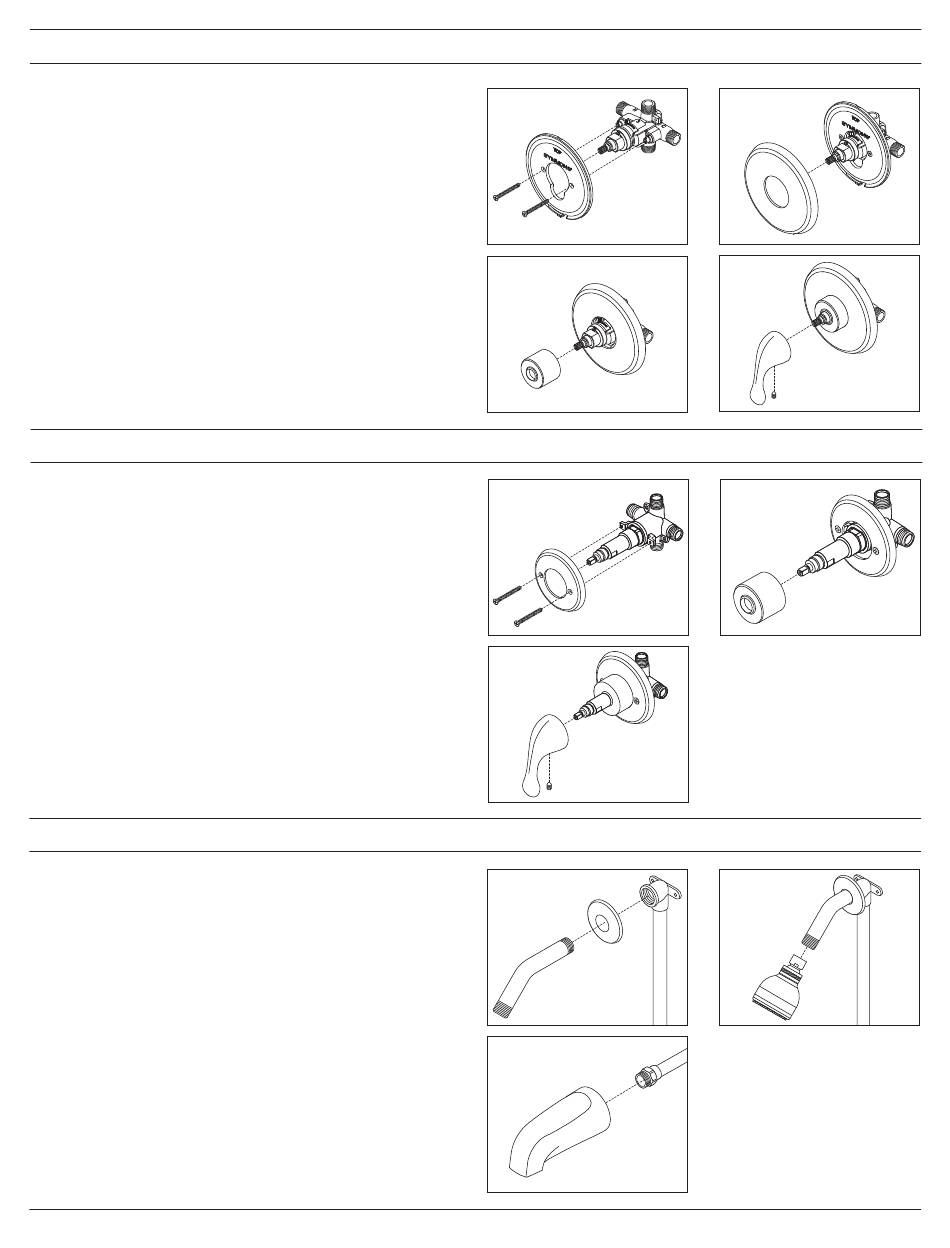

8. Installation - Shower Valve Trim
1) Secure large mounting plate to Temptrol
pressure balancing valve using mounting screws
(FIGURE 8.1).
2) Secure large shower escutcheon to mounting plate.
Tabs should snap in place (FIGURE 8.2).
3) Install dome cover by turning clockwise (FIGURE 8.3).
4) Install handle to shower valve. Secure with set screw
(FIGURE 8.4).
9. Installation - Diverter Valve Trim
1) Secure small diverter escutcheon to Symmons diverter
valve using mounting screws (FIGURE 9.1).
2) Install dome cover by turning clockwise (FIGURE 9.2).
3) Install handle to diverter valve. Secure with set screw
(FIGURE 9.3).
10. Installation - Showerhead & Tub Spout
1) Attach arm and flange to shower pipe. Turn clockwise
to tighten (FIGURE 10.1).
2) Install showerhead to shower arm. Turn clockwise to
tighten (FIGURE 10.2).
3) Install tub spout to stub out pipe. Turn clockwise to
tighten (FIGURE 10.3).
FIGURE 8.1
FIGURE 8.3
FIGURE 9.1
FIGURE 9.3
FIGURE 10.1
FIGURE 10.3
5
FIGURE 8.2
FIGURE 8.4
FIGURE 9.2
FIGURE 10.2
