Naru Trim Series
Naru Trim Series with TA-10 Flow Control Spindle & T-12A Cap Assembly
Installation & Operation Instructions
Model Numbers
TRIM ONLY
4100-TRM
Shower Valve Trim
4101-TRM
Shower Trim
4103-TRM
Hand Shower Trim
4105-TRM
Shower/Hand Shower Trim
4106-TRM

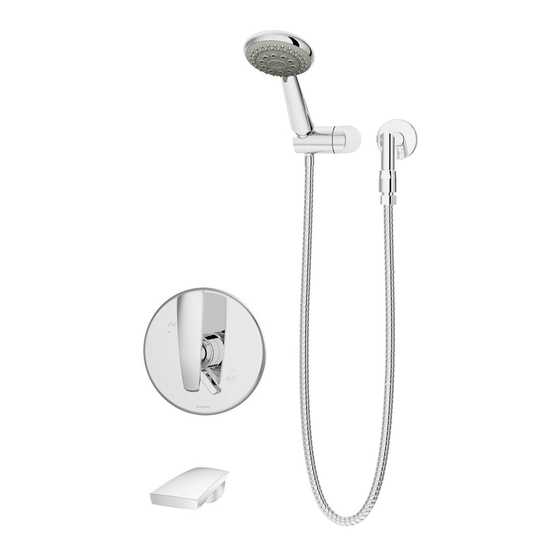

Tub/Shower/Hand Shower Trim
Compliance
•
ASME A112.18.1/CSA B125.1
Warranty
Limited Lifetime - to the original end purchaser in consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete warranty information.
Go to www.symmons.com/register to register your Symmons product.
Naru
®
TRIM, TA-10, T-12A
4100TRMTC
Shower Valve Trim
4101TRMTC
Shower Trim
4103TRMTC
Hand Shower Trim
4105TRMTC
Shower/Hand Shower Trim
4106TRMTC
Tub/Shower/Hand Shower Trim
T-12A
TA-10
4100-TRM
4100TRMTC
4103-TRM
4105-TRM
4103TRMTC
4105TRMTC
4101-TRM
4101TRMTC
4106-TRM
4106TRMTC
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Symmons Naru Trim Series
Summary of Contents for Symmons Naru Trim Series
- Page 1 Naru ® Naru Trim Series Naru Trim Series with TA-10 Flow Control Spindle & T-12A Cap Assembly Installation & Operation Instructions Model Numbers TRIM ONLY TRIM, TA-10, T-12A 4100-TRM 4100TRMTC Shower Valve Trim Shower Valve Trim 4101-TRM 4101TRMTC Shower Trim...
- Page 2 1. Recommended Tools FIGURE 1 Adjustable Wrench Allen Wrench (3mm) Drill Phillips Screwdriver Safety Glasses Thread Seal Tape 2. Dimensions Measurements FIGURE 2 Ø 2-1/4", 57 mm 8-1/4", 210 mm Ø 2-1/4", 57 mm Female 1/2" IPS thread must be recessed 7/8"...
- Page 3 3. Parts Breakdown (Model Numbers Ending in TRMTC) Replacement Parts LIMIT STOP Item Description Part Number SCREW Cap Assy. T-12A Flow Control Spindle TA-10 IMPORTANT: Model numbers ending in TRMTC coordinate with Temptrol pressure balancing valves ordered with Test Cap. The Test Cap is used to allow pressurization of system.
- Page 4 7. Parts Breakdown Replacement Parts FIGURE 7 Item Description Part Number Showerhead 412SH Shower Arm Flange Diverter Handle LLD-102 Diverter Dome Cover LLD-101 Diverter Escutcheon Screws T-416A Mounting Plate Shower Handle T-567 Shower Dome Cover T-544 Shower Escutcheon Screws T-273-NS-K002 Mounting Plate Hand Shower 412W...
- Page 5 4) Install handle to shower valve. Secure with set screw (FIGURE 8.4). FIGURE 8.3 FIGURE 8.4 9. Installation - Diverter Valve Trim 1) Secure small mounting plate to Symmons diverter valve FIGURE 9.1 FIGURE 9.2 using mounting screws (FIGURE 9.1). 2) Secure small diverter escutcheon to mounting plate.
- Page 6 11. Installation - Slide Bar Assembly 1) Press tab to remove mounting plate from cradle mount FIGURE 11.1 FIGURE 11.2 cover (FIGURE 11.1). Note: Mounting plate center tabs must be horizontal for removal. 2) Place mounting plate in position, mark and drill 3/16" holes into drywall.
- Page 7 12. Operation (Temperature Control) 1) Turn shower handle counter-clockwise FIGURE 12.1 FIGURE 12.2 FIGURE 12.3 approximately 1/4 turn to put valve in cold position (FIGURE 12.1). 2) Turn shower handle counter- clockwise approximately 1/2 turn to put valve in warm position (FIGURE 12.2). 3) Turn shower handle counter- clockwise approximately 3/4 turn to put valve in hot position (FIGURE 12.3).
- Page 8 For more information, go to www.P65Warnings.ca.gov. ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2019 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3296 REV A 062819...
