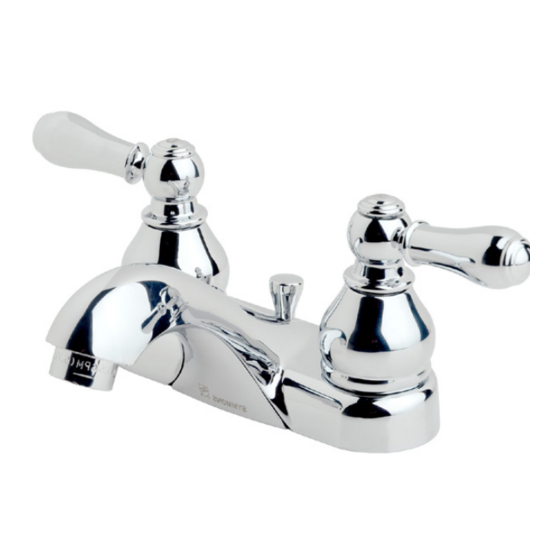

Symmons Allura Series Installation And Service Instructions

Lavatory Faucet
Installation and Service Instructions
Model Numbers
SLC-4712-1.5 (LN-01302)
Lavatory faucet with pop-up drain
Alternate Finish Code
append to part numbers when applicable
-STN Satin Nickel
Chrome (standard)
--

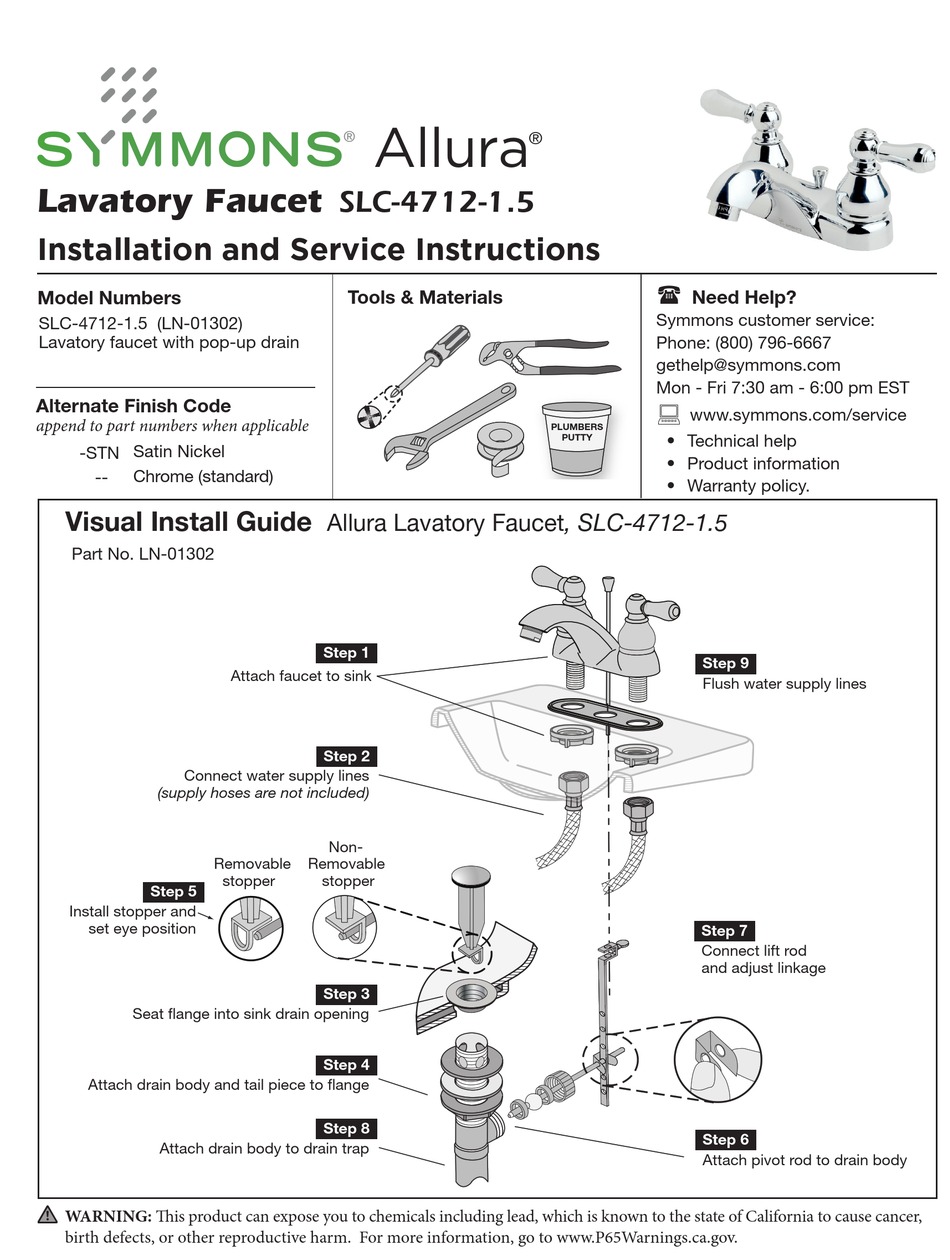

Visual Install Guide
Part No. LN-01302
Connect water supply lines
(supply hoses are not included)
Removable
Step 5
Install stopper and
set eye position
Seat ange into sink drain opening
Attach drain body and tail piece to ange
Attach drain body to drain trap
WARNING: This product can expose you to chemicals including lead, which is known to the state of California to cause cancer,
birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Allura
SLC-4712-1.5
Tools & Materials
Allura Lavatory Faucet, SLC-4712-1.5
Step 1
Step 1
Attach faucet to sink
Step 2
Non-
Removable
stopper stopper
Step 3
Step 4
Step 8
®

Need Help?
Symmons customer service:
Phone: (800) 796-6667
gethelp@symmons.com
Mon - Fri 7:30 am - 6:00 pm EST

www.symmons.com/service
PLUMBERS
• Technical help
PUTTY
• Product information
• Warranty policy.
Step 9
Flush water supply lines
Step 7
Connect lift rod
and adjust linkage
Step 6
Attach pivot rod to drain body
